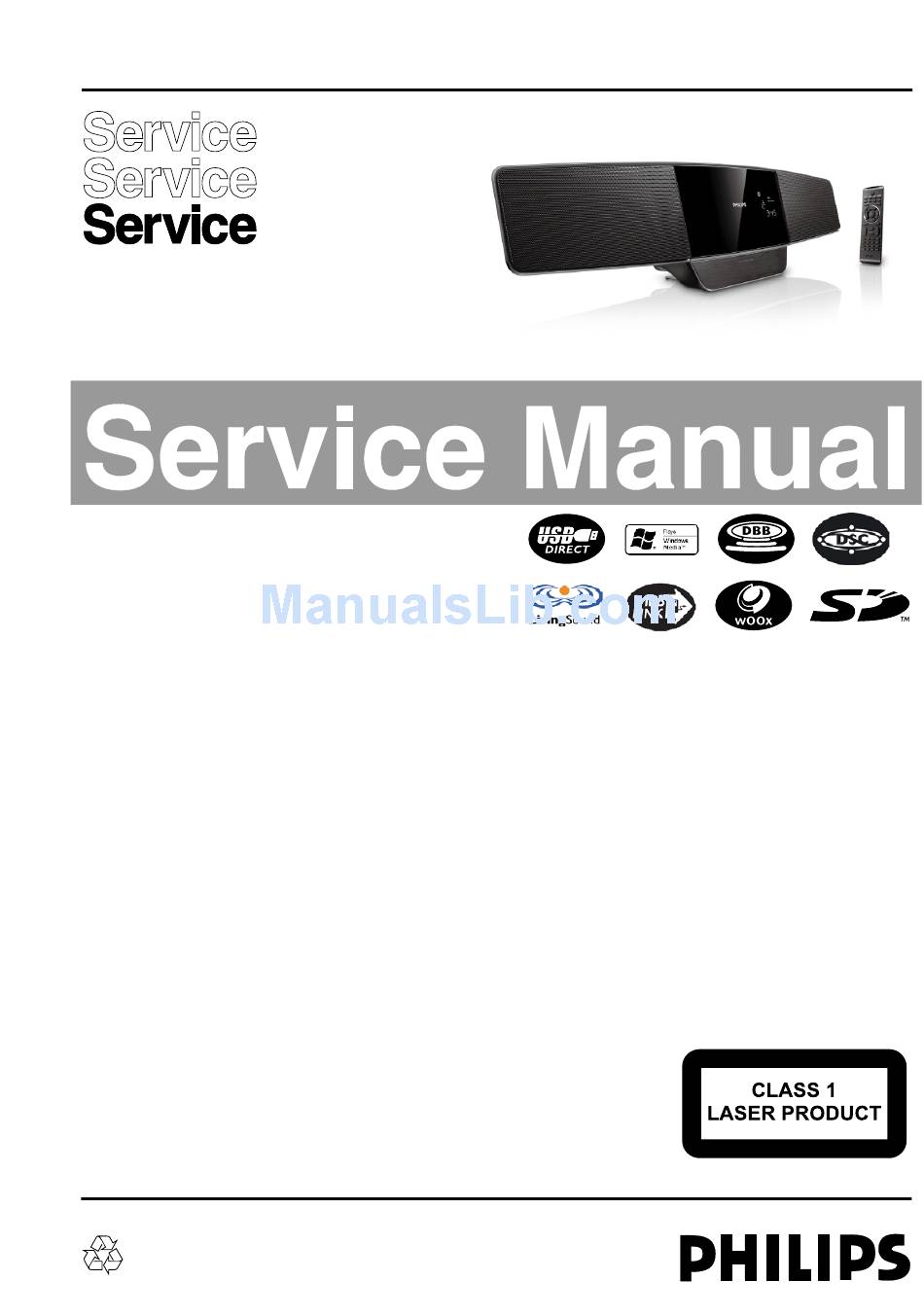

Philips MCM330 Service Manual
Hide thumbs Also See for MCM330:

Advertisement

Quick Links

Micro Hi-Fi System
CONTENTS
Technical specification ..................................................................1-2
Version variation............................................................................1-2
Service measurement setup..........................................................1-3
Service aids .................................................................................1-4
Instructions on CD playability ...............................................2-1.. 2-2
Disassembly diagram............ ........................................................5-1
Circuit diagram ..................................................................6-1..6-3
Layout diagram ..................................................................6-4..6-5
CD board
Circuit diagram .........................................................................7-1
Layout diagram ..................................................................7-2..7-3
Display board
Circuit diagram .........................................................................8-1
Layout diagram ..................................................................8-2..8-3
©
Copyright 2009 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system or transmitted, in any form or by any means, electronic, mechanical, photocopying,
or otherwise without the prior permission of Philips.
Published by LX 0915 Service Audio
Version 1.1
Subject to modification
Circuit diagram .........................................................................9-1
Layout diagram ..................................................................9-2..9-3
Circuit diagram .......................................................................10-1
Layout diagram .......................................................................10-2
Exploded view diagram ............................................................... 11-1
Mechanical parts list .................................................................... 11-2
Electrical parts list...............................................................12-1..12-2
MCM330
-/12
3141 785 33951

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCM330 and is the answer not in the manual?

Questions and answers

Summary of Contents for Philips MCM330

  • Page 1: Table Of Contents

    Layout diagram ..............8-2..8-3 © Copyright 2009 Philips Consumer Electronics B.V. Eindhoven, The Netherlands All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips.
  • Page 2: Technical Specification

    Semiconductor adaptor) 50/60Hz, 1.5A Max.; Disc diameter 12cm/8cm Output: 18V Support disc CD-DA, CD-R, CD-RW, 2.5A; Brand name: MP3-CD, WMA-CD Philips; Model: OH- Audio DAC 24Bits / 44.1kHz 1048B1802500U-VDE Total harmonic <1.5% Operation Power distortion Consumption Frequency 60Hz -16kHz (44.1kHz) Standby Power <2W...
  • Page 3: Measurement Setup

    MEASUREMENT SETUP Tuner FM Bandpass LF Voltmeter 250Hz-15kHz e.g. PM2534 e.g. 7122 707 48001 RF Generator e.g. PM5326 S/N and distortion meter e.g. Sound Technology ST1700B Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance from the pilottone (19kHz, 38kHz). Tuner AM (MW,LW) Bandpass LF Voltmeter...
  • Page 4: Service Aids

    SERVICE AIDS WARNING All ICs and many other semi-conductors are susceptible to electrostatic discharges (ESD). Careless handling during repair can reduce life drastically. When repairing, make sure that you are connected with the same potential as the mass of the set via a wrist wrap with resistance. Keep components and tools also at this potential.
  • Page 5: Instructions On Cd Playability

    2 - 1 INSTRUCTIONS ON CD PLAYABILITY Customer complaint "CD related problem" Set remains closed! check playability playability ok ? For flap loaders (= access to CD drive possible) "fast" lens cleaning cleaning method is recommended check playability playability ok ? Play a CD for at least 10 minutes check playability...
  • Page 6 2 - 2 INSTRUCTIONS ON CD PLAYABILITY PLAYABILITY CHECK LIQUID LENS CLEANING Before touching the lens it is advised to clean the surface of the lens by blowing clean air over it. For sets which are compatible with CD-RW discs This to avoid that little particles make scratches on use CD-RW Printed Audio Disc ....7104 099 96611 the lens.
  • Page 7: Set Block Diagram

    SET BLOCK DIAGRAM CD PCB PICK-UP MECHA SANYO : DA23Z1 4 CH ROHM MOTOR DRIVER RF AMP+SSP+DSP AC ADAPTER (BA5826) (BU9543) SDRAM 16Mbit MCU PCB MCS LOGIC BX8804 MP3/WMA D/E + MCU +USB NOR FLASH SST39VF400A KEY PCB SD/USB Device SOUND CONTROL KEY Function SW+VOL+EQ...
  • Page 8: Set Wiring Diagram

    SET WIRING DIAGRAM KEY BOARD VFD BOARD MOTOR SWITCH BOARD CON3 IR BOARD CN401 CN402 MCU BOARD CN804 CN807 CN01 CD BOARD CDM CONNECT BOARD CON6 POWER BOARD CON4 DC JACK BOARD CON3...
  • Page 10 CIRCUIT DIAGRAM - POWER BOARD PART1...
  • Page 11 CIRCUIT DIAGRAM - POWER BOARD PART2...
  • Page 12 CIRCUIT DIAGRAM - POWER BOARD PART3...
  • Page 13 LAYOUT DIAGRAM - POWER BOARD TOP SIDE...
  • Page 14 LAYOUT DIAGRAM - POWER BOARD BOTTOM SIDE...
  • Page 15: Circuit Diagram

    CIRCUIT DIAGRAM - CD BOARD...
  • Page 16: Layout Diagram

    LAYOUT DIAGRAM - CD BOARD TOP SIDE...
  • Page 17 LAYOUT DIAGRAM - CD BOARD BOTTOM SIDE...
  • Page 18 CIRCUIT DIAGRAM - DISPLAY (VFD) BOARD...
  • Page 19 LAYOUT DIAGRAM - DISPLAY BOARD TOP SIDE...
  • Page 20 LAYOUT DIAGRAM - DISPLAY BOARD BOTTOM SIDE...
  • Page 21 CIRCUIT DIAGRAM -MCU BOARD...
  • Page 22 LAYOUT DIAGRAM - MCU BOARD TOP SIDE...
  • Page 23 LAYOUT DIAGRAM - MCU BOARD BOTTOM SIDE...
  • Page 24 10-1 10-1 CIRCUIT DIAGRAM - KEY BOARD AND SOME SMALL BOARD KEY PART HD OUTPUT PART USB PART SD PART...
  • Page 25 10-2 10-2 LAYOUT DIAGRAM - KAY BOARD AND SOME SMALL BOARD...
  • Page 26: Exploded View Diagram

    11-1 11-1 SET EXPLODED VIEW DIAGRAM...
  • Page 27: Mechanical Partslist

    11 - 2 MECHANICAL PARTSLIST 994000002822 CD MECHANISM DA23Z1 996510023933 USB SPRING 996510023968 MOVE PANEL 996510023969 FRONT PANEL 996510023916 REAR HOUSING 996510023938 MOVE UP HOLDER 996510023935 MOVE DOWN HOLDER 996510023926 DOUBLE CD HOLDER 996510023903 CD TRAY 996510023907 ROLLER HOLDER 996510023937 TRACK UP 996510023936 TRACK DOWN...
  • Page 28: Electrical Partslist

    12 - 1 ELECTRICAL PARTSLIST POWER BOARD ASSEMBLY 994000000245 BAND PASS FILTER 996510023922 CHIP FERRITE BEAD 1800 +-25% 996510023922 CHIP FERRITE BEAD 1800 +-25% 996510023922 CHIP FERRITE BEAD 1800 +-25% 996510023922 CHIP FERRITE BEAD 1800 +-25% L901 996510023922 CHIP FERRITE BEAD 1800 +-25% Q902 996510023918 SMD TRANSISTORS AOD413...
  • Page 29 12 - 2 ELECTRICAL PARTSLIST MCU BOARD ASSEMBLY IC601 996510020772 IC SI636165TS IC603 996510021319 IC BX8804 IC605 996510020761 IC XC6206P122PR 1.2V IC607 996510020771 IC SST39VF800A J600 996510023917 FLAT PIN 2mm 26P L=8mm J601 996510023917 FLAT PIN 2mm 26P L=8mm X600 996510008326 CRYSTAL 12 MHzHC-49/US H=3.5mm CD BOARD ASSEMBLY...
