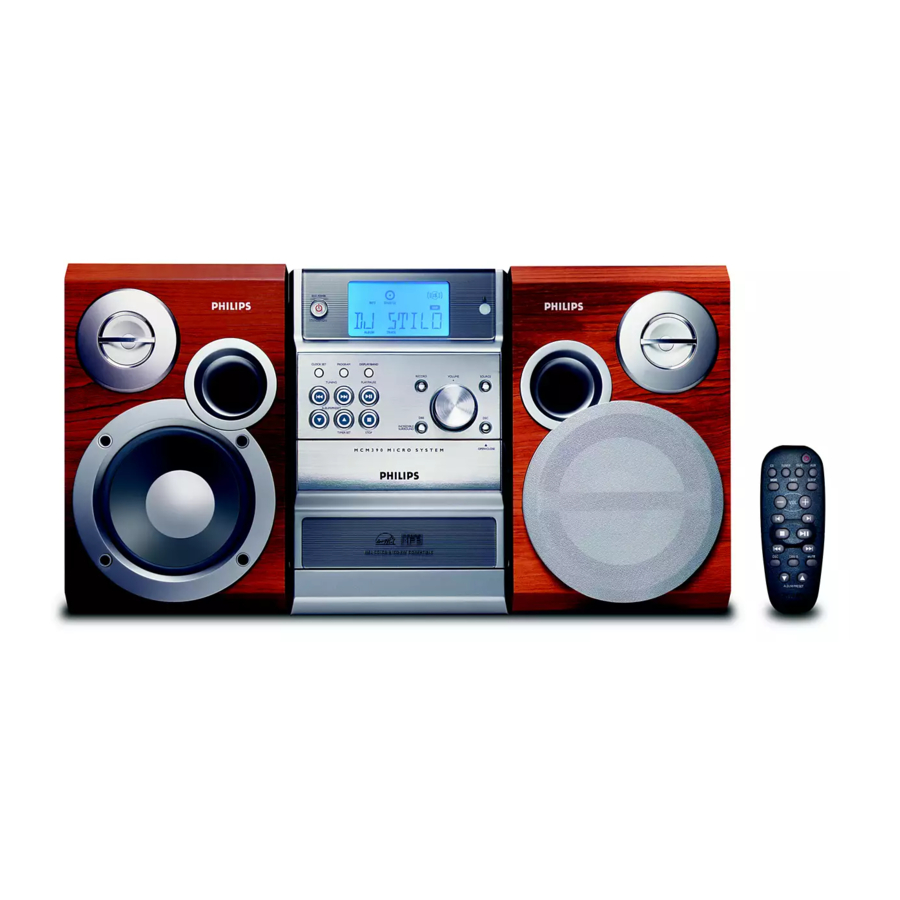

Micro Hi-Fi System
User manual
Manuel d'utilisation
Manual del usuario
THANK YOU FOR CHOOSING PHILIPS!
NEED HELP FAST?
Read your Quick-Use guide and/or owner's manual first for quick tips
that make using your Philips product more enjoyable. If you have read
your instructions and still need assistance,
you may access our online help at
1-888-PHILIPS(744-5477)
or call
product.
www.usasupport.philips.com
while with your
MCM390
Advertisement
Table of Contents
Related Manuals for Philips MCM390
Summary of Contents for Philips MCM390
-
Page 1: Manual Del Usuario
THANK YOU FOR CHOOSING PHILIPS! NEED HELP FAST? Read your Quick-Use guide and/or owner's manual first for quick tips that make using your Philips product more enjoyable. If you have read your instructions and still need assistance, you may access our online help at or call product. - Page 2 Canada English: This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications. Français: Cet appareil numérique n'emet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Class B prescrites dans le Règlement sur le Brouillage...
- Page 3 ¡ DISPLAY/BAND ∞ ≤ £ ™ &...
- Page 4 Return your Product Registration Card today to get the very most from your purchase. Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed below, so don't miss out. Complete and return your Product Registration Card at once to ensure:...
- Page 5 “family!” Dear PHILIPS product owner: Thank you for your confidence in PHILIPS. You’ve selected one of the best-built, best-backed products available today. We’ll do every- thing in our power to keep you happy with your purchase for many years to come.
-
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Clean only with a piece of dry cloth. materials Class II equipment symbol This symbol indicates that the unit has a double insulation system... - Page 7 Index English ------------------------------------------------ 8 Français -------------------------------------------- 27 Español --------------------------------------------- 46...
-
Page 8: Table Of Contents
Contents General Information Supplied accessories ... 9 Environmental information ... 9 Safety information ... 9 About MP3 disc ... 9 Preparations Rear connections ... 10–11 Power Antennas connection Speakers connection Optional connection ... 11 Connecting other equipment to your system Inserting batteries into the remote control . -
Page 9: General Information
Supplied accessories – 2 speaker boxes – remote control – AM loop antenna Environmental Information All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet). -
Page 10: Preparations
Preparations Speaker Rear connections The type plate is located at the rear of the system. Power Before connecting the AC power cord to the wall outlet, ensure that all other connections have been made. WARNING! – For optimal performance, use only the original power cable. -
Page 11: Speakers Connection
FM Antenna It is unnecessary to connect the FM pigtail antenna since it is fixed to the main unit. Adjust the FM antenna for optimal FM stereo reception. Speakers Connection Front Speakers Connect the speaker wires to the SPEAKERS terminals, right speaker to "RIGHT" and left speaker to "LEFT", coloured (marked) wire to "+"... -
Page 12: Control
Controls (illustrations on page 3) Controls on the system and remote control Eco Power/STANDBY ON y – to switch the system on or to Eco Power standby mode. Display screen – to view the current status of the system. DISPLAY/BAND for Tuner ... -
Page 13: Basic Functions
DISPLAY/BAND IMPORTANT! Before you operate the system, complete the preparation procedures. Switching the system on Press STANDBY ON 2 or SOURCE. The system will switch to the last selected source. Press CD, TUNER, TAPE or AUX on the remote control. The system will switch to the selected source. -
Page 14: Cd/Mp3-Cd Operations
CD/MP3-CD Operations DISPLAY/BAND IMPORTANT! The lens of the CD player should never be touched. Discs for playback This system is able to play : – All pre-recorded audio CDs – All finalised audio CDR and audio CDRW discs – MP3-CDs (CD-ROMs with MP3 tracks) CD-ROM, CD-I, CDV, VCD, DVD or computer CDs, however, are not possible. -
Page 15: Finding A Passage Within A Track
Finding a passage within a track Press and hold down on S or T ( à á on the remote control). The disc is played at high speed. When you recognize the passage you want, release S or T ( à áon the remote control). -
Page 16: Radio Reception
Radio Reception DISPLAY/BAND Tuning to radio stations Select TUNER source. “TUNER” is displayed briefly. Press DISPLAY/BAND to select the desired waveband : FM or AM. Press down on S or T ( à áon the remote control) and release button. The display will show "SEARCH"... -
Page 17: Tape Operation/Recording
DISPLAY/BAND Tape playback Select TAPE source. The display shows “TAPE TAPE TAPE TAPE” briefly, and the TAPE tape counter 000 displayed. Press OPEN ç to open the tape door. Insert a recorded tape and close the tape door. Load the tape with the open side downward and the full spool to the left. -
Page 18: Preparation For Recording
Tape Operation / Recording Preparation for recording Select TAPE source. Load a recordable tape into tape deck with full spool to the left. Prepare the source to be recorded. CD – load the disc. TUNER – tune to the desired radio station. AUX –... -
Page 19: Clock/Timer
DISPLAY/BAND Clock setting Manual clock setting In standby mode, press and hold CLOCK SET. The clock digits for the hours flash. Adjust VOLUME to set the hours. Press CLOCK SET again. The clock digits for the minutes flash. Adjust VOLUME to set the minutes. Press CLOCK SET to confirm the time. -
Page 20: Specifications
Specifications AMPLIFIER Output power ... 2 x 15 W RMS ... 30 W total power ... 2 x 12 W FTC Signal-to-noise ratio ... ≥ 62 dBA (IEC) Frequency response ... 40 – 15000 Hz, ± 3 dB Impedance loudspeakers ... 4 Ω Impedance headphones ... -
Page 21: Maintenance
Cleaning the disc lens After prolonged use, dirt or dust may accumulate at the disc lens. To ensure good playback quality, clean the disc lens with Philips CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner. - Page 22 Problem Recording or playback cannot be made. “CHK TAPE” is displayed. The tape deck door cannot open. The system does not react when buttons are pressed. Sound cannot be heard or is of poor quality. The left and right sound outputs are reversed.
- Page 23 Philips will repair or replace the product, at its option, at no charge, or pay the labor charges to any Philips authorized repair facility. After the period of one (1) year, Philips will no longer be responsible for charges incurred.
