Wyre Storm MX-0606-PP-POH Quick Start Manual

8x8 HDBaseT Matrix Switcher with HDMI Mirror Outputs,
Bidirectional IR, Routed RS-232 and PoH
MX-0606-PP-POH v1
Fixed Pro Plus chassis featuring PoH HDBaseT out, mirrored HDMI out, HDMI in, IR input transmission card.
Note: The following information applies to version 1 of this product as identified by v1 after the model number on the product label.
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
In the Box
1x MX-0606-PP-POH Matrix Switcher
1x IR Remote Handset
1x IR Receiver (38khz)
6x Wide-band IR Receivers (30-50kHz)
6x IR Emitters
1x 100~240V AC 50/60Hz Power Cord with US Plug
1x 100~240V AC 50/60Hz Power Cord with UK Plug
1x 100~240V AC 50/60Hz Power Cord with EU Plug
2x Mounting Brackets
1x Quickstart Guide (this document)

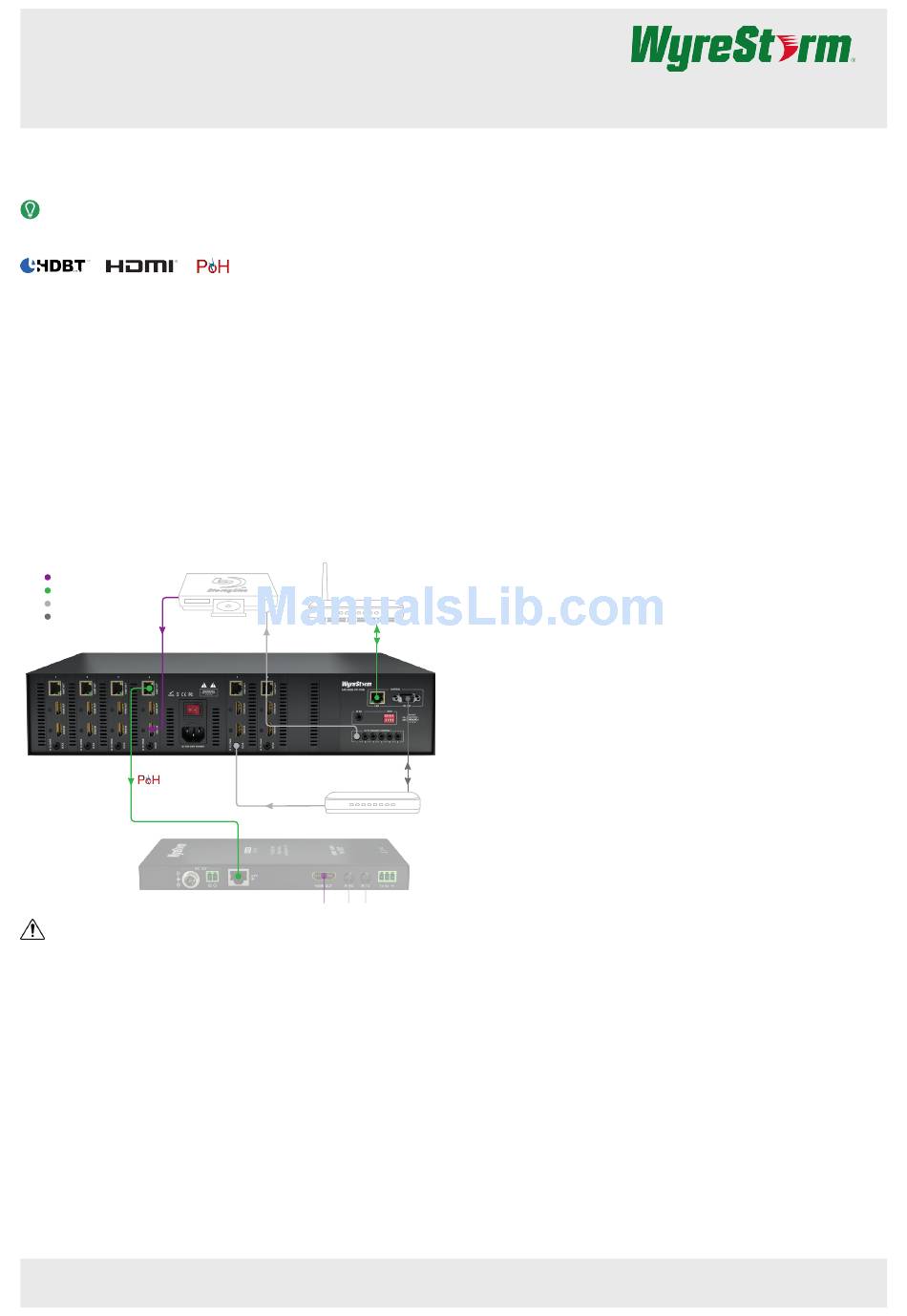

Basic Wiring Diagram
Key
HDMI/Digital Video
HDBaseT/Ethernet
IR
RS-232
MX-0606-PP-POH
RX-70-POH
IMPORTANT!
Disconnecting and connecting (hot plugging) HDMI or HDBaseT while devices
are powered on may cause damage. WyreStorm recommends powering off
devices before disconnecting these connections.
Recommended Products
To take full advantage of the features of this matrix, WyreStorm recommends
the following products be used within the system.
• RX-70-POH – This receiver supports the functions of this matrix. While
others can be used, they may contain features that are not available on this
matrix.
• CAB-IR-LINK – Use this cable when using an IR control system for matrix
control of HDBaseT pass-through.
Copyright © 2016 WyreStorm Technologies |
MX-0606-PP-POH v1 Quickstart Guide | 160815
1080p Source
Router
CAB-IR-LINK (Sold
Separately)
Control System
wyrestorm.com
Additional Information
This Quickstart Guide provides the basic steps for the common uses of this
product. Detailed installation and configuration information may be found in
the download tab located on the product page.
• WebUI Reference Guide – Setup for advanced Matrix features such as IP
and testing of connections
• Drivers and API – Preconfigured drivers for popular control systems and
API document.
Before Beginning
• WyreStorm recommends visiting the product page before installing this
product for updates to this Quickstart Guide as well as other information
about the product.
• Verify that all items are included in the packaging per the
Pre Wire
1. Run a Cat5e/6/6a cable from the matrix location to the receiver location.
See for resolution distance restrictions. Terminate the cable per the
HDMI/HDBaseT Wiring
2. (Optional) If using IR emitters or connecting blocks, run the wire and
terminate per the IR TX (Emitter) Wiring
3. (Optional) If using IR receivers, run the wire and terminate per the
(Receiver) Wiring section.
4. (Optional) If using RS-232 pass-through, run the wire and terminate per
the RS-232 Wiring section.
Installation
1. Connect the output of an HDMI source to an HDMI In on the matrix
using a cable from a high quality brand such as
Repeat for additional sources.
2. Using the cable created in
female plug to the HDBT Out jack on the matrix. Repeat for additional
HDBaseT receivers.
3. (Optional) Using the included IR emitter or the cable created in
step 2, place an IR emitter onto a source device near the device's IR
sensor. Connect the 3.5mm (1/8in) Mono Plug to an IR TX port. Repeat
for additional sources.
4. (Optional) Using the included IR receiver, connect the 3.5mm (1/8in)
Stereo Plug to an IR RX (IR to Zone) port. If using a control system, use
the WyreStorm CAB-IR-LINK
Repeat for additional zones.
5. (Optional) Using an included IR receiver, connect the 3.5mm (1/8in)
Stereo Plug to an IR Ext port. If using a control system, use the
WyreStorm CAB-IR-LINK
6. (Optional) Using the cable created in
DB9 male jack to the RS-232 port on the matrix and the opposite end to
an RS-232 control system.
7. Install HDBaseT receivers (RX-70-POH recommended) following the
instructions provided with the model being installed.
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
1 of 4
Quickstart Guide
In the Box
section.
section.
WyreStorm
Pre Wire step 1, connect the 8-pin RJ-45
or the cable created in Pre Wire
or the cable created in Pre Wire
Pre Wire step 4, connect the 9-pin
support@wyrestorm.com
list.
IR RX
Express.
Pre Wire
step 3.
step 3.
