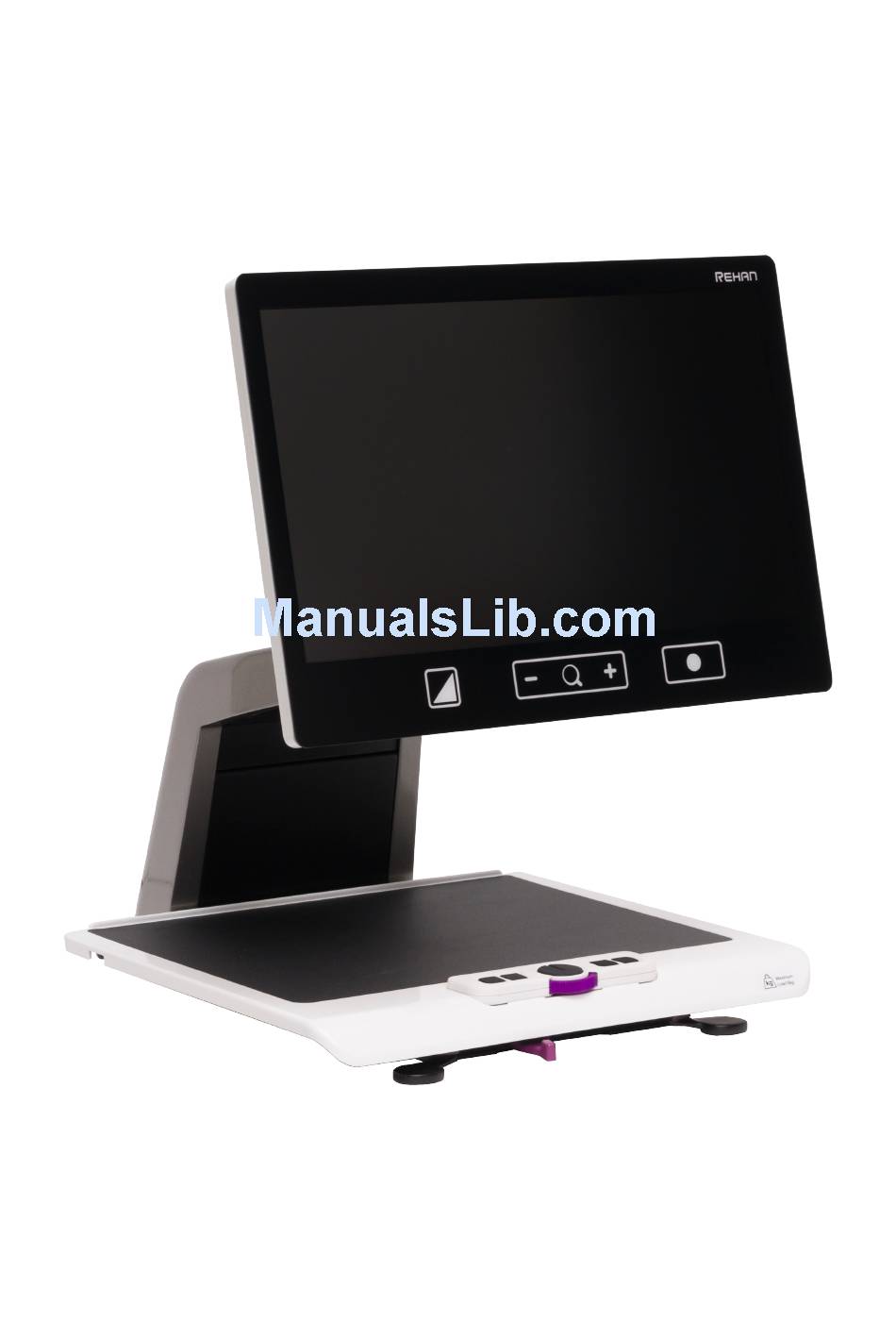

- Page 1 ACUITY BASIC USER MANUAL...
- Page 2 Acuity Basic...
-
Page 3: Table Of Contents
Tableau ..................8 Brake Handle ................8 4 Controls - Remote Control ...............8 5 Advanced Menu ................8 6 Switch Screen (only for Acuity Basic with switch Screen)......10 7 Regulations ..................10 8 WEEE & RoHS Directives ..............10 9 Warranty Information ..............10 10 Technical specifications ..............11... -
Page 4: Introduction
The Acuity Basic will be delivered to you in a pre-assembled state. All you have to do is slide the screen up to your preferred height and connect the adaptor into a wall socket outlet and switch on the device. -
Page 5: Adjust The Height Of The Screen
Adjust the height of the screen The height of the screen can be adjusted by firmly holding the screen on the left and right side, and pulling the screen up or down to your preferred position. Transporting the Acuity If the device needs to be transported it is adviced to transport it in its original packaging in order to avoid any potential damage to the device. -
Page 6: Controls - Screen
The magnification level will be shown on screen. 3.3 Block auto focus By tapping the magnifier icon the device will refocus on your reading material and block the auto focus on that level. Tap a zoom button to unblock the auto focus. Acuity Basic... -
Page 7: Brightness
3.4 Brightness By tapping this icon you can cycle through 5 brightness levels. 3.5 Contrast Swipe and hold Swipe this icon from left to right and hold your finger on the right side of the rounded rectangle to gradually increase the contrast. Swipe this icon from right to left and hold your finger on the left side of the rounded rectangle to gradually decrease the contrast. -
Page 8: Brake Handle
(A) and select which high contrast mode you want available in your Acuity live mode by activating the high contast mode you want acti- vated/deactivated. The second screen shows advanced functions. Acuity Basic... - Page 9 This function is originally off. Factory Reset The factory reset func- tion resets all advanced settings. Rehan Electronics ACuity Software version Ver: X.X Cam: X.X On the third and last page of the advanced settings you will find the installed software version.
-
Page 10: Switch Screen (Only For Acuity Basic With Switch Screen)
RoHS Compliance The Acuity Basic is in compliance with the Restrictions of the use of certain Hazardous Substances (RoHS)Directive. 9 Warranty Information For all queries regarding warranty of your device, please contact your supplier for further information. -
Page 11: Technical Specifications
10 Technical specifications Resolution 1920 x 1080 Video refresh rate 50 Hz or 60 Hz Display size 22 inch (54.6 cm) Full colour ( or high saturation) Photograph Display modes Greyscale These display modes Black - white Black - yellow can be turned off White - black Yellow - blue... - Page 12 REHAN ELECTRONICS Aughrim Road Carnew County Wicklow Ireland www.rehanelectronics.ie...
