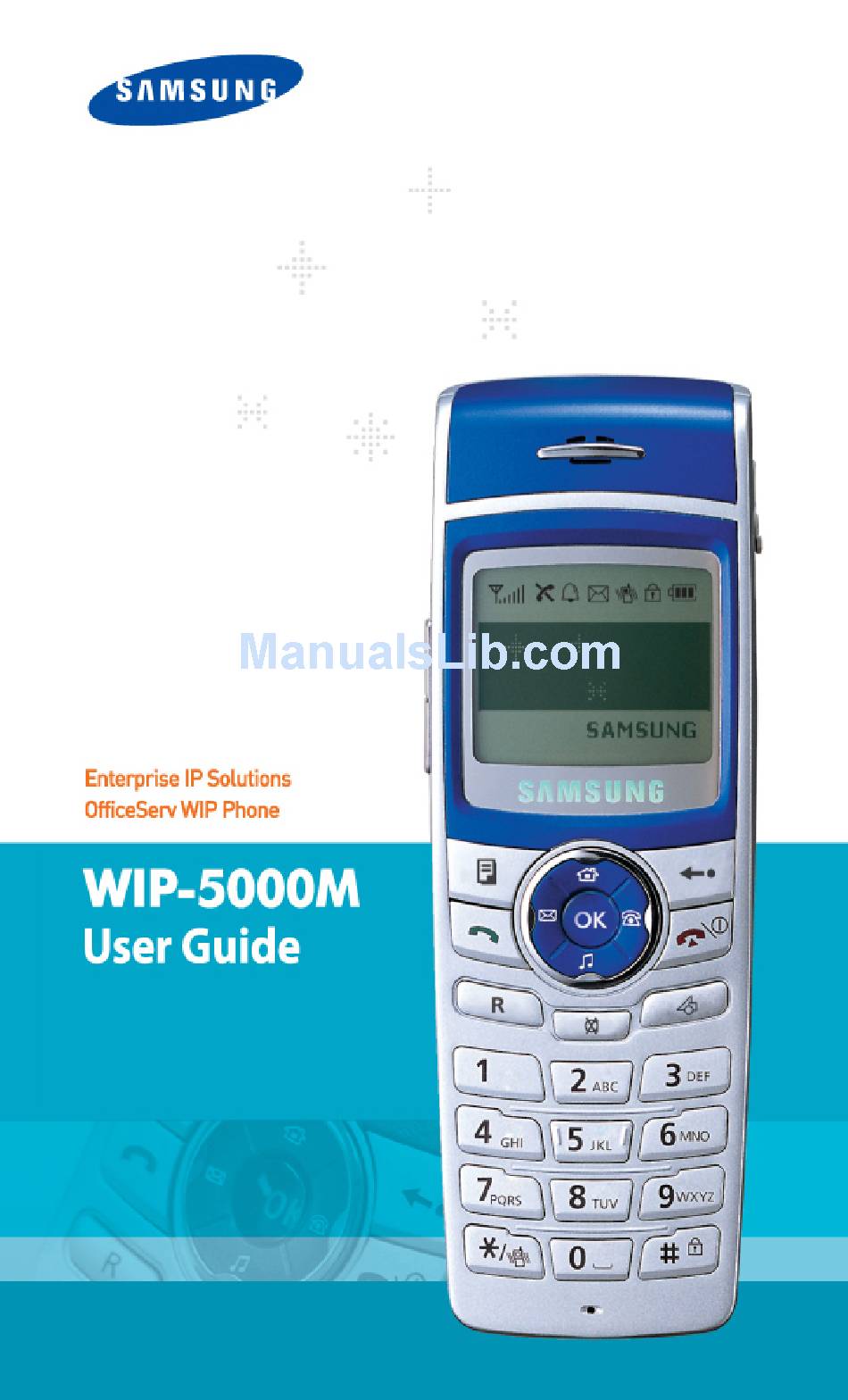

Samsung WIP-5000M User Manual

Hide thumbs Also See for WIP-5000M:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, Instruction Manual

Advertisement

Table of Contents
loading

Related Manuals for Samsung WIP-5000M

Summary of Contents for Samsung WIP-5000M

  • Page 2: Safety Concerns

    SAFETY CONCERNS For product safety and correct operation, the following information must be given to the operator/user and shall be read before the installation and operation. Conventions WARNING Provides information or instructions that the reader should follow in order to avoid personal injury or fatality.

  • Page 3: Warning

    WIP-5000M phone. Using other chargers can result in overheating or explosion and may cause malfunction. The battery shall be used only for the WIP-5000M phone. Using the battery for other purposes may cause malfunction, fire, or electric shock. Do not put instruments that...
  • Page 4 WIP-5000M User Guide Do not place the phone in a dusty area or in fluctuating temperature environments. It may cause a fire or electric shocks. Do not install the phone near a heater(cigarette lighter, heating apparatus, etc.). It may cause a fire or electric shocks.

  • Page 5: Caution

    WIP-5000M User Guide CAUTION Before execute the [MENU]▶[6.System] ▶[3.Unregistration], double check whether this function should be executed since all phone information registered to the system will be deleted. Use a soft dry cloth to clean the phone. Do not use any...

  • Page 6: Table Of Contents

    Conventions ............1 Symbols ..............1 WARNING ............. 2 CAUTION .............. 4 PREPARATION About This Guide ........... 7 Overview of WIP-5000M......... 7 Phone Layout ............8 Unpacking ............11 Installing the Battery..........11 Installing the Battery..........12 Removing the Battery..........12 Charging the Battery ..........13 Checking the Battery Status........14...
  • Page 7 WIP-5000M User Guide CONVENIENT FEATURES Features on a Calling Failure........34 Features Used During a Call ........35 Dialing using the Service key......... 44 APPLICATION MENUS Menu Structure ............ 47 Phone Book ............55 Utilities ..............65 Message .............. 71 Soft Keys .............

  • Page 8: Preparation

    Samsung’s latest WIP-5000M mobile phone. Please take the time to study this guide to become familiar with the operation of your WIP-5000M and the benefits this new phone can provide. Keep this guide handy. You may need to look up instructions for infrequently used features.

  • Page 9: Phone Layout

    WIP-5000M User Guide Phone Layout The following figure shows the main elements of your phone. Speaker Headset Connection Hole LCD Screen Volume Button Navigation Buttons Cancel/Mute Button Menu Button Send Button End/Power Button Transfer Button Conference Button Hold Button Dial Buttons...
  • Page 10 WIP-5000M User Guide Button Description Button Description Used when calling or receiving an outside trunk call/when transferring a call. Used when controlling the volume of Volume voice or key tone. Used when entering the menu mode. Used when moving the menu bar upward.
  • Page 11 WIP-5000M User Guide Icon (Display) Description Button Features Names This indicates the signal intensity. : weak signal : strong signal This turns on when the service is not available. Blinks when trying to make a call and turns on when a call is connected.

  • Page 12: Unpacking

    WIP-5000M User Guide Unpacking After purchasing the WIP-5000M phone, you have to check that the following items have been packed in the box. WIP-5000M Battery (1 standard type) Charger User Guide Option Hand holder Leather case Earphone for phone...

  • Page 13: Installing The Battery

    Press it in the direction of the arrow until it clicks into place. Removing the Battery In order to take out the battery from the WIP-5000M phone, slide the battery cover in the direction of the arrow while simultaneously pressing the separator...

  • Page 14: Charging The Battery

    WIP-5000M User Guide Charging the Battery After checking each component of the phone, charge the battery as shown in the figure below. Charging the battery Charging the battery with phone...

  • Page 15: Checking The Battery Status

    WIP-5000M User Guide Checking the Battery Status The battery status can be checked by looking at the battery status icons given below that appear on the LCD panel of the phone. ▶ ▶ ▶ Partially Almost Fully Fully charged consumed...

  • Page 16: Basic Features

    BASIC FEATURES To Turn the Power On Press the button for more than 2 seconds. If the phone is not registered to the system, register the phone according to the following procedure: Easy Registration Press and hold the button and turn on the power of the phone.
  • Page 17 WIP-5000M User Guide Select Enable or Disable to activate or not the WEP Security service. WEP Key 1: Enable 2: Disable In case a WEP key has been enabled, select ASCII Mode or HEX Mode to enter the WEP Key.
  • Page 18 WIP-5000M User Guide The telephone has been successfully registered. Tue 27 Aug 16:34 Verifying SSID - The SSID is generally used with the OfficeServ SOHO. - From the OfficeServ SOHO, press [MENU] ▶ [Phone Setup] ▶ [4. Network Setup] ▶...

  • Page 19: Manual Registration

    WIP-5000M User Guide Manual Registration Perform manual registering in the following cases: - Mobile phone is set to Static IP mode. - The WEP key set in the system must be set and registered to the mobile phone. Press and hold the button and turn on the power of the phone.
  • Page 20 WIP-5000M User Guide Select [2: Manual Regs.]. Registration 1: Previous 2: Manual Regs. 3: Language The following screen appears: Enter SSID and OK button _ _ _ _ _ _ _ _ _ _ Next Steps are as same as steps from 3 to 5 in Easy Installation.
  • Page 21 WIP-5000M User Guide If the problem is not solved, follow the troubleshooting procedure described in ‘Phone registration failure’ of ‘Annex’, and if the problem is still not solved, contact the system administrator, reseller, or the service center. For the initial screen, one display can be selected from 3 displays shown as follows.

  • Page 22: To Turn The Power Off

    WIP-5000M User Guide Selecting Language After turning on the power of the phone, press [MENU] without entering the SSID. The screen shown below appears. Select [3: Language Registration 1: Previous 2: Manual Regs. 3: Language Select the language you wish to use.

  • Page 23: Making A Call

    WIP-5000M User Guide Making a Call There are several ways to make a call for the convenience of you. However, only the basic function will be introduced in this guide. Refer to ‘Phone Book’ section in ‘Application Menus’ of this guide for how to use the latest originating number, latest called number, directory or abbreviated dial numbers.

  • Page 24: Using The Call Logs

    WIP-5000M User Guide Using the Call Logs You can view not only the latest calls or received phone numbers but also absent subscriber messages. This is achieved by simply selecting the desired phone number for information or to make a call.

  • Page 25: Answering A Call

    WIP-5000M User Guide Answering a Call Press any button except [Volume] button, or button to start a conversation while the phone is ringing. CALL FROM You can set how to answer the incoming call ‘6. Phone Settings’ from ‘Application Menu’ in this...

  • Page 26: Refusing Or Deflecting A Call

    WIP-5000M User Guide Refusing or deflecting a Call When you can hear an incoming call, but you do not want to take it at the moment, you can refuse or deflect a call. When your handset is ringing. Press the...

  • Page 27: Volume Adjustment

    WIP-5000M User Guide Volume Adjustment You can adjust the bell volume, key button volume, and voice volume from the other party. Bell Volume Adjustment You can adjust the bell volume while the phone is ringing by pressing the [MENU] button.

  • Page 28: Key Button Volume Adjustment

    WIP-5000M User Guide Key Button Volume Adjustment You can adjust the volume with key button while on the phone. Select the one of 5 volume levels you want by pressing the [Volume] button in the initial screen. KeyTone Volume If a key is pressed during a call, the key tone will not be played unless when using an earphone.

  • Page 29: Setting The Etiquette Mode

    WIP-5000M User Guide Setting the Etiquette Mode For not interrupting other people in public places or during a meeting, you can set the phone to vibration instead of ringing. To Set up the Etiquette Mode Press the button for more than 2 seconds on the initial screen.

  • Page 30: Setting The Automatic Key Lock

    WIP-5000M User Guide Setting the Automatic Key Lock In order to protect your privacy, this function prevents others from viewing your information. When the automatic key lock is set, no keys of the phone will work, and functions other than answering a call cannot be used.

  • Page 31: Entering Characters

    WIP-5000M User Guide Entering Characters This section describes how to enter uppercase/ lowercase English characters and special characters. Buttons Used for Entering Characters The buttons used for entering the characters are as follows. [MENU] button: Screen for entering [ENG(uppercase)] appears first and a menu bar prompting you to select [eng(lowercase)/Sym(Special character)] on the lower part of the screen.
  • Page 32 WIP-5000M User Guide How to enter uppercase and lowercase Pressing the [MENU] button allows you to enter English Uppercase letters automatically and to select one type from the [ENG/eng/Sym] or [ITA/ita/Sym] located on the lower part of the screen using the buttons.
  • Page 33 WIP-5000M User Guide count Dial Button ‘space’ Ä To enter characters, press the button where a desired character is displayed repetitively to display the next character.(e.g., If the number [5] button is pressed, the character ‘J’ is entered. If the [5] button is pressed once more, the ‘K’...

  • Page 34: How To Enter Special Characters

    WIP-5000M User Guide How to Enter Special Characters Press the [MENU] button and select [Sym] from the menu bar on the lower part of the screen. Then the special characters are displayed in the same order. Select desired special characters using the buttons and press the [OK] button to enter the character on the screen.

  • Page 35: Convenient Features

    CONVENIENT FEATURES Features on a Calling Failure This section describes functions that can be used for internal calls when the other party is busy or when a call cannot be connected due to features such as ‘Do Not Disturb’, set by the other party. Call Back If an internal call cannot be connected, you can reserve the call.

  • Page 36: Features Used During A Call

    WIP-5000M User Guide Features Used During a Call These convenient functions may be used during a call. Mute on a Call This is used to block your voice from your phone during a call. But you can still hear the other party.
  • Page 37 WIP-5000M User Guide Press the [OK] button. Your request to establish the number of the caller will then be sent to the switching centre. And then continue your call as normally as possible. MCID msg. Sent 00:01:48 - If you receive an error message, you may have...
  • Page 38 WIP-5000M User Guide Parking a call (ISDN Only) The conversation you are holding can be parked. This means that the call will be put on hold. When you are holding a conversation with an external caller, Press the [MENU] button.
  • Page 39 WIP-5000M User Guide The [R] button You can use the [R] button to - hold an existing call and then resume it - forward a held call - set up a conference - to call a further subscriber Putting a call on hold-resuming the call This is used to hold a call for a while during a phone conversation.
  • Page 40 WIP-5000M User Guide Forwarding an internal call to an external phone (ISDN Only) This is used to hold a call for a while during a phone conversation. Press the [R] button during a phone conversation. The internal call will be put on hold and the other party can hear a melody.
  • Page 41 WIP-5000M User Guide Forwarding an external call to an internal phone This is used to hold a call for a while during a phone conversation. Press the [R] button during a phone conversation. The call will be put on hold and the other subscriber hears that ‘the call is on...
  • Page 42 WIP-5000M User Guide Setting up a conference during a call Select this menu option if you would like to set up a conference. Press the [R] button during a phone conversation. The call will then be put on hold and the other party can hear a melody.

  • Page 43: Right Navigation Key

    WIP-5000M User Guide Right navigation key If you press the Right arrow key during a call, a menu will appear allowing you to save telephone numbers. Phonebook 1: Save 2: Find Number 3: Call List You can save the telephone number of the present caller.
  • Page 44 WIP-5000M User Guide Keypad function (ISDN Only) When we refer to the Keypad function, we mean the pressing of keys during a call which are interpreted by the remote station as a control signal. When You are holding an external call. Press the [MENU] button.

  • Page 45: Dialing Using The Service Key

    WIP-5000M User Guide Dialing using the Service key The Service key gives you access to the services of the TI and calls which you have missed. Service 1: Missed Calls 2: Conference 3: TI-Services Missed Calls After view only the latest missed phone number, select the desired phone number and make a call.
  • Page 46 WIP-5000M User Guide TI-Services This menu offers you the following services: Press the [service] button. Service 1: Missed Calls 2: Conference 3: TI-Services Press the [MENU] and press the button and move to [3: TI-Services]. Press the [OK] button. TI-Services...
  • Page 47 WIP-5000M User Guide Select the required function. [1: Call Up]: The selected service will be dialed. [2: Edit]: You can replace the stored telephone number with one of your own. TI-Service - You can change the number of a TI-service and use it for a telephone number of your own, but you cannot change the title in the menu.

  • Page 48: Application Menus

    APPLICATION MENUS Menu Structure Press the [MENU] button in idle mode. The main application menu will appear on the screen. The Menu screen displays the functions-Phone Book, Utilities, Message, Soft Menu, Volume/Ring, Phone Settings and System as icons. Phone book Find Number Outgoing Calls Incoming Calls.
  • Page 49 WIP-5000M User Guide Utilities PSTN Type(Model: SIT200EM) Alarm Scheduler Calculator World Time ISDN Type(Model: SIT200EI) Alarm Scheduler Call Charge Calculator World Time...
  • Page 50 WIP-5000M User Guide Message Inbox(0) Outbox 1. Write 2. Sent(0) Templates 1. New 2. Search SMS Settings 1. Alert Time 1) No Tone 2) Once 3) Every 2 minute...
  • Page 51 WIP-5000M User Guide Soft Menu PSTN Type(Model: SIT200EM) Pick Up Conference DoNotDisturb ISDN Type(Model: SIT200EI) Pick Up CLIR Conference DoNotDisturb Park...
  • Page 52 WIP-5000M User Guide Volume/Ring Ring Type 1. Ring 2. Vibrate 3. Vibrate/Ring Ring Tone Ring Volume Warning Tone...

  • Page 53: Back Light

    WIP-5000M User Guide Phone Settings Phone Name Background 1. Samsugn Logo 2. Display Name 3. Display Time Password Language 1. English 2. Italiano Back Light 1. Light Time 1) 8 sec 2) 20 sec 3) Always Off 2. Light on/off...
  • Page 54 WIP-5000M User Guide ISDN Type (Model:SIT200EI) 1. By Internal 1) Disable 2) Always 3) Busy 4) No Answer 5) Busy/No Answer 2. By Network 1) Always 2) Busy 3) No Answer 3. Clear CF LCD Constrast Station number Reset Version Info...
  • Page 55 WIP-5000M User Guide System Search Base WEP key 1. Enable 2. Disable Register Newly...

  • Page 56: Phone Book

    WIP-5000M User Guide Phone Book Press the [MENU] button in idle mode, and then select the [1. Phone book] icon to find out various methods to make a call. Find Number This function allows you to search a registered phone number in the local/global phonebook.

  • Page 57: Search By Name

    WIP-5000M User Guide Search by Name You can search and make a call the desired phone number using a name. 0667025322 Jack James Jane [MENU] 1. Phone book [OK] 1. Find ▶ ▶ ▶ Number 1. Local/2. global 1. By Name ▶...
  • Page 58 WIP-5000M User Guide Search by Number You can search and make a call the desired phone number using a phone number. 0667025322 Jack James Jane [MENU] 1. Phone book [OK] 1. Find ▶ ▶ ▶ Number 1. Local/2.global 2. By Number ▶...
  • Page 59 WIP-5000M User Guide Search Speed Dial Number You can search and make a call the desired phone number using a speed dial number. 4111204568 Jack [MENU] 1.Phone book [OK] 1. Find ▶ ▶ ▶ Number 1. Local 2. By Number Enter a ▶...
  • Page 60 WIP-5000M User Guide Modifying/Deleting Phone Number This is the method to modify or delete the saved phone number. Menu 1: Edit 2: Delete [MENU] 1. Phone book [OK] 1. Find ▶ ▶ ▶ Number 1. Local/2.global 1/2/3 Enter ▶ ▶...

  • Page 61: Outgoing Calls

    WIP-5000M User Guide Outgoing Calls After view only the latest dialed phone number, select the desired phone number and make a call. Outgoing Calls 0667025322 #4321 #9876 : Latest dialed number, : Failed call) [MENU] 1. Phone book [OK] 2. Outgoing ▶...

  • Page 62: Incoming Calls

    WIP-5000M User Guide Incoming Calls After view only the latest received phone number, select the desired phone number and make a call. Incoming Calls 0667025322 41112045688 #9876 : Latest called number, : Failed call) [MENU] 1. Phone book [OK] 3. Incoming ▶...

  • Page 63: Missed Calls

    WIP-5000M User Guide Missed Calls After view only the latest missed phone number, select the desired phone number and make a call. Missed Calls 0667025322 41112045688 #9876 [MENU] 1. Phone book [OK] 4. Missed ▶ ▶ ▶ Calls (Select the phone number) ▶...

  • Page 64: New Entry

    WIP-5000M User Guide New Entry This function allows you to save the new phone number by using the menu function. Jack [ _ _ ] [ _ _ ] [ _ _ ] [MENU] 1. Phone book [OK] 5. New Entry ▶...

  • Page 65: Delete Lists

    WIP-5000M User Guide Delete Lists This function enables you to delete phone numbers registered in the phone book or calling numbers and called numbers. Are you sure? 1: Yes 2: No [MENU] 1. Phone book [OK] 6. Delete List ▶...

  • Page 66: Utilities

    WIP-5000M User Guide Utilities Press the [MENU] button in idle mode, and then select the [2. Utilities] icon. Alarm You can set or disable the alarm. Set Alarm Time 12/05/2004 15:40 [ _ _ : _ _ ] [MENU] 2. Utilities [OK] 1.
  • Page 67 WIP-5000M User Guide Schedule This function allows you to enter important tasks or appointments and then set the phone alarms on those dates. So, you can easily use this function to manage a personal schedule. If the alarm is set up as mute, you can directly check what the schedule is on the screen.
  • Page 68 WIP-5000M User Guide Modifying/Deleting Schedule This function allows you to modify or delete the registered schedule. [MENU] 2. Utilities [OK] 2. Schedule ▶ ▶ ▶ [OK] Select dates [OK] [MENU] ▶ ▶ ▶ ▶ 1: Modify Modify Time/contents/melody ▶ ▶...
  • Page 69 WIP-5000M User Guide Call Charge (ISDN Only) You can have the handset show you the charge units which have accumulated for this extension up until this point of time. Call Charge Total : 0,00 Last 0,00 (EUR) [MENU] 2. Utilities [OK] 3.
  • Page 70 WIP-5000M User Guide Calculator This function allows you to do four arithmetical operations(addition, subtraction, multiplication and division) in a simple way. Calculator 1204. 1234 [MENU] 2. Utilities [OK] 3. Calculator ▶ ▶ ▶ [OK] Enter numbers (Select ▶ ▶ ▶...

  • Page 71: World Clock

    WIP-5000M User Guide World Clock This function allows you to check current date and time in each region of the world. Seoul, Tokyo 05/12/2004 15:30 [MENU] 2. Utilities [OK] 4. World Clock ▶ ▶ ▶ [OK] (Move the meridian line) ▶...

  • Page 72: Message

    WIP-5000M User Guide Message Press the [MENU] button in idle mode, and then select the [3.Message] icon. Messaging Service mat be serviced according to the country. Inbox This function allows you to check an incoming message. Inbox : 01695304402 02 : 01695304411 03 >...
  • Page 73 WIP-5000M User Guide Outbox This function allows you to send a text message by using the writing or outgoing message box function. Up to 10 outgoing messages can be saved. Outbox : Write 2 : Sent(02) [MENU] 3. Message [OK] 2.
  • Page 74 WIP-5000M User Guide Write This function allows you to write and send the new message. New Message [MENU] 3. Message [OK] 2. Outgoing ▶ ▶ ▶ ▶ [OK] 1.Write [OK] 1.New Text [OK] ▶ ▶ ▶ ▶ ▶ Enter the new message...
  • Page 75 WIP-5000M User Guide Sent This function allows you to check a sent message saved in the message box and the message that fails to be sent, to re-send the message, to delete a message or all messages. Outbox : Hello 02 : Hi~^^;...
  • Page 76 WIP-5000M User Guide Templates This function allows you to write, edit, send, and delete a message saved in the message box, and to delete all messages saved in the Templates. Templates : New 2 : Search [MENU] 3. Message [OK] 3.
  • Page 77 WIP-5000M User Guide Search This function allows you to check the messages saved in the Templates. When a call is connected while writing a new message, the message is saved in the Templates. Search : Hello 02 : Hi ~ [MENU] 3.

  • Page 78: Sms Settings

    WIP-5000M User Guide SMS Settings This function allows you to set SMS configurations. SMS Setting : Alert Time [MENU] 3. Message [OK] 4. SMS Settings ▶ ▶ ▶ [OK] 1. Alert Time [OK] ▶ ▶ ▶ Alert Time This function allows you to set alert time that notifies to the user when a message arrives.

  • Page 79: Soft Keys

    WIP-5000M User Guide Soft Keys Press the [MENU] button in idle mode, and then select the [4. Soft Keys] icon. The sub menus of [Soft Keys] are decided by system. Pick Up You can hear one of the other handsets or the base station ringing, but you know there is nobody in the vicinity of the device.
  • Page 80 WIP-5000M User Guide CLIR (Calling Line Identification Restriction, ISDN Only) If the called person has a telephone with a display and his/her network supports CLIP, your telephone number will still not be displayed. Under circumstances, the called person’s network may inform him/her that the presentation of the number is supported, but the caller has deactivated the function.
  • Page 81 WIP-5000M User Guide Conference You can call multiple parties to have a conversation in one channel. Up to three persons, including the person holding the conference, can participate in a conference call. Loading Conference Group You can load a conference group from the system and have a conference with the group.
  • Page 82 WIP-5000M User Guide Saving Conference Group Members that are frequently called upon for a meeting can be saved to the system as a group. A group saved to the system can be conveniently used later by selecting ‘Group Conference’. 3405...
  • Page 83 WIP-5000M User Guide Entering Each Member You can have a conference by entering directly phone number of each member. 3441 1874 [MENU] 4. Soft Keys [OK] 2. Conference ▶ ▶ ▶ (ISDN Type: 3. Conference) [OK] 2. Each ▶ ▶...

  • Page 84: Do Not Disturb

    WIP-5000M User Guide Do Not Disturb You can deny all of call requests anytime you want to. 1234 Wed12 May 03:12p [MENU] 4. Soft Keys [OK] 3.DoNotDisturb ▶ ▶ ▶ (ISDN Type: 4. DoNotDisturb) [OK] ▶ ▶ 1: On DND mode is set up.
  • Page 85 WIP-5000M User Guide Park (ISDN Only) If you want to un-park the call, enter the parking code with which the call was parked. The call will now be taken by this handset. 00:01:48 Enter orbit #.: [MENU] 4. Soft Keys [OK] 5.

  • Page 86: Volume/Ring

    WIP-5000M User Guide Volume/Ring Press the [MENU] button in idle mode, and then select the [5. Volume/Ring] icon. You can press the in idle mode to perform the same function. Ring Type You can select the modes of call sound such as the ring, vibration, ring after vibration.

  • Page 87: Ring Tone

    WIP-5000M User Guide Ring Tone This function enables you to select one bell melody out of a selection of 10 melodies. Ring Tone 01: Melody 1 02: Melody 2 03: Melody 3 [MENU] 5. Volume/Ring [OK] 2. Ring ▶ ▶...
  • Page 88 WIP-5000M User Guide Warning This function enables you to hear a warning tone when you move to a shadow zone during a call. Warning : On 1. On 2. Off [MENU] 5. Volume/Ring [OK] 4. Warning ▶ ▶ ▶ [OK]...

  • Page 89: Phone Settings

    WIP-5000M User Guide Phone Settings Press the [MENU] button in idle mode, and then select the [6. Phone Settings] icon. The submenus are not displayed until a password is entered. Phone Name This function enables you to enter random characters on the screen displayed on the initial screen.
  • Page 90 WIP-5000M User Guide Background This function enables you to select the background of the initial screen that appears when power on. Background 1: Samsung Logo 2: Display Name 3: Display Time [MENU] 6. Phone Settings [OK] Enter a ▶ ▶...
  • Page 91 WIP-5000M User Guide Password This function enables you to prevent others from using your phone by changing the initial factory set password of the phone. The initial password is set to 1234. <New Password> _ _ _ _ [MENU] 6. Phone Settings...
  • Page 92 WIP-5000M User Guide Screen Back Light This function enables you to set the intensity of the lighting on the phone screen. Lighting Time This function enables you to set the time for background lighting, which lights automatically when the keys are pressed or a messages appears.

  • Page 93: Power Save

    WIP-5000M User Guide Power Save You can set the mode of the energy-saving lighting. Light : On 1: On 2: Off [MENU] 6. Phone Settings [OK] Enter a ▶ ▶ ▶ Password 5. Back Light [OK] 2. Light ▶ ▶...
  • Page 94 WIP-5000M User Guide Call Forward This feature enables you to forward your incoming calls to a specific extension, group of extensions or external number when you are unable to receive an incoming call. [12] Thu 11 Aug 16:59 < PSTN Type>...
  • Page 95 WIP-5000M User Guide < ISDN Type> [MENU] 6. Phone Settings [OK] Enter a ▶ ▶ ▶ password 6. Call Forward [OK] ▶ ▶ ▶ ( Select function type) [OK] ▶ ▶ ( Select forward type) [OK] ▶ ▶ Enter a forwarded number [OK] ▶...

  • Page 96: Lcd Contrast

    WIP-5000M User Guide - To use the [5: Busy/No Answer] function, the [3: Busy Calls] and [4: No Answer] functions must be set. - If [2. By Network] is set as Function Type, it can be set only 1. Always/2. Busy/ 3.
  • Page 97 WIP-5000M User Guide Station Number This feature enables you to view your extension phone number on the screen of the phone. Station Number [MENU] 6. Phone Settings [OK] Enter a ▶ ▶ ▶ password 8. Station Number [OK] ▶ ▶...
  • Page 98 WIP-5000M User Guide Reset This function enables you to initialize all the functions and status of a phone. Reset All 1: Yes 2: No [MENU] 6. Phone Settings [OK] Enter a ▶ ▶ ▶ password 9. Reset [OK] ▶ ▶...
  • Page 99 WIP-5000M User Guide Version Info You can find out the version number and the date of the software of your handset. Version Info Version: 0.10 Date: 30.07.2005 [MENU] 6. Phone Settings [OK] Enter a ▶ ▶ ▶ password 0. Version Info...

  • Page 100: Phone Lock

    WIP-5000M User Guide Phone Lock When the Phone lock is set, no keys of the phone will work, and functions other than answering a call cannot be used until you enter the password. Phone Settings 0: Version Info Phone Lock...

  • Page 101: System

    WIP-5000M User Guide System Press the [MENU] button in idle mode, and then select the [7. System] icon. Search Base The mobile handset searches for a base station which corresponds to the values stored on the handset. System 1: Search Base...
  • Page 102 WEP is a security protocol defined by the Wi-Fi standard to provide a wireless LAN security level similar to that of wired LAN. Wi-Fi devices basically support WEP, and additionally WPA and 802.11i. WIP-5000M currently supports Enhanced Security SSID and 128 bit WEP.
  • Page 103 WIP-5000M User Guide Register newly A mobile handset which is presently registered to a base station can be manually registered to another base station which is within radio range. System 1: Search Base 2: WEP Key 3: Register newly [MENU] 7.

  • Page 104: Troubleshooting

    TROUBLESHOOTING Possible problems and troubleshooting steps for your phone are described below. Check the troubleshooting steps before contacting your Authorized Samsung Reseller. The LCD does not light up Battery is discharged. Recharge the battery and turn the phone on again.
  • Page 105 - Check if the power of the system or AP is on. - If the phone does not work despite the above measures, contact the Samsung Electronics service center. Phone registration failure - Check if the power of the system or AP is on and reregister the phone.
  • Page 106 - If calls are still disconnected frequently, contact the Samsung Electronics service center. The phone operates abnormally or does not operate at all Take the battery out and insert it again, and turn the phone on again. If the problem continues, contact the Samsung Electronics service center.

  • Page 107: Annex

    ANNEX Product Specifications The specifications of the WIP-5000M are as follows. Items Specification Model Name WIP-5000M Frequency 2400~2483.5 MHz Size(mm) 43(width) x 126(length) x 19(height) Operating 0~45˚C Temperature Operating 0~90% Humidity Weight 95 g Battery 2 Hour Charge Time Battery...
  • Page 108 WIP-5000M User Guide...
  • Page 109 WIP-5000M User Guide...
