Summary of Contents for Spyclops SPY-NVR8720W

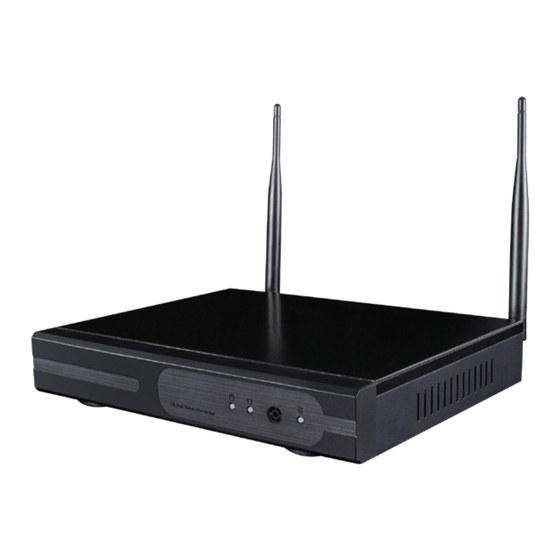

- Page 1 SPY-NVR8720W Users Manual...
-
Page 2: Hardware Description
Hardware description 1 Statement Thank you for purchasing the Spyclops SPY-NVR8720W. Please contact Spyclops Tech Support if any problems arise with this unit. This user manual is for the Spyclops SPY-NVR8720W. 2 Safety Cautions 1. Do not put containers with liquid near and/or on NVR. -
Page 3: Installation Diagram
4 Installation Diagram …… 5 Antenna Location fault method correct method... - Page 4 NVR’s antennas as shown in the antenna location diagram. According to the signal divergence characteristics of the antennas, and in order to guarantee the Spyclops video quality, cameras antennas must be installed as shown in antenna location diagram.
- Page 5 9 NVR, IPC Parameter List...
-
Page 7: Software Operation
Software operation 1 Add camera by matching code Steps: Right click on the mouse to open menu options. - Click Video Manage to enter Video Management interface. There are two ways for the NVR to add IPC, “Code Add” and “Auto Add”. When adding cameras by matching code, the camera transmits video images wirelessly to NVR, IP is 172.20.14.X;... -
Page 8: Video Backup
3 Video Backup Step 1: Right click on mouse. Step 2: Click Video Backup Step 3: Choose channel number, choose record mode. Step 4: In Search Time, input your start time and ending time. Step 5: Choose which video needing to be backed up and click video backup. 4 Video Detection Step 1: •... - Page 9 5 Generate Esee ID In order to view your cameras from a mobile device and/or computer, you must connect the NVR to a router. By following the steps below will generate your Esee ID number. Step 1: Right click on mouse. Step 2: Click System Setup Step 3: Click Network Setup Step 4: Check the DHCP box, click OK to save settings.
- Page 10 7 Access in LAN Step 1: Right click on mouse, click System Setup, click Network Setup, check video videorecorder IP address. Step 2: Enter www.e-seenet.com in browser. Step 3: Input Esee number, user name and password and click login.
- Page 11 8 Android Mobile Application Download & Install NO. 1: Step 1: Open Play Store Step 2: Search for “SPYCLOPS” Step 3 Download & Install 9 iPhone Application Download & Install Step 1: Open APP store Step 2: Search for “SPYCLOPS”...
- Page 12 10 Spyclops Application –Setup Step 1: Register User name & Password with APP (Optional) or use Trial for single phone use Step 2: Click + icon in upper right & select “Add device by ID” Step 3: Enter 9 Digit ID in Cloud ID, Title for Device in Descriptions, User Name &...
- Page 13 11 Spyclops Application – Functions Step 1: Tap preview grid of desired device Step 2: View Device and select camera view options Step 3: Double tap any single camera for full screen Step 4: Select Stream icon to adjust for SD or HD stream quality Step 5: PTZ control for Pan Tilt Zoom cameras Step 6: Playback –...
- Page 14 Notes: 1. Device will not be covered under warranty due to following reasons: a. Accident, negligence, disaster and/or mis-operation. b. Improper installation in wrong environment and conditions. Such as improper power, working temperature is too hot or too low, lightning strikes, etc. c.
- Page 15 866.839.9187 460 Walker Street, Holly Hill, FL 32117 www.spyclopsusa.com...
