Summary of Contents for Topica TP-2006 AX

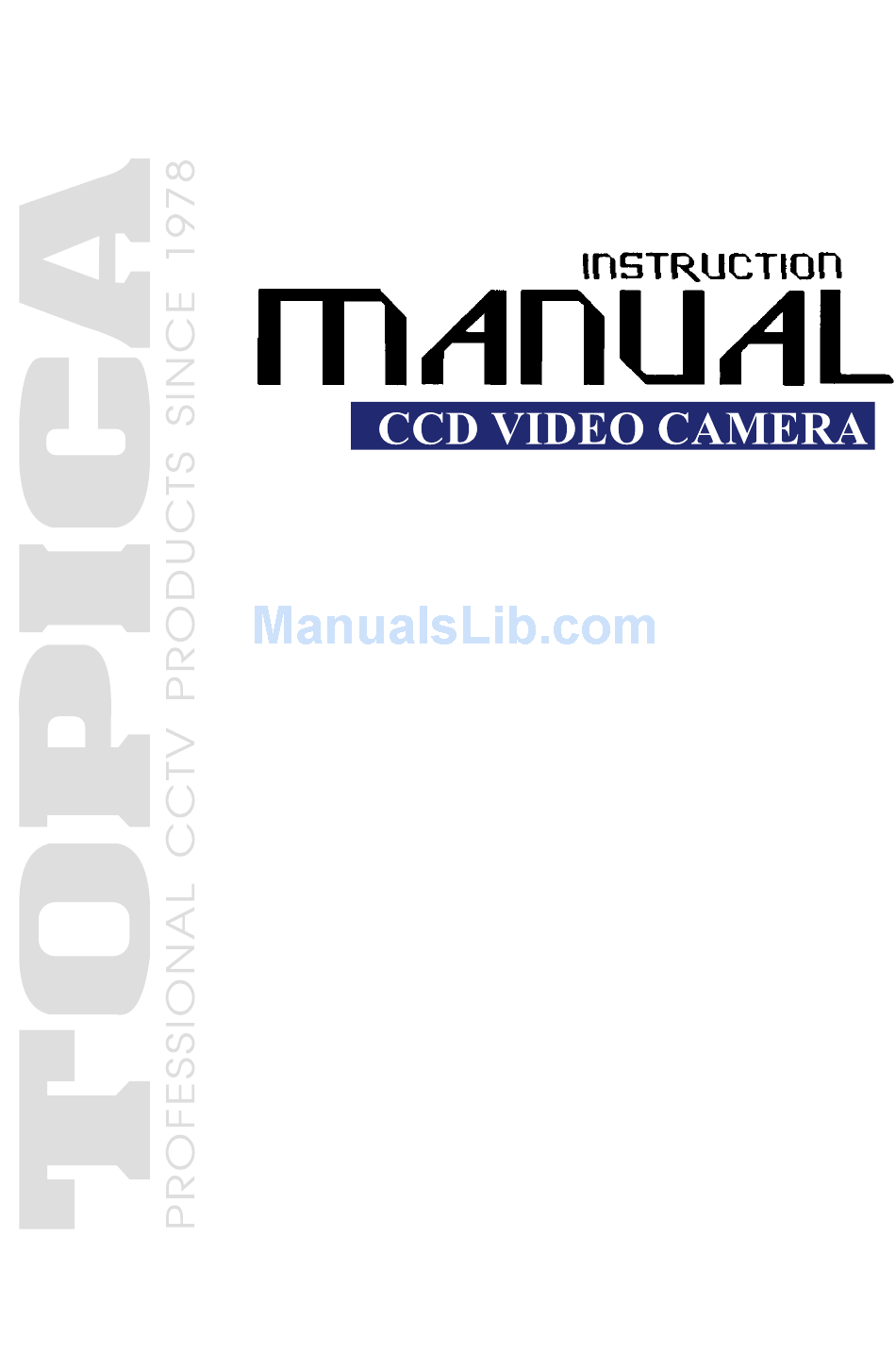

- Page 1 TP-2006 AX...
- Page 2 General New color CCD camera TP-2006 AX "Black Knight" uses high sensitive 1/3" interline transfer CCD (Charge Couple Device). Its attractive black finish and stramlined round body, as well as B.L.C., Level adjustment, E.S, and other functions are the reasons for its competence in CCTV field.
- Page 3 Features (1)Back Light Compensation(B.L.C.) Normal function is for the regular circum- stance. B.L.C. function is for the better back light treatment for objects under bright-light area. (2)Level adjustment When switch to Direct Drive, use level adjustment to take a clearer picture in bright and dark areas.
- Page 4 Precautions (1)To protect camera, do not expose the device to humidity and dust. (2)Handle the camera with care This camera consists of sensitive highprecision parts. Do not place it in a location subject to vibration or on an unstable base. (3)CCD sensor consists of sensitive highpre- cision.
- Page 5 Precautions (6)Projection of the lens or other piece of optical equipment must be less than 6mm from the lens mount face. (7)In case the camera with any defect, please inform the qualified service person. Don't try to disassemble the camera by yourself.
- Page 6 Function of parts and wiring (1)Lens mount Use CS mount lens or C mount lens with the attached 5mm adaptor ring. (2)Video signal output connector (BNC connector) Connect to CCTV monitor by using a coaxial cable. (3)Auto iris connector Connect the cable from auto iris lens to the pin no.
- Page 7 Connections (1) Single Connection (one camera to one CCTV monitor) (2) Multiple Connection (plural cameras to one CCTV monitor)
-
Page 8: Operation And Adjustment
Operation & adjustment (1)Install lens to the camera. (2)Connect a cable between camera and CCTV monitor and then turn on the power of each device. (3)To obtain the best picture, adjust the focus and the diaphragrm while observing the image plane. (4)Back focus adjustment If the subject is not in focus after adjusted the focus of lens, it's need to make the back... -
Page 9: Specifications
Specifications PICK UP DEVICE 1/3" Interline Transfer CCD PICTURE ELEMENTS NTSC: 510(H) x 492(V) PAL: 500(H) x 582(V) SYNC SYSTEM Internal sync HORIZONTAL RESOLUTION 400 TV lines LENS MOUNT CS mount or C mount with 5mm adaptor ring WHITE BALANCE Auto B.L.C. - Page 10 Dimensions & parts location 1. Control - 1. Control - 2. Control + 2. Control + 3. Drive + 3. Drive + 4. Drive - 4. Drive - DC12V LEVEL LEVEL AC24V/DC12V 1. AES 1. AES 2. BLC VIDEO 2. BLC VIDEO AC 24V/DC 12V DC 12V...
