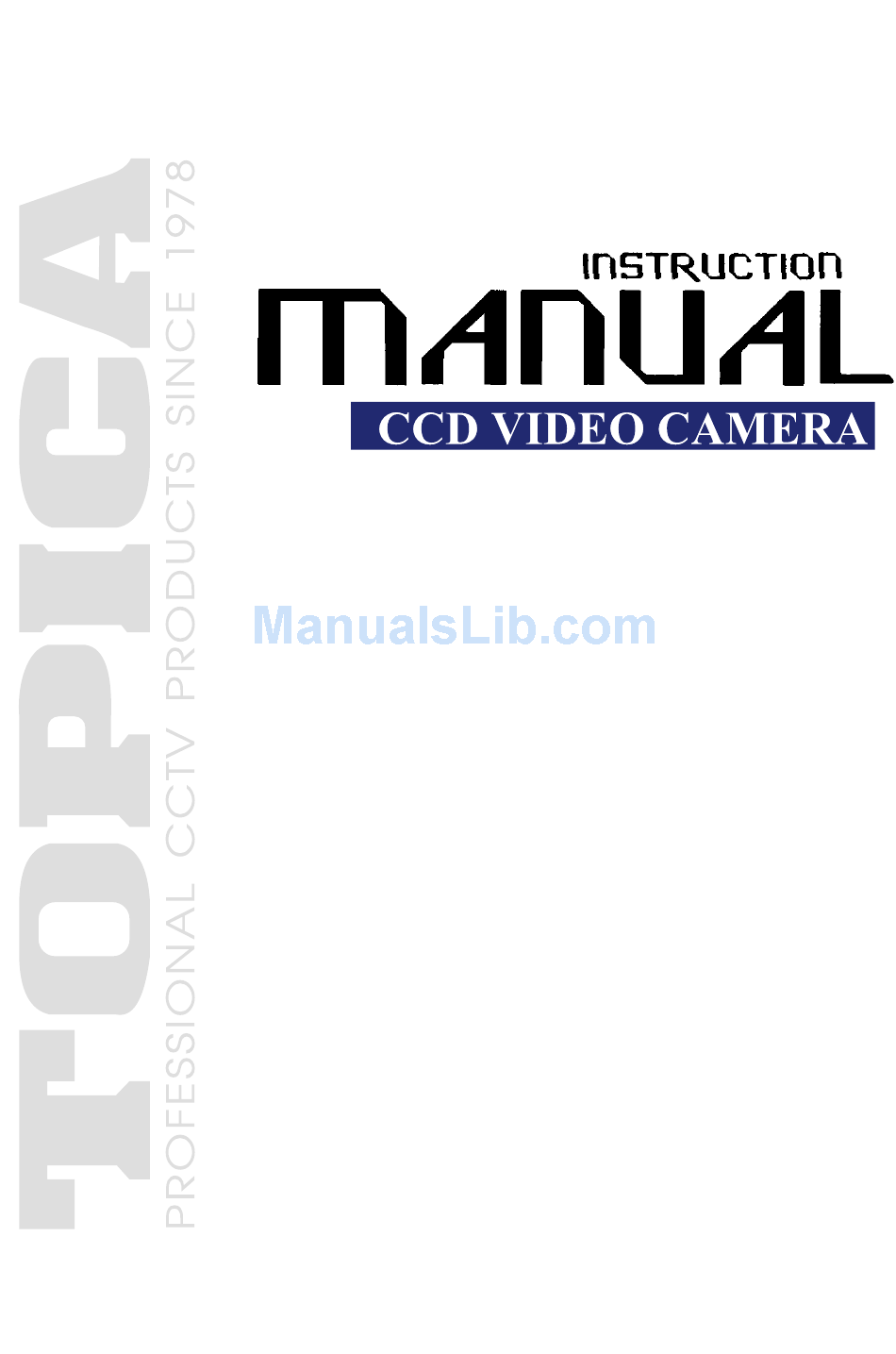

- Page 1 TP-6 SERIES...
- Page 2 General New TP-6 series consist of Color CCD camera TP-6003C and B/W CCD Camera TP-606B, TP-608BK.All of them use high sensitive 1/3" interline transfer CCD (Charge Couple Device). advanced Video Drive/Direct Drive (V.D./D.D.) switch, Back Light Compensation (B.L.C.), Level adjustment on back panel, Electronic Shutter (E.S.) Their...
- Page 3 Features (1)V.D./D.D. Switch For Video drive auto iris lens, please set switch to V.D. For Direct Drive iris lens, set switch to D.D. (2)Back Light Compensation(B.L.C.) Normal function is for the regular circum- stance. B.L.C. function is for the better back light treatment in bright back area.
- Page 4 Precautions (1)To protect camera, do not expose the device to humidity and dust. (2)Handle the camera with care This camera consists of sensitive highprecision parts. Do not place it in a location subject to vibration or on an unstable base. (3)CCD sensor consists of sensitive highpre- cision.
- Page 5 Precautions (6)Projection of the lens or other piece of optical equipment must be less than 6mm from the lens mount face. (7)In case the camera with any defect, please inform the qualified service person. Don't try to disassemble the camera by yourself. Compositions Camera............1 Iens mount cap..........1...
- Page 6 Function of parts and wiring (1)Lens mount Use CS mount lens or C mount lens with the attached 5mm adaptor ring. (2)Video signal output connector (BNC connector) Connect to CCTV monitor by using a coaxial cable. (3)V.D./D.D. Switch Switch to Video Drive (V.D.) for auto iris lens w/EE AMP.
- Page 7 Connections (1) Single Connection (one camera to one CCTV monitor) (2) Multiple Connection (plural cameras to one CCTV monitor)
- Page 8 Operation & adjustment (1)Install lens to the camera. (2)Connect a cable between camera and CCTV monitor and then turn on the power of switch of each device. (3)To obtain the best picture, adjust the focus and the diaphragrm while observing the image plane.
- Page 9 Specifications TP-6003C PICK UP DEVICE 1/3" Interline Transfer CCD PICTURE ELEMENTS NTSC: 510(H) x 492(V) PAL: 500(H) x 582(V) SYNC SYSTEM Internal sync HORIZONTAL RESOLUTION 450 TV lines MINIMUM ILLUMINATION 0.4 Lux/F1.2 LENS MOUNT CS mount or C mount with 5mm adaptor ring WHITE BALANCE Preset Auto White Balance(A.W.B) B.L.C.
- Page 10 Specifications TP-606B TP-608BK PICK UP DEVICE 1/3"Interline Transfer CCD PICTURE ELEMENTS NTSC: 510(H) x 492(V) PAL: 500(H) x 582(V) SYNC SYSTEM Internal sync SCANNING SYSTEM 2:1 INTERLACE SCANNING FREQUENCY EIA: H: 15.734 KHz V: 69Hz CCIR: H: 15.625 KHz V: 50Hz HORIZONTAL RESOLUTION TP-606B: 480 TV lines, TP-608BK: 460 TV lines...
- Page 11 Dimensions & parts location TP-6003C TP-6003C TP-606B/TP-608BK 1. DC12V 2. IRIS OUT 3. N.C. 4. GND 1. DC12V 2. IRIS OUT LEVEL LEVEL 3. N.C. 4. GND AC IN AC IN 1. AES 2. BLC 1. AES 3. F.L. VIDEO VIDEO 2.
- Page 12 Dimensions & parts location TP-6003C TP-606B/TP-608BK 1. DC12V 2. IRIS OUT LEVEL 3. N.C. 4. GND AC24V/DC12V 1. AES VIDEO 2. BLC DC/AC TYPE 58 mm 50 mm...
