Topica TP-2000 Instruction Manual

Ccd video camera

Advertisement

Quick Links

TP-2000

Advertisement

loading
Need help?

Need help?

Do you have a question about the TP-2000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Topica TP-2000

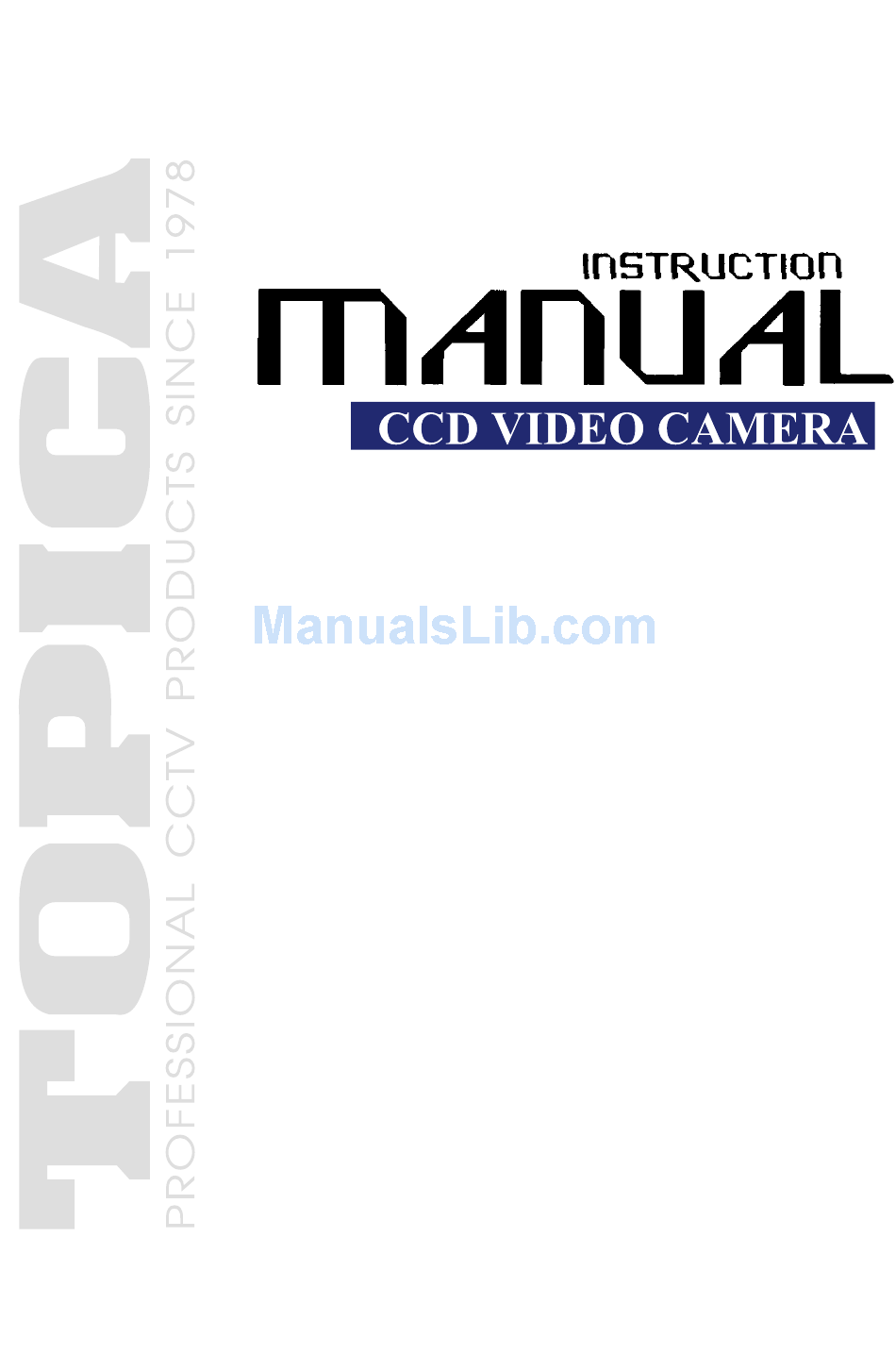

  • Page 1 TP-2000...
  • Page 2 General New TOPICA TP-2000 High Resolution B/W CCD Camera use high sensitive 1/3" interline transfer CCD (Charge Coupled Device)..Inside of its attractive and modern body (PATENT AUTHORIZED) are full advanced functions. Video Drive/Direct Drive (V.D./D.D.) Switch, Back Light Compensation (B.L.C.), Built-in microphone, AC 24V L.L.
  • Page 3 Features (1)V.D./D.D. Switch For Video drive auto iris lens, please set switch to V.D. For Direct drive iris lens, set switch to D.D. (2)Back Light Compensation(B.L.C.) Normal function is for the regular circum- stance. B.L.C. function is for the better back light treatment for objects under bright-light area.
  • Page 4 Features (5)Modern design Patent authorized two-color match body design meets today's taste. (6)AC 24V L.L. or AC 110V/220V L.L. (7)Auto Gain Control (AGC) on/off switch The subject can be distinguished much clearer even in the dark area. (8)Iris adjustment with L/H position When using the economical Direct Drive (D.D.) auto iris lens, iris control function still ensure perfect operation.
  • Page 5 Precautions (1)To protect camera, do not expose the device to humidity and dust. (2)Handle with careful This camera consists of sensitive highprecision parts. Do not place it in a location subject to vibration or on an unstable base. (3)CCD sensor consists of sensitive highpre- cision.
  • Page 6 Precautions (6)Projection of the lens or other piece of optical equipment must be less than 6mm from the lens mount face. (7)In case the camera with any defect, please inform the qualified service person. Don't try to disassemble the camera by yourself.
  • Page 7 Function of parts and wiring (1)Lens mount Use CS mount lens or C mount lens with the attached 5mm adaptor ring. (2)Video signal output connector (BNC connector) Connect to CCTV monitor by using a coaxial cable. (3)V.D./D.D. switch Switch to Video Drive (V.D.) for auto iris lens w/EE AMP.
  • Page 8 Function of parts and wiring Pin V.D. D.D. 1. DC 12V Control - Control + 2. Iris out Drive + 3. N.C. Drive - 4. GND AES : Electronic shutter BLC : Back Light Compensation 1 2 3 4 5 1.
  • Page 9 Connections (1) Single Connection (one camera to one CCTV monitor) (2) Multiple Connection (plural cameras to one CCTV monitor)
  • Page 10: Operation And Adjustment

    Operation & adjustment (1)Install lens to the camera. (2)Connect a cable between camera and CCTV monitor and then turn on the power of each device. (3)To obtain the best picture, adjust the focus and the diaphragrm while observing the image plane. (4)Back focus adjustment If the subject is not in focus after adjusted the focus of lens, it's need to make the back...
  • Page 11: Specifications

    Specifications PICK UP DEVICE 1/3" Interline Transfer CCD PICTURE ELEMENTS NTSC: 768(H) x 494(V) PAL: 752(H) x 582(V) SYNC SYSTEM Internal sync, Line-Lock HORIZONTAL RESOLUTION 580 TV lines LENS MOUNT CS mount or C mount with 5mm adaptor ring WHITE BALANCE Preset Auto White Balance(A.W.B) B.L.C.
  • Page 12 Dimensions & parts location AUTO IRIS AUTO IRIS VIDEO OUT VIDEO OUT 1. DC12V 1. DC12V 2. IRIS OUT 2. IRIS OUT 3. N.C. 3. N.C. 4. GND 4. GND AC IN 1. AES 1. AES 2. BLC 2. BLC 3.
