WC601 Control
1
I71

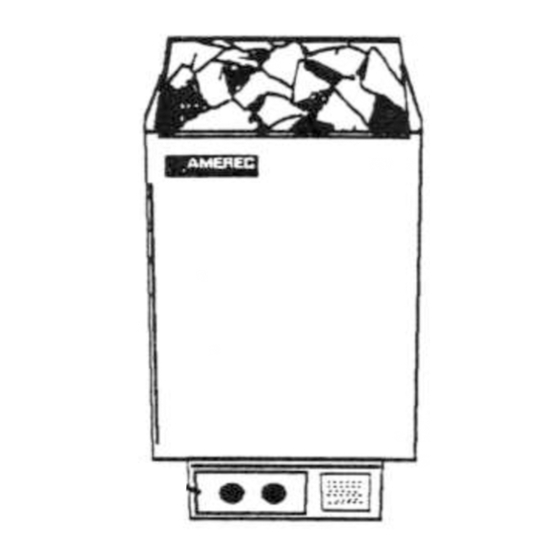

Heater Dimensions:
13-3/4' wide, 28' high, 12'deep.
;
Franc
III
.
'y ---N
.a
0\
\,.....„.._„....1 . 4.
.
TUE
WARNING
Do not take a sauna if using
alcohol, drugs or medications.
Pregnant women or persons with
poor health should consult their
physician before using any sauna.
Caution fire hazard: Do not use the
sauna room for drying clothes,
bathing suits, etc. Do not hang
towels above heater or place any
object other than the rocks
supplied on the heater. If any
darkening of the wall around the
heater is noticed discontinue
sauna use immediately.
Inspect sauna regularly for
required maintenance to heater,
control and benches. Replace
wood surfaces which show any
signs of deterioration.
The heater gets extremely hot
during operation and should not be
touched or burns may result.
Minors should be adequately
supervised whenever near a hot or
warming sauna.
Fire sprinkler systems used inside
any sauna room should be
properly rated for sauna room
temperatures.
Do not pour chlorinated pool or
spa water on heater. Excessive
water use on heater may cause
damage and void warranty.
Electric Shock Hazard - High
voltage exists within this
equipment. There are no user
serviceable parts in this
equipment. All installation and
service to this equipment should
be performed by qualified
licensed personnel in accordance
with local and national codes.

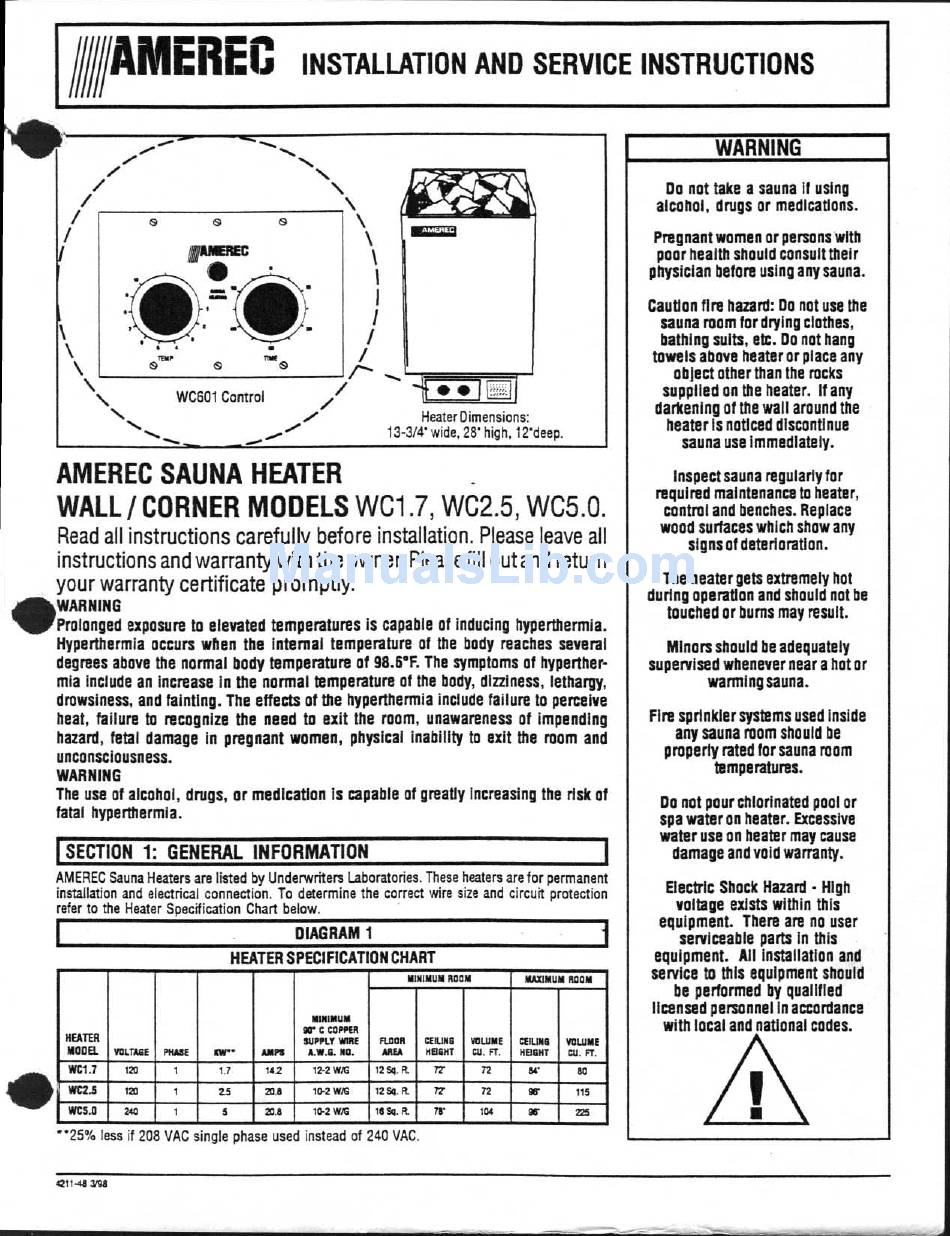

H AMEREC
INSTALLATION AND SERVICE INSTRUCTIONS
AMEREC SAUNA HEATER
WALL / CORNER MODELS WC1.7, WC2.5,
Read all instructions carefully before installation. Please leave all
instructions and warranty with the owner. Please fill out and return
your warranty certificate promptly.
*
WARNING
Prolonged exposure to elevated temperatures is capable of inducing hyperthermia.
Hyperthermia occurs when the internal temperature of the body reaches several
degrees above the normal body temperature of 98.6°F. The symptoms of hyperther-
mia include an increase in the normal temperature of the body, dizziness, lethargy,
drowsiness, and fainting. The effects of the hyperthermia include failure to perceive
heat, failure to recognize the need to exit the room, unawareness of impending
hazard, fetal damage in pregnant women, physical inability to exit the room and
unconsciousness.
WARNING
The use of alcohol, drugs, or medication is capable of greatly increasing the risk of
fatal hyperthermia.
SECTION 1: GENERAL INFORMATION
AMEREC
Sauna Heaters are listed by Underwriters Laboratories. These heaters are for permanent
installation and electrical connection. To determine the correct wire size and circuit protection
refer to the Heater Specification Chart below.
DIAGRAM 1
HEATER SPECIFICATION CHART
HEATER
MODEI.
VOLTAGE PHASE NW" AMPS
MINIMUM
Or C COPPER
SUPPLY WIRE
A.W.G. MO.
MINIMUM ROOM
MAXIMUM ROOM
FLOOR
AREA
CEILING
HEIGHT
VOLUME
CU. FT.
CEILING
HEIGHT
VOLUME
CU. FT.
WC1.7
120 1
1.7
14.2 12-2 W/G 12 Sq. R. 77 72
84'
80
i
WC2.5
120 1
2.5
20.8 10-2 W/G 12 Sq. R. 77 72
or 115
WCS.O 24o 1 5
20.8
10-2 W/G 18 Sq. R. 78- 104
or 225
—
25% less if 208 VAC single phase used instead of 240 VAC.
