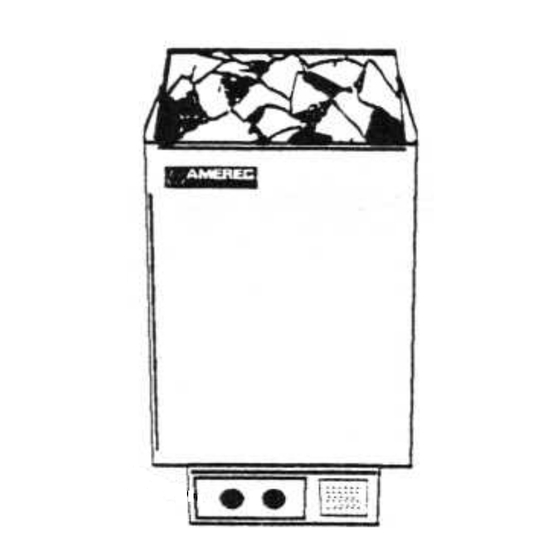

Heater Dimensions:
13-3/4" wide. 28" high. 12"deep.
N
WC602 Control
I
AMEREC SAUNA HEATER -
WALL / CORNER MODELS WC5.2, WC6.7.
Do not -
4e
a sauna it using
alcohol, rugs or medications.
Pregnant .omen or persons with
poor heaizh should consult their
physician before using any sauna.
Caution fire hazard: Do not use the
sauna room for drying clothes,
bathing suits, etc. Do not hang
towels above heater or place any
object other than the rocks
supplied on the heater. If any
darkening of the wall around the
heater is noticed discontinue
sauna use immediately.
Inspect sauna regularly for
required maintenance to heater,
control and benches. Replace
wood surfaces which show any
signs of deterioration.
The heater gets extremely hot
during operation and should not be
touched or burns may result.
Minors should be adequately
supervised whenever near a hot or
warming sauna.
Fire sprinkler systems used inside
any sauna room should be
properly rated for sauna room
temperatures.
Do not pour chlorinated pool or
spa water on heater. Excessive
water use on heater may cause
damage and void warranty.
Electric Shock Hazard - High
voltage exists within this
equipment. There are no user
serviceable parts in this
equipment. All installation and
service to this equipment should
be performed by qualified
licensed personnel in accordance
with local and national :odes.
WARNING
MO MI al
INSTALLATION AND SERVICE INSTRUCTIONS
h/CPRODUCTS
Read all instructions carefully before installation.
Please leave all instructions and warranty with the owner.
•
Please fill out and return your warranty certificate promptly.
WARNING
Prolonged exposure to elevated temperatures is capable of inducing hyperthermia.
Hyperthermia occurs when the internal temperature of the body reaches several
degrees above the normal body temperature of 98.6°F. The symptoms of hyperther-
mia include an increase in the normal temperature of the body, dizziness. lethargy,
drowsiness, and fainting. The effects of the hyperthermia include failure to perceive
heat, failure to recognize the need to exit the room, unawareness of impending
hazard, fetal damage in pregnant women, physical inability to exit the room and
unconsciousness.
WARNING
The use of alcohol. drugs, or medication is capable of greatly increasing the risk of
fatal hyperthermia.
SECTION 1: GENERAL INFORMATION
AMEREC Sauna Heaters are listed by Underwriters Laboratories. These heaters are for permanent
installation and electrical connection. To determine the correct wire size and circuit pntection
refer to the Heater Specification Chart below.
DIAGRAM 1
HEATER SPECIFICATION CHART
HEATER
MODEL
VOLTAGE PHASE AV' AMPS
MINIMUM
90' C COPPER
SUPPLY WIRE
A.W.G. NO.
MINIMUM ROOM MAXIMUM ROOM
FLOOR
AREA
CEILING
HEIGHT
VOLUME
CU. FT.
CEILING
HEIGHT
VOLUME
CU. FT.
WC5.2
240
1
5.2 21.7 10-2 'N/O '5 SO. R.
76 WA 96
230
WC6.7
240 8 7 27.3 3-2 'N/G '8 So. rt. 78' 75 96
300
"25% less if 208 VAC single phase used instead of 240 VAC.
