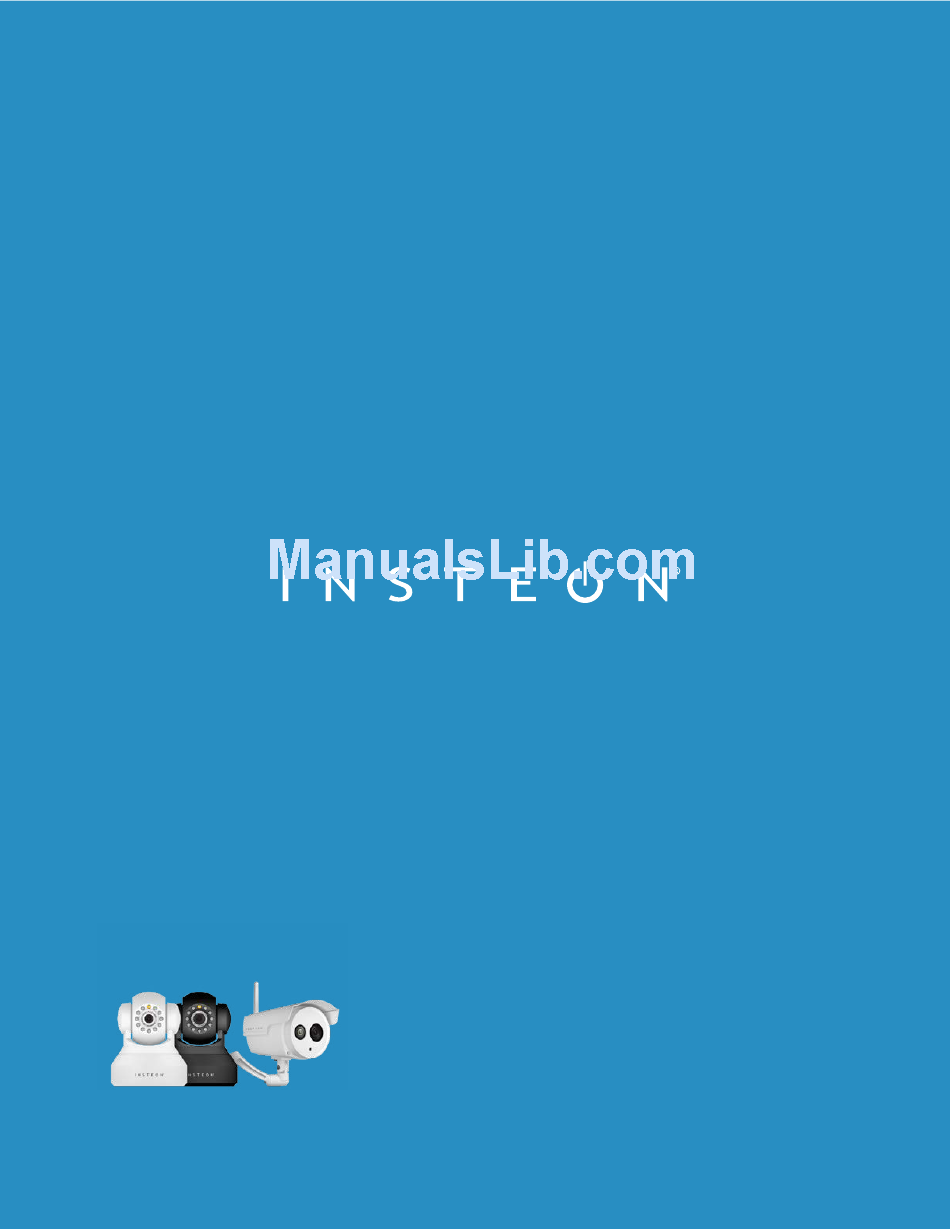

- Page 1 Insteon HD Wi-Fi Cameras Insteon HD Wi-Fi Cameras Owner’s Manual Owner’s Manual...
-
Page 2: Table Of Contents
Installation Mounting HD Outdoor Wi-Fi Camera Overview Installation Mounting Insteon app for iPhone, iPad and iPod touch Configure a Camera for Wired Ethernet Configure a Camera for Wi-Fi Add an Already Configured Camera Add a Remote Camera Advanced Camera Configuration... -
Page 3: Getting Started
Getting Started Getting Started Everything you need to quickly get up and running. Everything you need to quickly get up and running. -
Page 4: Hd Wi-Fi Camera
HD Wi-Fi Camera Overview Front Back Day/Night Sensor IR LEDs Wi-Fi Antenna Microphone 5V Power Micro SD Card Slot 10/100 Ethernet WPS Button External Microphone External Speaker... -
Page 5: Installation
HD Wi-Fi Camera Installation Outlet Connections Camera Connections Connect the power adapter to an outlet and Connect the antenna, ethernet cable and DC connect the ethernet cable to your router. power connector to your camera. -
Page 6: Mounting
HD Wi-Fi Camera Mounting Mounting Bracket Mount the optional bracket using screws and wall anchors. You can position the camera right-side up or upside down. Different wall materials require different screws and anchors. Use the appropriate type for your mounting surface. Drywall screws and anchors have been provided. -
Page 7: Hd Outdoor Wi-Fi Camera
HD Outdoor Wi-Fi Camera Overview Camera Cable Bundle Wi-Fi Antenna 12V Power 10/100 Ethernet IR LED External Speaker External Microphone Day/Night Sensor Reset Button... -
Page 8: Installation
HD Outdoor Wi-Fi Camera Installation Outlet Connections Camera Connections Connect the power adapter to an outlet and Connect the antenna, ethernet cable and DC connect the ethernet cable to your router. power connector to your camera. -
Page 9: Mounting
HD Outdoor Wi-Fi Camera Mounting Mounting Bracket Outdoor Cameras Mount the bracket using screws and wall Affix the camera with the final set screw. anchors. Set the camera’s position by Encase the camera cables in a weather-proof adjusting the various set screws with the electrical box. -
Page 10: Insteon App For Iphone, Ipad And Ipod Touch
Insteon app for iPhone, iPad and iPod Touch Insteon app for iPhone, iPad and iPod touch Use the Insteon app to configure and control your Insteon Wi-Fi Cameras. Use the Insteon app to configure and control your Insteon Wi-Fi Cameras. -
Page 11: Configure A Camera For Wired Ethernet
Configure a Camera for Wired Ethernet iPhone, iPad and iPod touch Launch the Insteon App Tap the drawer icon or swipe from Tap Add a Device the right edge of the display to open the drawer Tap Camera If you have not already done so,... - Page 12 Next. If you are presented with information Name your camera, select an about Remote Access, follow these steps icon and add it to a room. When Troubleshooting Remote Access. finished, tap Done. You’re done setting up your Insteon Wi-Fi Camera.
-
Page 13: Configure A Camera For Wi-Fi
Configure a Camera for Wi-Fi iPhone, iPad and iPod touch Launch the Insteon App Tap the drawer icon or swipe from Tap Add a Device the right edge of the display to open the drawer Tap Camera If you have not already done so,... - Page 14 When disconnecting and then reconnecting Troubleshooting Remote Access. finished, tap Done. your camera’s power cable. If you do not disconnect the ethernet cable, your camera will not switch to Wi-Fi. You’re done setting up your Insteon Wi-Fi Camera.
-
Page 15: Add An Already Configured Camera
Add an Already Configured Camera iPhone, iPad and iPod touch Add an already configured camera if you have already setup an Insteon Wi-Fi Camera using its web browser interface or would like to re-add a camera that was configured using the Insteon app. - Page 16 Add an Already Configured Camera iPhone, iPad and iPod touch Tap Camera Tap Next. Select that camera that you would like to add from the list of cameras...
- Page 17 Next. Remote Access. When finished, tap Done. You’re done setting up your If your camera supports Insteon Wi-Fi Camera. Automatic Remote Access, you can enable it from camera settings. If your camera requires manual remote access, follow these steps to Configure Manual Remote Access.
-
Page 18: Add A Remote Camera
Add a remote camera if your camera has been previously setup and is not located on your local network. Launch the Insteon App Tap the drawer icon or swipe from Tap Add a Device the right edge of the display to open... - Page 19 Enter your camera’s IP address or URL, Name your camera, select port, user name and password. When an icon and add it to a room. ready, tap Done. When finished, tap Done. You’re done setting up your Insteon Wi-Fi Camera.
-
Page 20: Advanced Camera Configuration
DHCP, IP address and port. Launch the Insteon App Tap the drawer icon or swipe from Tap Add a Device the right edge of the display to open... - Page 21 Advanced Camera Configuration iPhone, iPad and iPod touch Tap Camera If you have not already done so, Select that camera that you connect your camera to power and your would like to configure from the router using the supplied ethernet cable. list of cameras It can take up to two minutes for your camera to complete its startup process.
- Page 22 Next settings are updated Advanced camera configuration Name your camera, select an does not enable Automatic icon and add it to a room. When Remote Access. finished, tap Done. You’re done setting up your Insteon Wi-Fi Camera.
-
Page 23: Automatic Remote Access
Automatic Remote Access iPhone, iPad and iPod touch Insteon HD Cameras support Automatic Remote Access so you can view and control your camera when you’re away from home without any additional configuration. Automatic Remote Access is only configured when adding an unconfigured camera. It can be manually enabled for existing cameras. -
Page 24: Insteon App For Android
Insteon app for Android Insteon app for Android Use the Insteon app to configure and control your Insteon Wi-Fi Cameras. Use the Insteon app to configure and control your Insteon Wi-Fi Cameras. Insteon HD Wi-Fi Cameras require Insteon Hub. Insteon HD Wi-Fi Cameras require Insteon Hub. -
Page 25: Configure A Camera For Wired Ethernet
Configure a Camera for Wired Ethernet Android Launch the Insteon App Navigate to Settings by Tap Devices tapping Edit Settings from the Settings button Tap the Add button Tap Camera Tap Play to watch the setup video or tap Skip Video to... - Page 26 When ready, tap OK. Wait while your camera’s Name your camera, select an settings are updated icon and add it to a room. When finished, tap Done. You’re done setting up your Insteon Wi-Fi Camera.
-
Page 27: Configure A Camera For Wi-Fi
Configure a Camera for Wi-Fi Android Launch the Insteon App Navigate to Settings by Tap Devices tapping Edit Settings from the Settings button Tap the Add button Tap Camera Tap Play to watch the setup video or tap Skip Video to... - Page 28 Configure a Camera for Wi-Fi Android If you have not already done so, connect Give your camera a user Chose the Wi-Fi option that your camera to power and your router using name and password. When applies for your network: the supplied ethernet cable.
- Page 29 Configure a Camera for Wi-Fi Android Wait while your camera Name your camera, select an reconnects via Wi-Fi icon and add it to a room. When finished, tap Done. You’re done setting up your Insteon Wi-Fi Camera.
-
Page 30: Automatic Remote Access
Automatic Remote Access Android Insteon HD Cameras support Automatic Remote Access so you can view and control your camera when you’re away from home without any additional configuration. Automatic Remote Access is only configured when adding a new camera. It can be manually enabled for existing cameras. -
Page 31: Web Browser Interface
Web Browser Interface Web Browser Interface Use the web browser interface to configure advanced settings on Use the web browser interface to configure advanced settings on your camera. your camera. -
Page 32: Web Interface
Web Interface Many camera settings can only be modified using the camera’s web browser interface. Information on configuring supported settings can be found on insteon.com/support. - Page 33 Camera Tool Use Camera Tool to find your Insteon Wi-Fi Camera on your network to administer changes or update firmware using the camera’s web browser interface. Camera Tool for OS X Camera Tool for Windows Requires Mac OS X 10.7 or higher...
-
Page 34: Firmware Update
Firmware Update For detailed firmware update instructions, visit insteon.com/camera-setup... -
Page 35: Factory Reset
Factory Reset Factory Reset Restore all settings by performing a factory reset. Configured users, Restore all settings by performing a factory reset. Configured users, passwords, network settings and more are all erased and restored to passwords, network settings and more are all erased and restored to factory defaults. -
Page 36: Indoor Camera
Factory Reset Ensure your camera is connected to power and then press and hold the reset button for ten seconds. Indoor Camera Outdoor Camera Use a straightened paper clip to depress Use a fingertip to depress the reset button the recessed reset button located on the located in the cable bundle for ten seconds. -
Page 37: Appendix
Appendix Appendix Everything else you might need to know about your Insteon product. Everything else you might need to know about your Insteon product. -
Page 38: Specifications
Specifications General Available Colors White (Indoor) White (Outdoor) Black (Indoor) Brand: Insteon FCC ID ZDEFI9803PV2 Manufacturer Product No.: 2864-222 White (Indoor) 2864-226 Black (Indoor) 2864-232 White (Outdoor) UPC: 813922014129 White (Indoor) 813922014136 Black (Indoor) 813922014198 White (Outdoor) Warranty: 90 days, limited... - Page 39 IEC C8 Certification RoHS System Requirements Operating System Microsoft Windows 7 or later Mac OS X 10.7 or later Apple iOS 7 or later Android 2.2 or later Browser Compatibility A list of supported browsers can be found on insteon.com/support...
- Page 40 Network Ethernet Support One 10/100 RJ45 port Wi-Fi Support iEEE 802.11 b/g/n 802.11b at 11Mbps max 802.11g at 54 Mbps max 802.11n at 150 Mbps max Wi-Fi Security Support WPA2 Network Protocols IP, TCP, UDP, HTTP, HTTPS, SMTP, FTP, DHCP, DDNS, UPnP, RTSP Video Image Sensor HD Color CMOS Sensor...
-
Page 41: Troubleshooting
Troubleshooting For detailed troubleshooting information, visit insteon.com/camera-setup... -
Page 42: Certifications And Warnings
Certifications and Warnings This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 43: Declaration Of Conformity
Separate collection and treatment of WEEE will thus decrease CO2 emissions as well. For the above reasons, Insteon expects end-users to dispose of the material in an environmentally friendly way through separate collection and treatment. Electrical and Electronic Equipment is labeled with the following ‘crossed out wheeled bin’... -
Page 44: Product Warranty
You may also have other legal rights that may vary from state to state. Protected under U.S. and foreign patents (see www.insteon.com/patents) ©2015 Insteon Rev 10.09.15...
