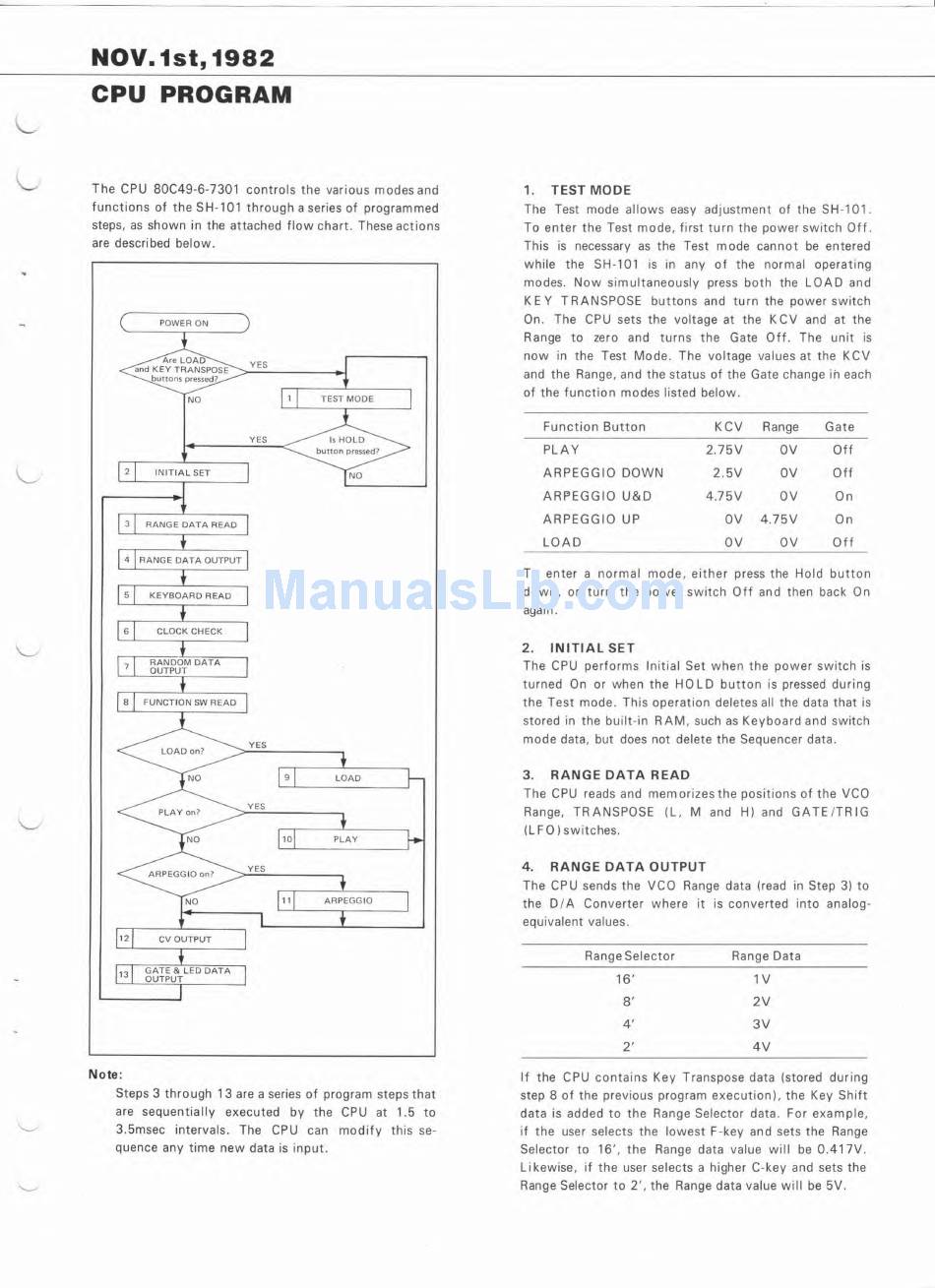

NOV.1st,1982
CPU PROGRAM
The
CPU
80C49-6-7301
controls the various
modes
and
functions
of
the
SH-101
through
a
series of
programmed
steps,
as
shown
in
the
attached flowchart.
These
actions
are
described
below.
Note:
Steps 3 through
1
3 are
a series
of
program
steps
that
are
sequentially
executed by
the
CPU
at
1.5
to
3.5msec
intervals.
The
CPU
can
modify
this se-
quence any
time
new
data
is
input.
1.
TEST
MODE
The
Test
mode
allows easy adjustment
of
the
SH-101.
To
enter the Test
mode,
first
turn the
power
switch
Off.
This
is
necessary
as
the Test
mode
cannot
be entered
while
the
SH-101
is
in
any
of
the
normal
operating
modes.
Now
simultaneously
press
both
the
LOAD
and
KEY TRANSPOSE
buttons and
turn the
power
switch
On.
The
CPU
sets the voltage
at
the
KCV
and
at
the
Range
to
zero
and
turns the
Gate
Off.
The
unit
is
now
in
the Test
Mode. The
voltage values
at
the
KCV
and
the
Range, and
the status
of
the
Gate change
ih
each
of
the function
modes
listed
below.
Function Button
KCV
Range
Gate
PLAY
2.75V
OV
Off
ARPEGGIO
DOWN
2.5V
OV
Off
ARPEGGIO
U&D
4.75V
OV
On
ARPEGGIO
UP
OV
4.75V
On
LOAD
OV
OV
Off
To
enter
a
normal
mode,
either press the
Hold button
down,
or
turn the
power
switch Off
and
then back
On
again.
2.
INITIAL
SET
The
CPU
performs
Initial
Set
when
the
power
switch
is
turned
On
or
when
the
HOLD
button
is
pressed during
the
Test
mode.
This operation deletes
all
the data that
is
stored
in
the
built-in
RAM,
such
as
Keyboard and
switch
mode
data,
but
does
not delete the
Sequencer
data.
3.
RANGE DATA READ
The
CPU
reads
and
memorizes
the positions
of
the
VCO
Range,
TRANSPOSE
(L,
M
and
H)
and
GATE/TRIG
{LEO
)
switches.
4.
RANGE DATA OUTPUT
The
CPU
sends
the
VCO
Range
data
(read
in
Step
3)
to
the
D/A
Converter
where
it
is
converted
into
analog-
equivalent values.
RangeSelector
Range
Data
16'
8
'
4'
T
IV
2V
3V
4V
If
the
CPU
contains
Key
Transpose
data
(stored
during
step
8
of
the previous
program
execution), the
Key
Shift
data
is
added
to
the
Range
Selector data.
For
example,
if
the
user selects the
lowest F-key
and
sets
the
Range
Selector
to
16',
the
Range
data value
will
be
0.417V.
Likewise,
if
the
user selects
a
higher
C-key and
sets the
Range
Selector
to
2',
the
Range
data value
will
be 5V.
