Summary of Contents for Daymak Ultra Beast

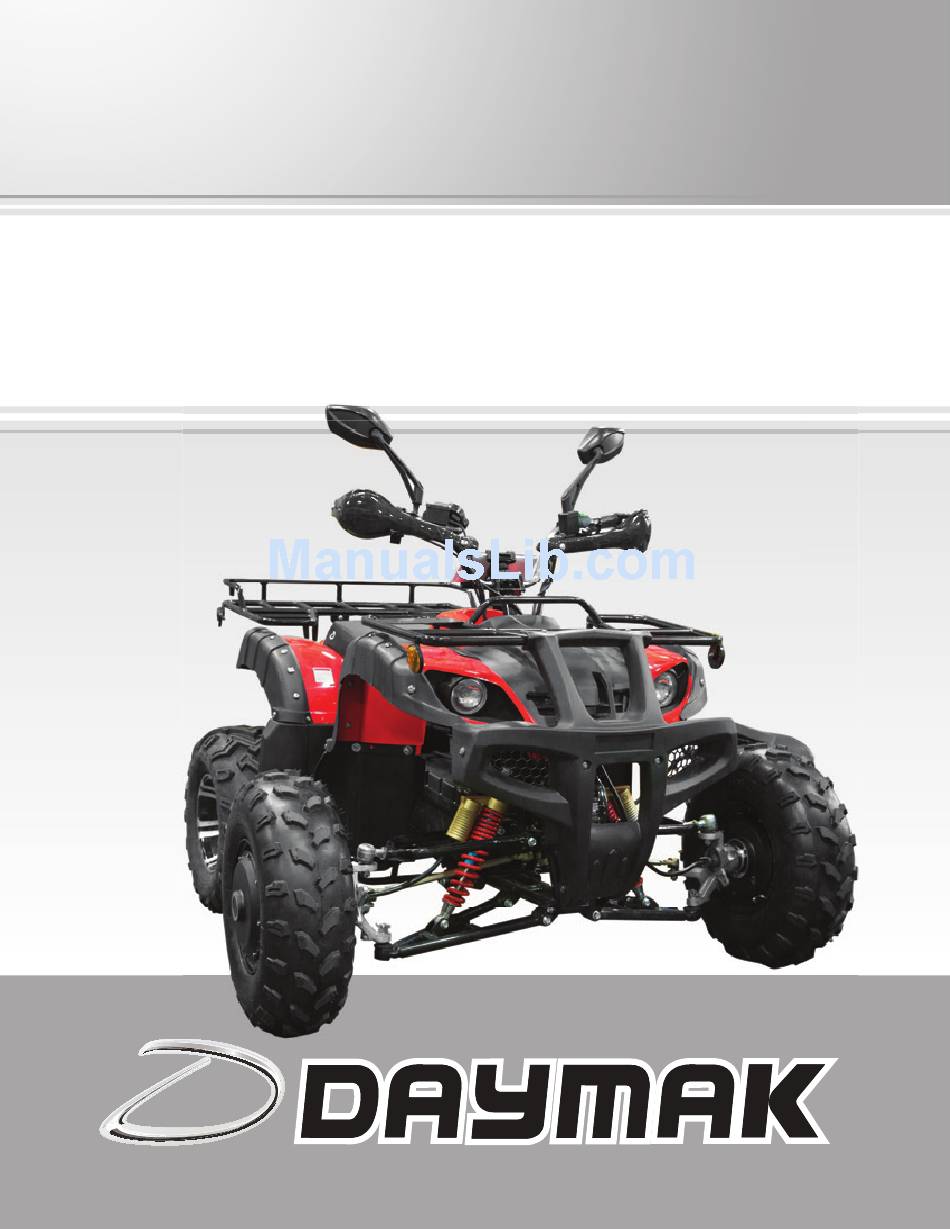

- Page 1 Ultra Beast ATV User Manual...
-
Page 2: About Daymak
Daymak warranties, services, and stocks parts for everything it sells. We support our products. Please feel free to visit our website. -
Page 3: Table Of Contents
Table of Contents About Daymak......................2 Components ......................4 Safety .........................5 Operation ........................6 Powering On the Unit ....................6 Powering on the Tablet Display .................6 Connecting the Tablet ....................7 Riding the Unit ......................8 Motor Controls ......................8 Throttle ........................8 Brakes ........................9 Brake Lock / Wheel Lock....................9 Features ........................10... -
Page 4: Components
Components 1) Mirrors 2) Motor Controls 3) Throttle 4) Tablet / Display 5) Battery Charging Ports 6) ATV Rack 7) Rear Motor 8) Battery Case 9) Front Motors (x 2) 10) Headlights 11) Brakes 12) Seat 13) Tires... -
Page 5: Safety
Safety When operating the Ultra Beast ATV please make sure you adhere to the following: Always where a helmet when riding the Ultra Beast Always check your mirrors and blind spots when operating through trails. Turn on headlights when in need of additional visibility. -
Page 6: Operation
“O” at the bottom center of the screen to go back to the main display. After, open the Daymak Drive app. (If it is not visible you may need to download it from the Google Play/iOS App Store.) Please note, to charge the Tablet, plug the charger into the bot-... -
Page 7: Connecting The Tablet
12345678. Once you have done that, a speedometer will show up and you are ready to go! For more information on the Daymak Drive App, please refer to the quick guide seen here: http://daymak.com/manuals/Daymak%20Drive%20Manual.pdf... -
Page 8: Riding The Unit
0 to turn it off . Set Both Switches to 1 to engage both front and rear motors. In the center console of the Ultra Beast you will fi nd two circuit breakers which control battery power to the motors. This will override the motor settings on the handlebar so please make sure these are set to on. -
Page 9: Brakes
Brakes On both sides of the handlebar there are brake levers as seen on the right. To engage the brakes, pull the brake lever towards you. The right brake lever activates the front brakes The left brake lever activates the rear brakes Brake lock / Wheel Lock To engage the brake lock, fi... -
Page 10: Features
Features On the left handlebar, you will see two switches and one button. The switch at the very top is the forward vs reverse switch. Below that you will fi nd the light switch . And below that you will fi nd the horn. Forward / Reverse When the semi circle is pressed down, you will go foward. -
Page 11: Winch
Winch (Optional) If you have received the Ultra Beast ATV with a winch you have the ability to tow things, or in case you have the plow add on, it allows you to raise and lower the snow plow. At the center console of the unit you will see a red switch with three positions on it. -
Page 12: Maintenance
Maintenance Charging the Unit In the center console of the Ultra Beast, you will fi nd two charigng ports that charge each battery pack as seen on the right. The rear and front motor use a battery pack specifi c to them. -
Page 13: Service
ATVs may be able to off er the same service. Troubleshooting If you have issues with your Ultra Beast , try these steps before considering bringing it in for service. 1) Check to make sure both batteries are fully charged. Try running the unit with one motor on, and the other off... -
Page 14: Specifi Cations
Battery: 2 x 60V 20AH Lead Acid / 2 x 60V 30AH Lithium Ion / 2 x 72V 30AH Lithium Ion Front Motor: 2 x 500W Brushless DC Motors Rear Motor: 1000W Controller: 3 x Daymak Drive Turbo Bluetooth Controllers Tire Size Front: 21 x 7-10 Tire Size Rear: 22 x 10 - 10... -
Page 15: Warranty Info
Warranty info Your warranty for your Ultra Beast covers the frame and motor for 2 years, and parts as stipulated by your dealer. Your Warranty Does Not Cover: - Any damage resulting from negligence of the periodic maintenance. - Any damage which results from repair, adjustment or maintenance operations by any methods oth- er than those specifi... - Page 16 Thank you for choosing Daymak...
