PATRIOT
INSTRUCTION MANUAL

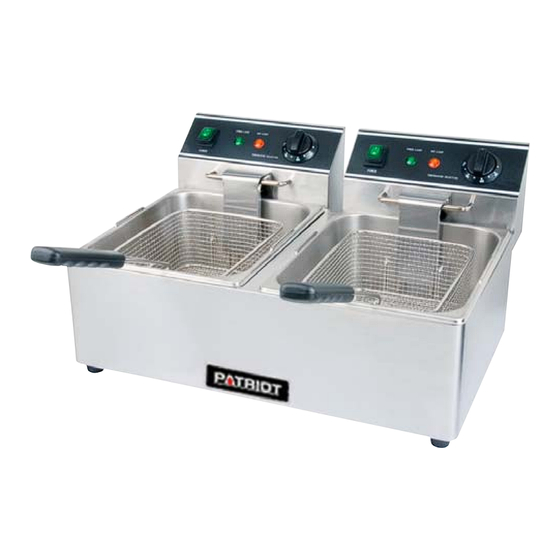

FMDF-6L, FMDF-6L/2
120V ELECTRIC FRYERS
This manual contains importatant information regarding your Patriot unit. Please read this manual thoroughly prior to equipment set-up,
operation and maintenance. Failure to comply with regular maintenance guidelines outlined in this manual may void the warranty.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Patriot FMDF-6L
Summary of Contents for Patriot FMDF-6L
- Page 1 FMDF-6L, FMDF-6L/2 120V ELECTRIC FRYERS This manual contains importatant information regarding your Patriot unit. Please read this manual thoroughly prior to equipment set-up, operation and maintenance. Failure to comply with regular maintenance guidelines outlined in this manual may void the warranty.
- Page 2 PATRIOT WARNINGS • Do not touch any hot surfaces • Do not immerse unit, cord or plug in liquid at any time • Unplug cord from outlet when not in use and before cleaning • It is recommended that the fryer not be moved when it contains hot oil or any other hot liquid •...
- Page 3 PATRIOT 1. Carefully remove unit head from box and place in a safe dry place. 2. Lift out the tank and carefully dispose of oil 3. Gently wipe oil tank removing any excess oil or sludge. Dry completely and place back on machine.
- Page 4 PATRIOT Wiring Diagram for the Deep Fryers S1 - Micro-switch SA - Overheat switch EH - Heater element HL 1 - Power-on indicator HL 2 - Heater-on cycling indicator SB - Temperature regulator E - Ground connection NOTE: THE CIRCUITS OF THE TWO FRYERS ARE IDENTICAL. THE DIFFERENCE IS THAT THE TWO TANK FRYER HAS TWO SEPARATE ELECTRICAL UNIT BOXES AND RECEPTICLES.
- Page 5 PATRIOT Parts Diagram and Replacement Parts for the Deep Fryers Reference Number DF-6L Part Number Description DF6SG-1 Heating Indicator Light - Orange Screw for Backboard DF6SG-3 Power Indicator Light - Green Back Board DF-1/6 Temperature Limiter/Reset Ceramic Junction Block DF-8...
- Page 6 Patriot warrants its equipment against defects in materials and workmanship, subject to the following conditions: Patriot is warranted for one year, effective from the date of purchase by the original owner. A copy of the original receipt or other proof of purchase is required to obtain warranty coverage. This warranty applies to the original owner only, and is not assignable.
