Cymbal Stand Assembly; Snare Drum Stand Assembly; Attaching The Bass Drum Pedal - SPL UNITY KIT D4522 Assembly Manual

Hardware:
D4522

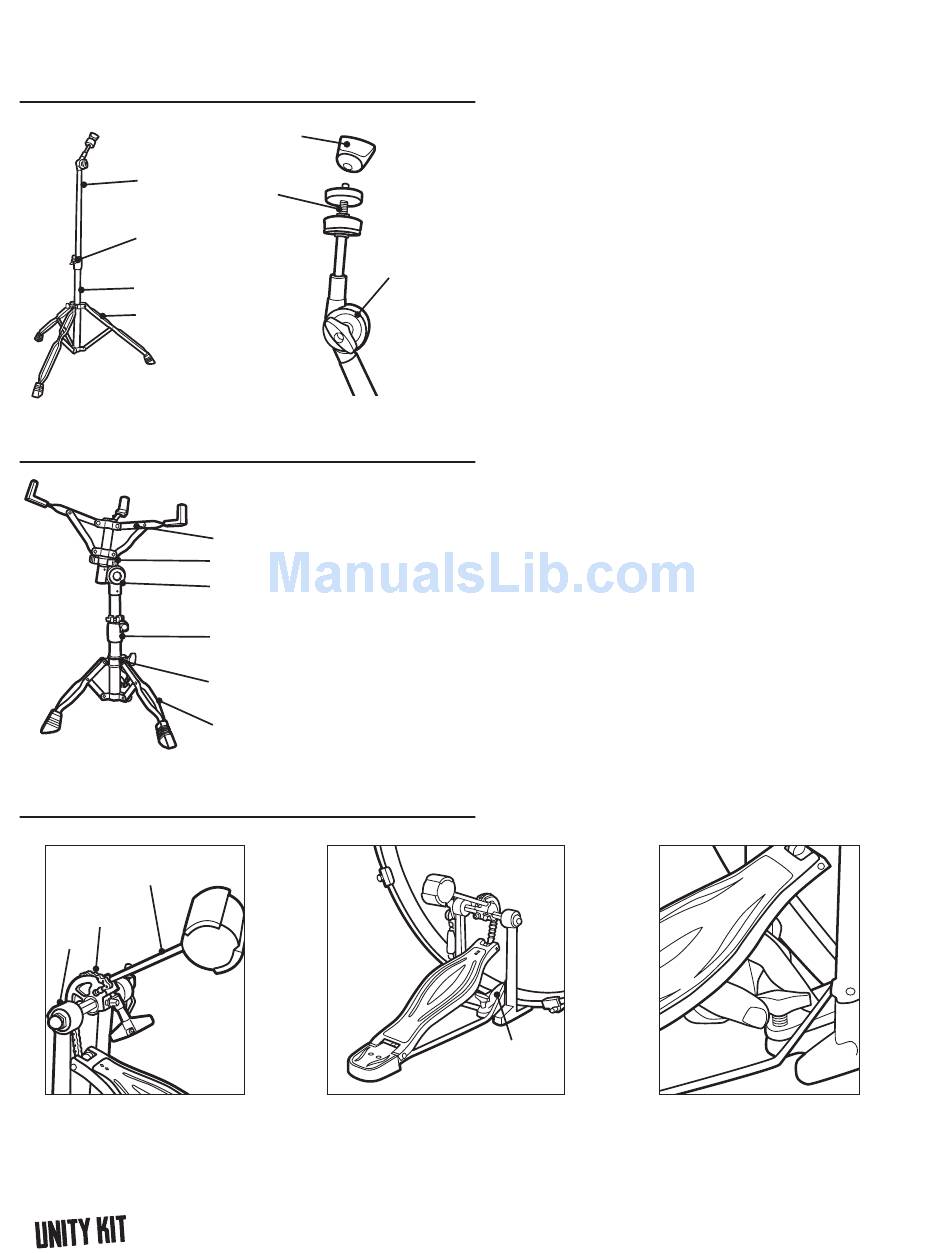

Cymbal Stand Assembly

Upper Tube
Wing Nut
Stand Base
Legs
Figure I

Snare Drum Stand Assembly

Figure K

Attaching the Bass Drum Pedal

Beater
Sprocket
Pedal
Figure L
1. Insert the beater into the
bass drum pedal sprocket
and tighten with the
drum key. Figure L.
D r u m S e t O w n e r ' s M a n u a l
Cymbal
Wing Nut
Cymbal
goes here
Tilter
Adjustment
Figure J
Snare Basket
Basket Adjustment Wheel
Tilter
Assembly
Height
Adjustment
Stand Base
Adjustment
Legs
2. Attach bass drum
pedal to the bass
drum hoop via the toe
clamp. Figure M.
1. Extend legs to open position. Tighten wing nut.
2. Slide upper tube into stand base and set
desired height by tightening wing nut. Figure I.
3. Place 18" Ride Crash cymbal in between top
and bottom felt. Tighten Cymbal Wing Nut
above cymbal only enough to hold cymbal
and felts, but loose enough to let cymbal
move freely when struck. Figure J.
4. Set desired cymbal angle using tilter
adjustment.
1. Extend legs to open position and tighten wing nut.
2. Insert upper section that includes snare basket
into stand base and tighten the wing nut at the
desired height.
3. Adjust the basket to the desired angle with the
tilter assembly.
4. Place drum in snare basket. The basket should
be adjusted to fit and grip the drum, by tightening
Basket Adjustment Wheel counter clockwise.
Figure K.
Toe Clamp
Figure M
6
Figure N
3. Tighten the wing nut
on the toe clamp
until secure. Figure N.
