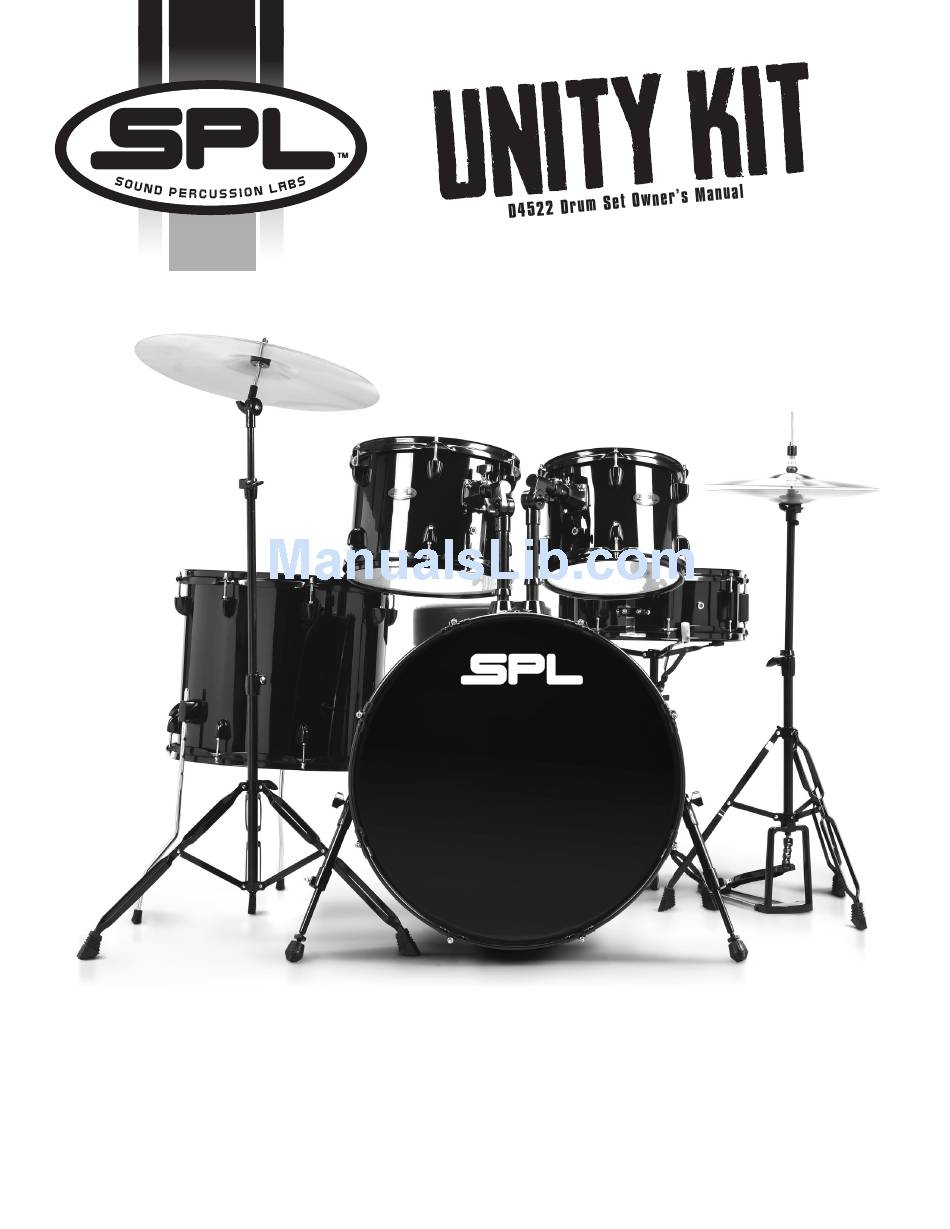

5-Piece Complete Drum Set
( D4522 )
S o u n d P e r c u s s i o n L a b s . c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UNITY KIT D4522 and is the answer not in the manual?

Questions and answers

Related Manuals for SPL UNITY KIT D4522

Summary of Contents for SPL UNITY KIT D4522

  • Page 1 5-Piece Complete Drum Set ( D4522 ) S o u n d P e r c u s s i o n L a b s . c o m...

  • Page 2: Table Of Contents

    5-Piece D4522 Thank you for purchasing this kit from Sound Percussion Labs’ outstanding line of drums, percussion and hardware. They offer unlimited enjoyment and will create a solid foundation for your playing. These instructions should be used as only a general guide. Make adjustments for your comfort and playing style.

  • Page 3: D4522 Components

    5-Piece Components D4522 Tom Arms 10” Tom 12” Tom Hi-Hat Cymbals Crash/Ride Cymbal Cymbal Stand 14” Snare Hi-Hat Cymbal Stand Remo Batter Head 16” Floor Tom Snare Drum Stand Floor Tom Legs Drum Key Drum Throne 22” Bass Drum Resonate Head Bass Drum Pedal DRUMS INCLUDES: HARDWARE INCLUDES:...

  • Page 4: Bass Drum Assembly And Positioning

    1. Place the Bass Drum on a flat surface with the Bass Drum Spurs facing as pictured. Place the Resonant Side Ebony Drum Tom Mounting Front Head Head with the SPL Logo onto the shell centering the logo Bracket with Logo along and in line with the Tom Mounting Bracket. Then place one of the Hoops bevel side down onto the Drum Head.

  • Page 5: Floor Tom And Leg Assembly

    Floor Tom and Leg Assembly Triple Flange Tension Rod Steel Hoop 1. Position the Floor Tom as shown in Figure E. Place the Batter Side Clear Head over the top of the shell. Drum Head Place one Triple Flange Steel Hoop onto the Drum Head. 2.

  • Page 6: Cymbal Stand Assembly

    Hardware: D4522 Cymbal Stand Assembly Cymbal Wing Nut 1. Extend legs to open position. Tighten wing nut. Cymbal 2. Slide upper tube into stand base and set Upper Tube goes here desired height by tightening wing nut. Figure I. 3. Place 18” Ride Crash cymbal in between top Wing Nut Tilter and bottom felt.

  • Page 7: Hi-Hat Cymbal Stand Assembly

    Hi-Hat Cymbal Stand Assembly Hi-Hat 1. Slide upper tube over the hi-hat pull rod and Pull Rod into leg assembly. Tighten the wing nut at Cymbal Cup desired height and secure Memory Lock. Figure O. Upper Tube 2. Place one hi-hat cymbal over the hi-hat rod Memory Lock and onto the cymbal cup with the bottom Wing Nut...

  • Page 8: Assembling The Drum Throne

    Assembling the Drum Throne Seat Top 1. Fold out legs of Tripod Leg Base. Tighten Wingnut. Wingnut 2. Place upper tube into base and tighten height Figure R adjustment bolt and wing nut. Use the second hole position as shown or adjust the height of the throne for your own comfort.
