Jammin X2 Pro Instruction Manual page 27

56

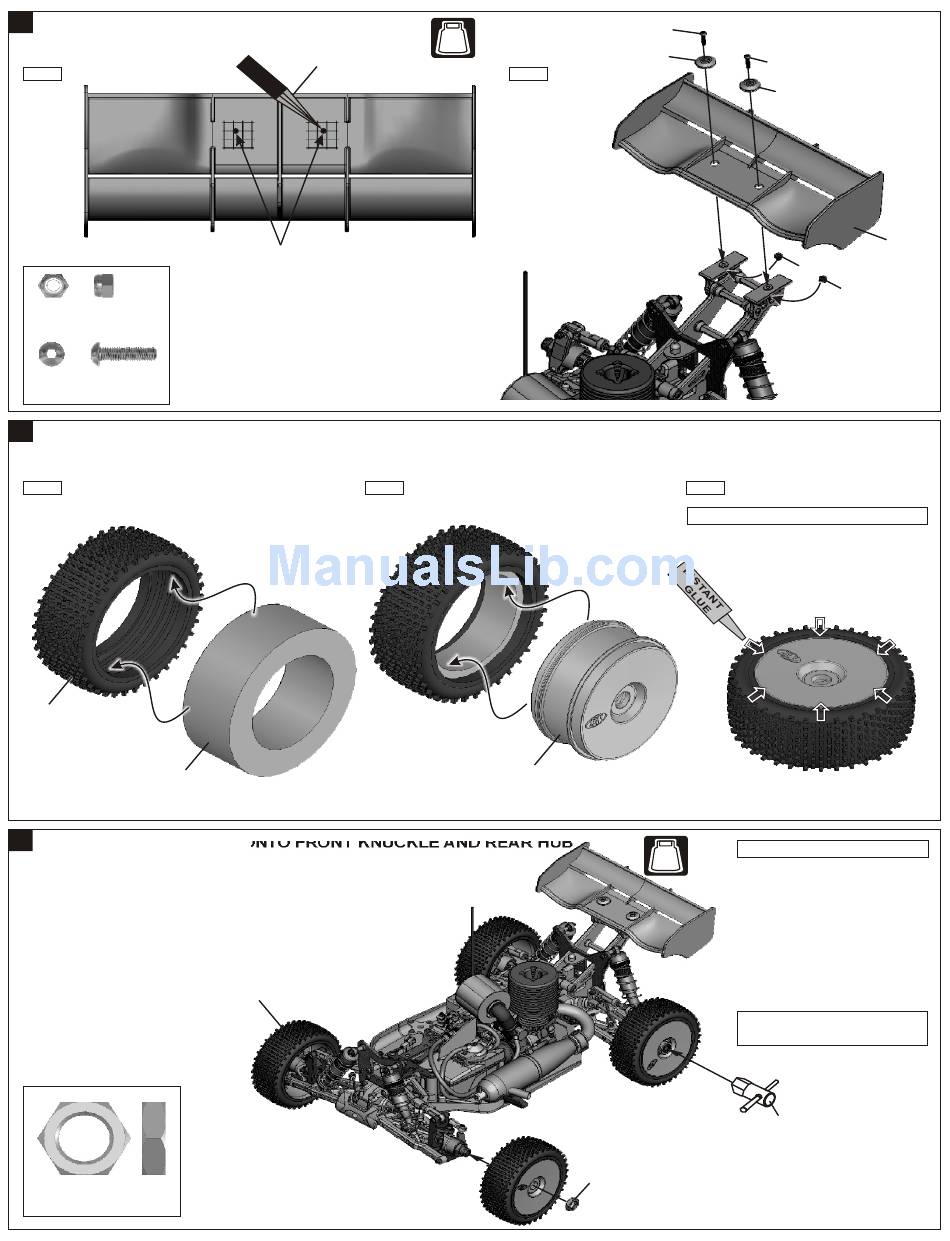

ASSEMBLY OF THE WING
Step 1
94041
3mm
.....x2
Nylon Nut
94004
3x12mm .....x2
Hex Screw
57
ASSEMBLY OF THE TIRES AND WHEELS
Step 1
80003-Revolver Proline M2
1/8 Tires(Option)
81098-Yellow
81099-Red
1/8 Inner Foam Donut(Option)
58
ASSEMBLY OF THE TIRE ONTO FRONT KNUCKLE AND REAR HUB
*Assembled Tire and Wheel
40550
Wheel Nut .....x4
Body Reamer (Not included)
*Drill two 7mm holes for mounting.
Step 2
NO.4
BAG
Step 2
86056-White
86057-Yellow
86058-Orange
40550
3x12mm
40542
3x12mm
40542
3mm
Step 3
*Apply instant glue into the groove of the wheel.
10239 Ca Glue
NO.2
Assemble both right and left sides
BAG
NO.4
*To tighten the wheel nut, use M-35
(17mm) wheel nut tool.
40240
16015
3mm
