Jammin SCRT10 Instruction Manual

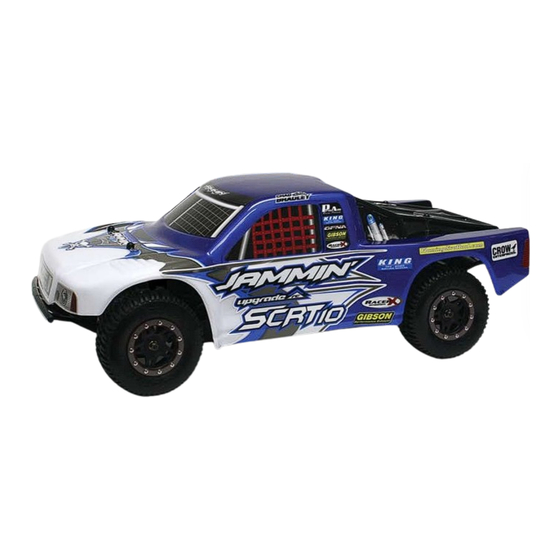

1/10th scale electric 4wd short course racing truck
Hide thumbs Also See for SCRT10:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCRT10 and is the answer not in the manual?

Questions and answers

Related Manuals for Jammin SCRT10

Summary of Contents for Jammin SCRT10

  • Page 3 PLASTIC PARTS FOR USE 37100 40921 SHOCK ABSORBER BUMPER & RADIO TRAY POST & BODY POST (THE “X” PARTS ARE NOT USE) (THE “X” PARTS ARE NOT USE) 40839 40836 FRONT C HUB FRONT & REAR LOWER ARM 40835 40840 DIFF.
  • Page 4 PLASTIC PARTS FOR USE 40944 40943 REAR BUMPER FRONT BUMPER 37650 BALL END (4mm) (THE “X” PARTS ARE NOT USE) 40945 40946 REAR BUMPER BRACE BATTERY CASE & RECEIVER BOX (THE “X” PARTS ARE NOT USE)
  • Page 5 ASSEMBLY OF THE FRONT AND REAR DIFF. *Build two differentials for front and rear. Step 2 Step 1 30780 4x4 mm 2x12.8mm Pin ..x4 30780 94034 4x4mm Set Screw ..x2 40808 40808 37450 40009 30780 P6 O-Ring ..x4 37450 40803 40009 40835 40009...
  • Page 6 ASSEMBLY OF THE CENTER DIFF. 2.6x10mm Step 1 Step 2 Tighten 30776 30776 4x10mm Washer 40805 ..x8 30773 94046 *Tighten the diff screws in this order. 2.6x10mm Flat Head Screw ..x4 40011 30773 Cross Pin ..x2 Put the Diff. Oil #5000 for center.
  • Page 7 ASSEMBLY OF THE FRONT LOWER ARMS * A 3x8mm set screw is used to adjust ride-height. 94035 3x8mm Ensure Set Screw ..x2 Free 3x8mm 40836 Movement 94004 40837 3x12mm Hex Screw ..x2 40825 3x53mm Arm Shaft ..x2 40825 Ensure * Notice the direction of the front lower arm 40837 Free holder in rear.
  • Page 8 ASSEMBLY OF THE FRONT SUSPENSION ARMS Assemble both right and left sides. 94001 3x4mm Hex Screw ..x2 94005 3x15mm Hex Screw ..x2 Ensure 40823 Free 3x25.8mm Arm Shaft Movement ..x2 3x4mm 40823 3x15mm ASSEMBLY OF THE FRONT STABILIZER Assemble both right and left sides. 94035 3x8mm Set Screw...
  • Page 9 ASSEMBLY OF THE SERVO SAVER 40810 Step 1 Step 2 Step 3 Ensure Free Movement 37220 King Pin Bushing 40922 40834 ..x2 40834 94002 3x8mm Hex Screw ..x2 40834 37360 37360 Servo saver spring preload. 37220 *Approx. 0.5mm 37220 3x8mm 37360 40809 3x8mm...
  • Page 10 ASSEMBLY OF THE FRONT BODY POST Assemble both right and left sides. Step 1 Step 2 94004 40947 3x12mm Hex Screw ..x4 94005 40947 3x15mm Hex Screw ..x2 94054 2.6x15mm Screw ..x2 40947 3x12mm 2.6x15mm 40947 3x15mm 3x12mm ASSEMBLY OF THE FRONT BODY STAY ONTO FRONT GEAR CASE 94041 Nylon Nut ..x2...
  • Page 11 ASSEMBLY OF THE FRONT BUMPER 94005 3x15mm Hex Screw ..x2 40943 3x15mm ASSEMBLY OF THE REAR GEAR CASE 4x4mm 3x10mm Step 1 Step 2 40921 40840 37430 40806 5x11mm Ball Bearing ..x2 37430 38254 3x10mm 37430 38254 12x15x0.25mm Shim 40804 ..x2 94003 40840...
  • Page 12 ASSEMBLY OF THE REAR CENTER BRACE 3x15mm 94003 3x10mm Hex Screw ..x1 94005 3x15mm 40947 Hex Screw ..x1 40947 40947 3x10mm ASSEMBLY OF THE REAR LOWER ARMS * A 3x8mm set screw is used to adjust ride-height. 94035 3x8mm Set Screw ..x2 Ensure Free...
  • Page 13 ASSEMBLY OF THE REAR SUSPENSION ARMS Assemble both right and left sides. 3x12mm 37100 30403 6mm Ball ..x4 40828 (3x60mm) 30403 94003 37100 3x12mm Hex Screw ..x2 30403 94005 3x15mm Hex Screw ..x2 *Approx. 47mm *ｬ 47mm 3x15mm ASSEMBLY OF THE REAR STABILIZER Assemble both right and left sides.
  • Page 14 ASSEMBLY OF THE REAR BODY POST Assemble both right and left sides. Step 1 Step 2 94004 3x12mm 40947 Hex Screw ..x4 94005 40947 3x15mm Hex Screw ..x2 94054 2.6x15mm Screw ..x2 40947 3x12mm 2.6x15mm 40947 3x15mm 3x12mm ASSEMBLY OF THE REAR BODY STAY ONTO REAR GEAR CASE Step 1 Step 2 94041...
  • Page 15 ASSEMBLY OF THE REAR BUMPER Assemble both right and left sides. 3x18mm 40944 94006 3x18mm Hex Hex Screw ..x2 ASSEMBLY OF THE REAR BUMPER 94003 3x10mm Hex Hex Screw 40944 ..x6 3x10mm 3x10mm 3x10mm MOTOR INSTALL Step 1 Step 2 94034 4x4mm Motor (Not included)
  • Page 16 ASSEMBLY OF THE MOTOR MOUNT 40844 ASSEMBLY OF THE CENTER DIFF. PLATE Step 1 Step 2 3x10mm Notebook paper 3x10mm 40946 *Use notebook paper to set gear backlash between spur gear and motor gear, apply pressure while tightening the motor and then pull out the paper.
  • Page 17 ASSEMBLY OF THE FRONT GEAR CASE ONTO CHASSIS 94019 3x10mm Flat Head Hex Screw ..x10 3x10mm 3x10mm 3x10mm 3x10mm 3x10mm ASSEMBLY OF THE REAR GEAR CASE ONTO CHASSIS 94019 3x10mm Flat Head Hex Screw ..x4 94021 3x15mm Flat Head Hex Screw ..x4 40943 3x10mm...
  • Page 18 ASSEMBLY OF THE STEERING SERVO AND STEERING SERVO MOUNT Step 1 Step 2 3x8mm 94040 3x8mm Washer ..x4 40946 94002 3x8mm Hex Screw ..x5 30661 3x8mm 30661 Futaba HiTech Sanwa/Airtronics 3x8mm * Use the screw provided with 40946 3x8mm * Choose the right servo horn adapter for your servo. your servo .
  • Page 19 ASSEMBLY OF THE ELECTRIC SPEED CONTROLLER ONTO CONTROLLER MOUNT Electric Speed Controller (Not Included) *Use adhesive Doublesided tape to secure your Speed Controller. ASSEMBLY OF THE RECEIVER INTO RADIO CASE 3x12mm 3x8mm 40946 *Plug in your electric speed controller wire and servo wire to your receiver. Receiver (Not Included) 94002 3x8mm...
  • Page 20 ASSEMBLY OF THE BATTERY CASE ONTO CHASSIS 40946 94019 3x10mm Flat Head Hex Screw ..x4 3x10mm 3x10mm BATTERY INSTALL Battery(Not Included) BATTERY INSTALL 40946 37410...
  • Page 21 *Assemble 2 sets for front. ASSEMBLY OF THE FRONT SHOCKS CORRECT SHOCK ASSEMBLY Step 1 Step 2 *Carefully screw the shock shaft into the bottom of the plastic 37100 *Fit the o-ring into groove before ball until the distance assembly. between the ball end 37967 and the shock body...
  • Page 22 ASSEMBLY OF THE WHEEL BEAD LOCKS *Make four tires that are the same. 94057 2x6mm 2x6mm Hex Screw ..x44 40951 GRAY 40939 RED 40940 BLUE 40949 TIRES 40952 SPONGE ASSEMBLY OF THE TIRE ONTO FRONT KNUCKLE AND REAR HUB ssembled t ire and wheel.
  • Page 23 ASSEMBLY OF THE BODY Step 1 Step 2 *Before cutting and making holes in the body, put the unpainted body on the chassis *Use body reamer or drill to make two 8mm holes in the front and two 8mm holes in the rear. to confirm the mounting position and location for the holes.
  • Page 24 ASSEMBLY OF THE TRANSPONDER CUT THE RADIO CASE (ONLY IF YOU HAVE PERSONAL TRANSPONDER) Step 2 Step 1 Knife Step 3 *Bend the cut part as picture shown. ASSEMBLY OF THE TRANSPONDER Step 1 Step 2 3x12mm 3x5mm 3x8mm *Connect transponder wire to channel 3 on receiver.
  • Page 25 ASSEMBLY OF THE ELECTRIC PARTS FOR BRUSH MOTOR (NOT INCLUDED) BLACK 540 Motor BLUE CH.2 CH.1 ORANGE BATT Switch CH.2 Antenna CH.1 Receiver Electric Speed Controller Steering Servo Ni-Mh battery( Not included FOR BRUSHLESS MOTOR (NOT INCLUDED) Brushless Motor CH.2 CH.1 BATT CH.2...
  • Page 26 SETTING GUIDE FRONT CAMBER ANGLE SETTING REAR CAMBER ANGLE SETTING Positive Negative Positive Negative Turnbuckle Turnbuckle Place the model car on flat surface. Raise the chassis to it's maximum clearance before the wheels leave the ground. Adjust the length of the front and rear upper arms so that the wheels are right angle to the ground.
  • Page 27 SCRT10 Set-Up Sheet Date:________________ Driver:_________________ Track:_______________/_______ Air Temp:_____80F_____ Surface Dsc. ______WATERED & DRY_______ Avg. Lap Time:_______"______ Front Suspension Front Roll Center Steering Ackerman Location Shock Spring: _______Gray______ Shock Piston: Shock Oil wt: ________ Shock Length:________ (Center to Center) Toe-IN: _________...
  • Page 29 SCRT10 Set-Up Sheet Date:________________ Driver:_________________ Track:_______________/_______ Air Temp:_____80F_____ Surface Dsc. ______WATERED & DRY_______ Avg. Lap Time:_______"______ Front Suspension Front Roll Center Steering Ackerman Location Shock Spring: _______Gray______ Shock Piston: Shock Oil wt: ________ Shock Length:________ (Center to Center) Toe-IN: _________...
  • Page 31 SCRT10 Set-Up Sheet Date:________________ Driver:_________________ Track:_______________/_______ Air Temp:_____80F_____ Surface Dsc. ______WATERED & DRY_______ Avg. Lap Time:_______"______ Front Suspension Front Roll Center Steering Ackerman Location Shock Spring: _______Gray______ Shock Piston: Shock Oil wt: ________ Shock Length:________ (Center to Center) Toe-IN: _________...
  • Page 33 34975 JAMMIN SCRT PART LIST OFNA DESCRIPTION RETAIL OFNA DESCRIPTION RETAIL 30341 BALL END WITH COLLAR, 6mm 3.95 40844 CENTER DIFF. MOUNT 7.95 30400 FRONT STEERING TIE RODS, 3PCS. 3.95 40845 SHOCK SHAFT, FRONT 3x36.5mm 7.95 30403 6mm BALL, STEEL (NO COLLAR) 4.95 40846...
  • Page 34 JAMMIN SCRT OPTION PARTS 40873 CNC 7075 REAR SHOCK TOWER 40898 CNC 7075 REAR UP-RIGHT 40905 GRAPHITE FRONT PLATE SCRT 40888 CNC ALUM. KNUCKLE SCRT 40872 CNC 7075 FRONT SHOCK TOWER 40875 FRONT OR REAR UNIVERSAL 40899 SPUR GEAR 46T LIGHT WEIGHT...
  • Page 35 OWNER’S REGISTRATION CARD OFNA Racing congratulates you on your purchase of our fine OFNA Product. With proper maintenance and han- dling this kit will provide many hours of enjoyment. The registration card should be filled out and mailed to OFNA Racing within 10 days of purchase date. In the event that the kit is incomplete or component parts are broken due to error in manufacturer, contact your dealer from which you purchased the kit for replacement part or call OFNA at (949) 586-2910 for your nearest dealer location.
