Kamoer X4 User Manual

Dosing pump
Hide thumbs Also See for X4:

Advertisement

Quick Links

See also: User Manual
X4 Dosing Pump
User's Manual For IOS
(V: 1.0)
Kamoer Fluid Tech (Shanghai) Co., Ltd.
www.kamoer.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the X4 and is the answer not in the manual?

Questions and answers

Jocemir
July 1, 2025

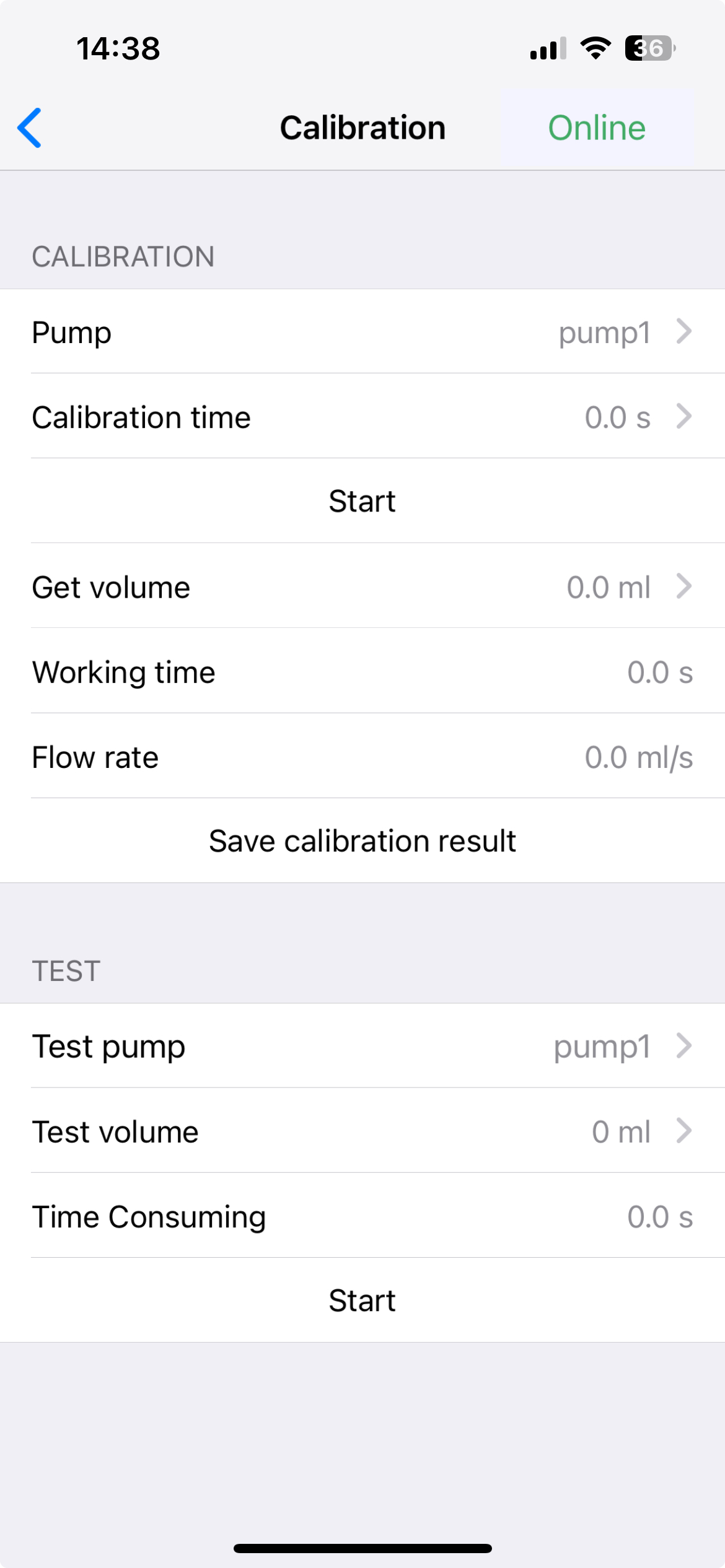

Hello, the software on the iphone Calibration mode does not work. All other functions work normally. Can you help me?

User image 68641dece7a2d
0

Related Manuals for Kamoer X4

Summary of Contents for Kamoer X4

  • Page 1 X4 Dosing Pump User's Manual For IOS (V: 1.0) Kamoer Fluid Tech (Shanghai) Co., Ltd. www.kamoer.com...

  • Page 2: Table Of Contents

    Contents 1. How to Use............................1 1.1 Download Software........................1 1.2 Connection Settings........................2 1.3 Software Interface........................8 2. Maintenance............................16 2.1 Chemical Compatibility......................16 2.2 Storage............................16 3. Technical Support..........................16...

  • Page 3: How To Use

    1 How to use 1.1 Download Software Scan QR code to download the IOS software.

  • Page 4: Connection Settings

    1.2 Connection Settings 1> Direct connection Preparations the X4 1, An iphone and install control software; power on. Step 1: Search the network: "KAMOER-X4-(The X4 SN No.)"...
  • Page 5 Step 3: Open X4 software； Step 4: Login. Tips: 1.If you cannot find the network "KAMOER-X4-(The X4 SN No.)", reset the wifi on the How to reset wifi: Press ESC to the X4 starting screen, press the "SET " button select 4 "Options"...
  • Page 6 1 Install the latest control software of X4 on the phone； 2 Phone connected to your home router； Step 1: Take out the pump, power on, wait for X4 shows the main interface Step 2: Press the "SET" button to enter the menu.
  • Page 7 Step 7: Open X4 control app, click “More”, choose Settings, click "Auto connect."...
  • Page 8 Step 8: 1 In the password input box, enter the password of the family router; 2 Click the "Connecting" button to start “Auto connect”.
  • Page 9 Step 9: 1 When “Auto connect” is complete, X4 pump will make a beep, the screen returns to the main screen; 2 iPhone: Display OK, and displays the IP address Note: If failed, power off the X4. Start again from the first step.

  • Page 10: Software Interface

    1.3 Software Interface The initial interface (time / temperature interface) Upper right corner shows "Online" indicates the phone has connected to the pump; "offline" indicates that there is no connection; Time: displays the current time and date; Temperature alarm: select whether temperature alarm; Unit: Optional Celsius or Fahrenheit;...
  • Page 11 Automatic Interface Switch: Channel switch can turn off / on the pump; Run Mode: "every day", "every other day", "every three days", "weekly" optional; Start time: 00: 00-23: 59 minutes Optional (Note: you can set the hours, minutes can not be set); End Time: 00: 00-23: 59 minutes Optional (Note: you can set the hours, minutes can not be set);...
  • Page 12 Manual interface Pump1: Pump 1 Add amount: Manually dosing the total amount (plus stops automatically after); Start: Start / stop switch; Pump2, Pump3, Pump4 the same as Pump1;...
  • Page 13 Status Screen Pump1: Pump 1 Capacity: Volume of titrant bucket; Remaining: current remaining amount of titrant; Days remaining: Number of days that can dose under the dosing amount per day; Pump2, Pump3, Pump4 same as Pump1;...
  • Page 14 More interface Calibration: flow calibration, the calibration of the flow rate of each pump head; Setting: function parameters; Edit: Shortcuts position custom settings;...
  • Page 15 Calibration Interface Pump: Optional pump1, pump2, pump3, pump4; Calibration Time: time of the pump head to run calibration; Start: Start / Stop; Get Volume: During the calibration time,the volume of liquid you get; Working time: the calibration time of the actual operation time of the pump; Flow rate:the pump head’s flow rate;...
  • Page 16 Note: 1, Before the calibration, empty the air inside the tube; 2, The test function can test the accuracy of the calibration;...
  • Page 17 Set interface Network settings: Default connection ip address: 10.10.100.254 Port:8899 Set the name: the name of the pump head can be modified; Auto connect: one button connected to the pump; Anti-chemical interference: set the delay time of each pump head to prevent chemical interference at the same time start.

  • Page 18: Maintenance

    2.Maintenance 2.1 Chemical compatibility X4 standard pump tubing is Pharmed BPT tube, it is suitable for most occasions.If you are transferring a specific liquid, please contact the manufacturer to get help. 2.2 Storage ● When the pump is stored for a long time that does not run, you should take out the tube from the pump head to avoid deformation.
