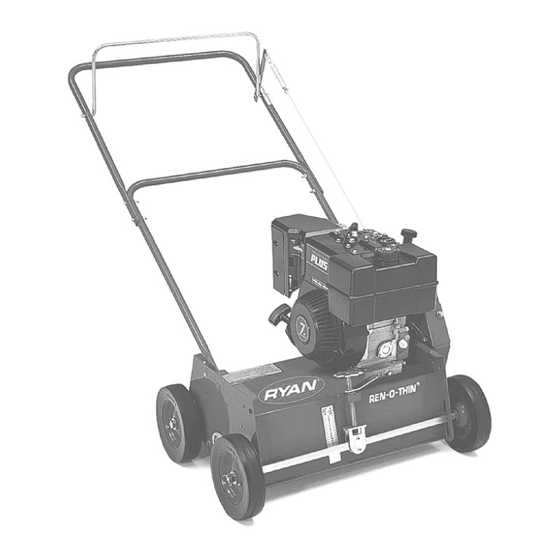

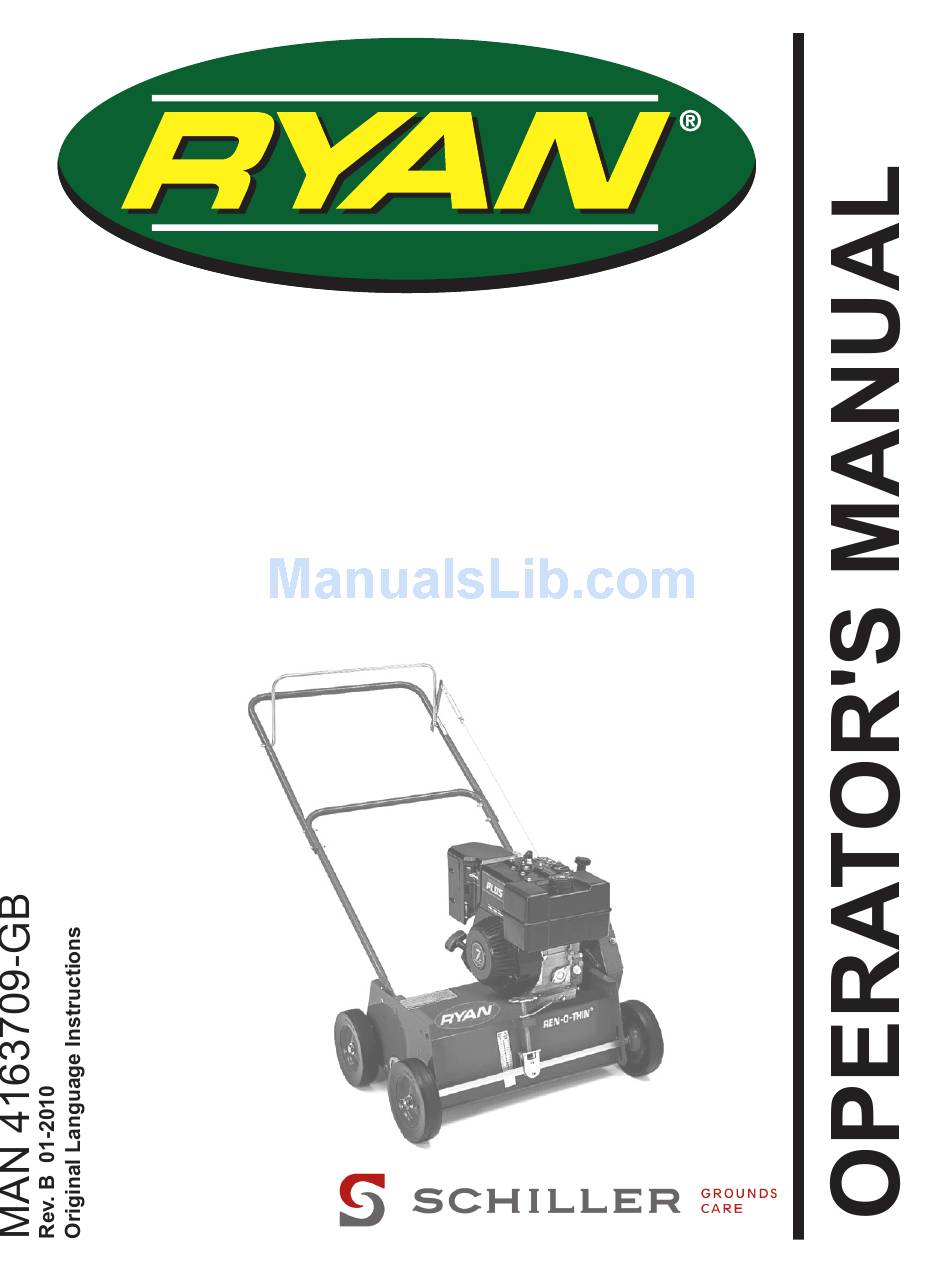

- Page 1 PUSH-TYPE SCARIFIER- POWER RAKE 744865D REN-O-THIN BRIGGS & STRATTON 744877A REN-O-THIN HONDA...
- Page 2 CALIFORNIA WARNING Proposition 65 Warning Diesel engine exhaust and some the engine exhaust from this product of its constituents are known to the contains chemicals known to the State State of California to cause cancer, of California to cause cancer, birth birth defects and other reproductive defects or other reproductive harm.
-
Page 3: Table Of Contents
See a ryan dealer for any service or parts needed. ryan service ensures that you continue to receive the best results possible from Schiller Grounds Care, inc. products. You can trust ryan replacement parts because they are manufactured with the same high precision and quality as the original parts. -
Page 4: Safety
SAFETY REN-O-THIN NOTICE !!! this symbol means: ATTENTION! Unauthorized modifications may present extreme BECOME ALERT! safety hazards to operators and bystanders and could also result in product damage. Your safety and the safety of others is involved. Schiller Grounds Care, inc. strongly warns against, rejects and disclaims any modifications, add-on Signal word definitions accessories or product alterations that are not... - Page 5 SAFETY REN-O-THIN PREPARING FOR SAFE OPERATION Operator preparation and training Read the Operation & Safety SITE PREPARATION AND CIRCUMSTANCES Manual – Evaluate the terrain to determine how to safely – if an operator or mechanic perform the job. Only use accessories and cannot read, it is the attachments approved by the manufacturer.
- Page 6 SAFETY REN-O-THIN MACHINE PREPARATION – Check blade clutch operation. Adjust or have any problems repaired before using. STARTING – Do not tamper with or defeat safety devices. – Start only according to instructions in this manual Keep guards, shields and interlock safety devices or on the machine.
- Page 7 SAFETY REN-O-THIN INTERRUPTING OPERATION MANUEVERING SAFELY Before leaving the operator's position: In General - Park on level ground. Operating on Slopes - Disengage the blades. USE EXTRA CARE WHEN WORKING ON SLOPES - Shut off the engine. BEFORE OPERATING ON A SLOPE, EVALUATE Disengage the blades and wait until the blades THE RISKS INVOLVED.
- Page 8 SAFETY REN-O-THIN M AINTENANCE AND STORAGE SAFETY Keep the machine and fuel containers in a locked In general storage place to prevent tampering and to keep Maintain machine according to manufacturer's children from playing with them. schedule and instructions for maximum safety Blades and best results.
-
Page 9: Labels
LABELS REN-O-THIN -thrown Object -read and understand Hazard operator manual. -Keep bystanders -replace if lost or release Bail to away. damaged. Disengage Blade. Move Bail towards Blades Cut handle to engage Attention! -Amputation Hazard blades. Wear hearing -Keep hands and feet clear. protection and safety -remove spark plug wire glasses. -
Page 10: Controls
CONTROLS REN-O-THIN FUEL SHUT OFF(A) Move to the "OFF" position to shut off the fuel whenever transporting the machine by trailer or storing it. Move to the "ON" position before starting the engine. SWITCH (B) Move to the "OFF" position to stop the engine. Move to the "ON"... -
Page 11: Operation
OPERATION REN-O-THIN PRE-OPERATION CHECK LIST (OPERATOR'S RESPONSIBILITY) review and follow all safety rules and safety Check the reel for bent or broken blades; replace decal instructions. as necessary. inspect area and remove stones, branches or Check that all safety decals are installed and in other hard objects that might be thrown, causing good condition. - Page 12 When replacement parts are required, use genuine Ryan parts or parts with equivalent characteristics, including type, strength and material. Failure to do so may result in product malfunction and possible injury to the operator and/or bystanders.
- Page 13 OPERATION REN-O-THIN STARTING THE ENGINE 1. turn fuel shut-off valve A to "ON" position. 2. Push stop switch B to "ON" position. 3. Move manual choke control lever C to "CHOKE" position. 4. Move engine throttle control lever D to "FASt" position.
-
Page 14: Adjustments
ADJUSTMENTS REN-O-THIN BLADE HEIGHT ADJUSTMENT Blade height is adjusted by loosening the locking lever L and turning the adjusting knob M to raise or lower the front wheels. After installing any reel, make the first adjustment on a hard level surface. Adjust the blades to 1/8"... -
Page 15: Belts/ Blade Replacement
BELT/BLADE REPLACEMENT REN-O-THIN BELT REPLACEMENT Belt tension is maintained by a spring loaded idler, controlled by the clutch bail. No belt tension adjustment is necessary when proper belts are used. NOTE: A matched pair of belts must be used for correct operation. -
Page 16: Belts/ Blade Replacement
BELT / BLADE REPLACEMENT REN-O-THIN FiXED BLADE PULLEY END LOCK COLLAR SHAFT NUT END SPACER START SPACER PULLEY END COTTER PIN FLAiL BLADE... -
Page 17: Storage
STORAGE REN-O-THIN STORAGE INSTRUCTIONS To put the equipment into service after an to prevent possible explosion or ignition of extended period of storage: vaporized fuel, do not store equipment with fuel in tank or carburetor in enclosure with open flame 1. -
Page 18: Specifications
Touch-up Paint: .5l spray can P/N: 65334 Engines: Starter......... recoil, on/off switch Governor........3600 rPM, no load Model 744865D..Briggs & Stratton Model 121520 type 0120, trim B8 4 cycle 6.5 H.P. Aluminum cylinder with cast iron sleeve Model 744877A..Honda Model GX160 type K1QX2 4 cycle 5.5 H.P. - Page 19 Pedestrian controlled aerators and scarifiers.....EN13684 Sound: Sound levels were determined in accordance with Directive 2000/14/EC and standards EN13684 and iSO 11094. Guaranteed Sound power level:....Model 744865D……..106 dB ....Model 744877A……..102 dB Operator Ear: ....Model 744865D……..88 dB ....Model 744877A……..82 dB...
- Page 22 SCHILLER GROUNDS CARE, INC. ONE BOB-CAT LANE P.O. BOX 469 JOHNSON CREEK, WI 53038 920-699-2000 www.schillergc.com BOB-CAT BUNTON RYAN STEINER...
