Typical MXO2 digital video connections

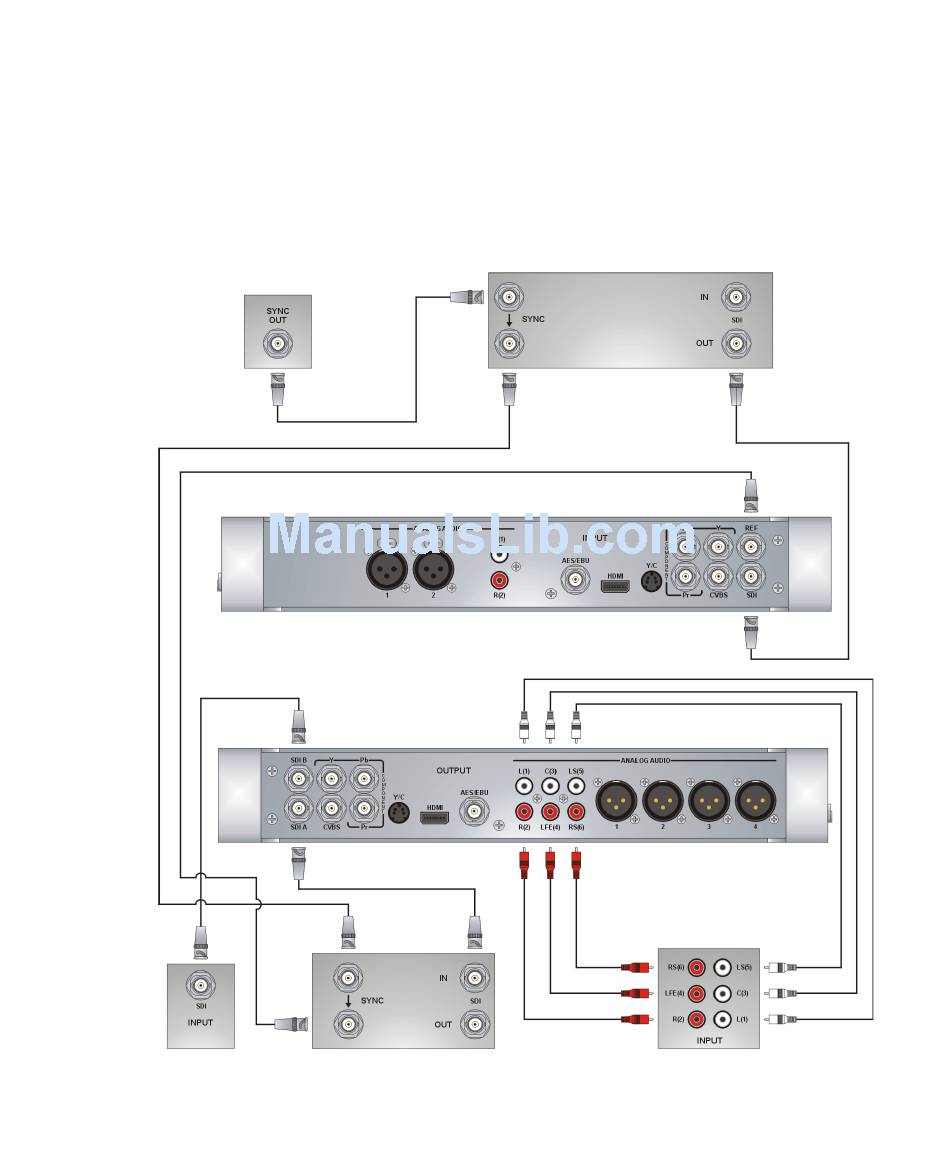

In the following illustration, we've connected a video monitor to view the signal that
will be recorded, and separate source and record decks. You may, however, use the
same deck as both your source and record device by making the input and output
connections to a single deck. We're using SDI connectors for video and audio, and
monitoring the audio on a surround sound speaker system through RCA connectors.
The video is genlocked using a tri-level sync generator.
Tri-level
sync
generator
Video monitor
MXO2 Inputs
MXO2 Outputs
Recorder (Deck 2) Surround sound
speaker system
Typical MXO2 digital video connections
5
Source
(Deck 1)
