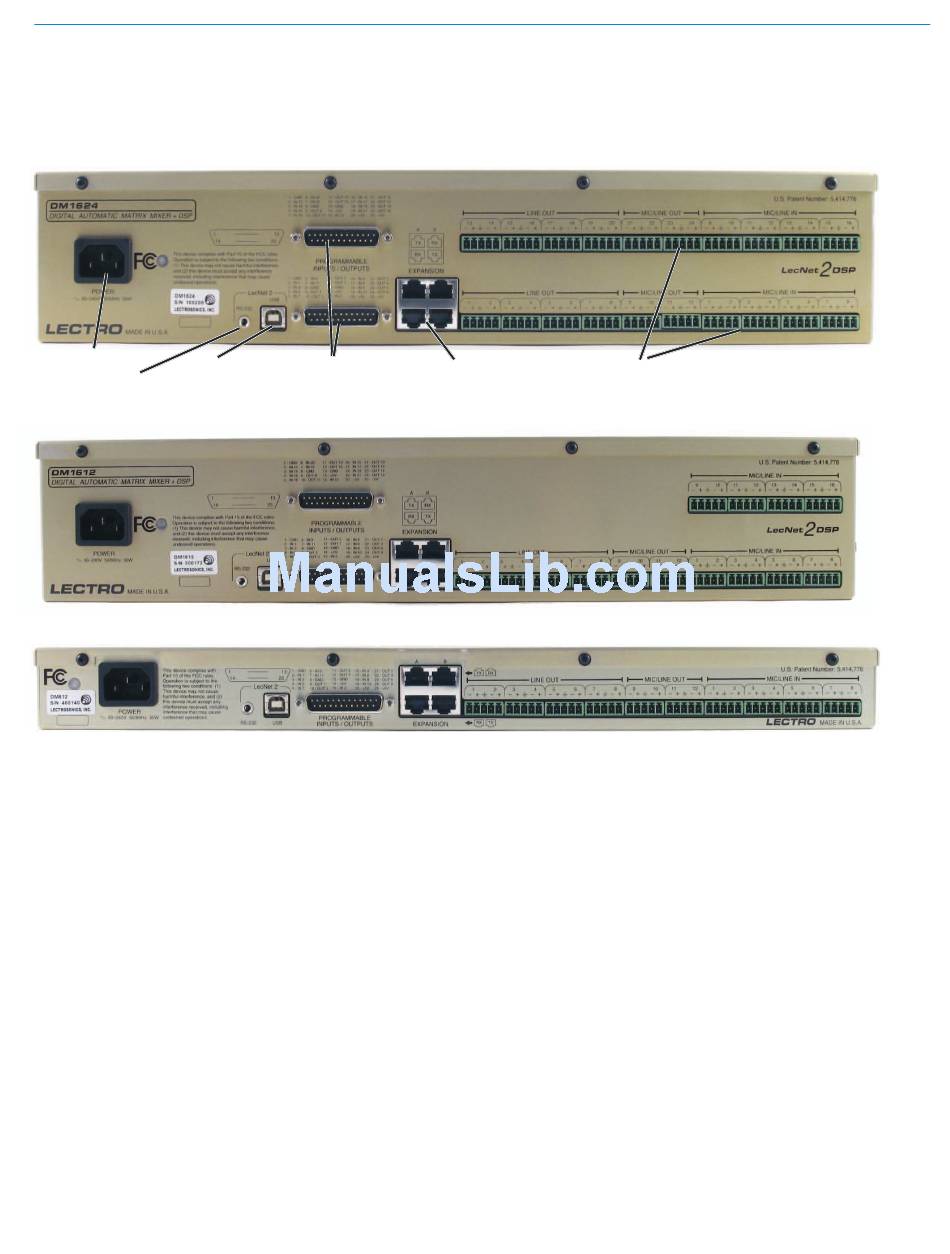

Rear Panels

DM1624F - 16 inputs, 24 outputs
POWER Plug
USB Port
RS232 Port
DM1612F - 16 inputs, 12 outputs
DM812 - 8 inputs, 12 outputs
POWER Plug
Standard NEMA 5-15 three-pin power plug capable of
accepting 100-240 VAC, 47-63 Hz.
RS-232 Port
A serial RS-232 interface is provided for setup and
control via a computer, or for connecting RS-232 serial
control devices from other companies.
USB Port
Standard USB Version 1.1 connector for setup and con-
trol of the DM from a Windows-based computer system
with USB interface.
Programmable Input and Output Ports
Programmable inputs or outputs used to enable control
over a variety of parameters or to indicate either chan-
nel activity or the current state of a programmable input.
Rio Rancho, NM
Programmable Input and
Output Ports
DANI Audio Inputs and Outputs
DANI
DANI, or Digital Audio Network Interface, is used to
connect the digital audio outputs of the master and
slave units in stacked configurations.
Audio Inputs and Outputs
Analog audio input and output connectors. The function
of these inputs and outputs is consistent between units.
Only the number of analog inputs and outputs vary.
