Page 1: User Manual

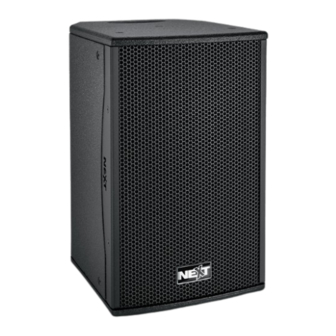

PFA8/PFA8 ACTIVE/Passive Full-Range Speaker USER MANUAL V201611... -
Page 3: Table Of Contents
INTRODUCTION - 1 - UNPACKING - 1 - PFA SERIES OVERVIEW - 1 - SAFETY FIRST - 2 - PFA8 POWER AMPLIFIER AND DSP - 4 - PFA8p - 5 - TECHNICAL SPECIFICATIONS - 6 - WARRANTY - 7 -... -
Page 4: Introduction
Also, a better understanding of some specific features of the PFA8(p) will help you to operate it to its full potential. With a continuous evolution of techniques and standards, NEXT-proaudio, reserves the right to change the specifications of its products without early warning. -
Page 5: Safety First
DANGER – HEARING DAMAGE NEXT PFA Series systems are capable of producing extremely high sound pressure levels and should be used with care. Hearing loss is cumulative and can result from levels above 90dB if people are exposed for a long period. - Page 6 • Precautions should be taken to prevent grounding failure or polarity switch. • It is advised to unplug the PFA8 during storms or when not in use for a long period of time.
-
Page 7: Pfa8 Power Amplifier And Dsp
PFA8 POWER AMPLIFIER AND DSP The PFA8, as all PFA series models, was designed to achieve a simple to use and deploy versatile system. The PFA8 is prepared to be completely plug n’ play, having already six pre-determined configurations that cover almost all situations. -
Page 8: Pfa8P
3- Horiz. Coupled: Frequency response adapted for the sound reproduction with two units, one very next to the other (Low Shelf Filter to compensate the bass coupling) 4- Satellite (Flat): Flat frequency response when playing with a subwoofer (High Pass Filter at 120Hz... -
Page 9: Technical Specifications
Dimensions W x H x D 254 x 417 x 301 mm Net Weight 12.5 kg Shipping Weight 14 kg NEXT PFA8 TECHNICAL SPECIFICATIONS Speaker Type ACTIVE 2-Way Speaker Frequency Response (-6dB) 60Hz – 18.000Hz Calculated Max. SPL (Cont/Peak) 118dB / 124dB (Full-Space) LF: 1 x 8”... -
Page 10: Warranty
5 years for the passive loudspeakers, and 2 years for all other products counting from the date of original purchase. The original receipt of purchase is mandatory for warranty validation purposes, and the product must have been bought from a NEXT- proaudio authorized dealer. -
Page 11: Contacts
NEXT PFA8/PFA8 - User Manual www.next-proaudio.com CONTACTS In case of any doubts or any information just: Write us: NEXT-PROAUDIO Rua da Venda Nova, 295 4435-469 Rio Tinto Portugal Contact us: Tel. +351 22 489 00 75 Fax. +351 22 480 50 97 Send an e-mail: info@next-proaudio.com...
