Trevi GO 2700 KUB User Manual

Digital sport camera wi-fi fhd
Hide thumbs

Advertisement

Quick Links

Download this manual

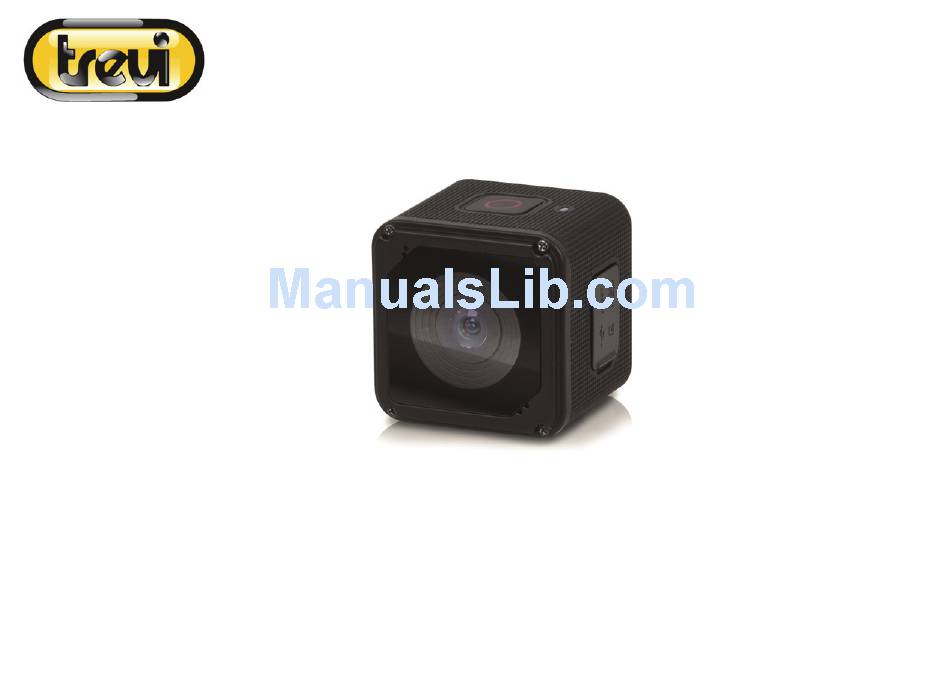

Trevi GO 2700 KUB
Digital Sport Camera Wi-Fi FHD
User's Manual
English
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the GO 2700 KUB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Trevi GO 2700 KUB

Summary of Contents for Trevi GO 2700 KUB

  • Page 1 Trevi GO 2700 KUB Digital Sport Camera Wi-Fi FHD User’s Manual English...
  • Page 2 Foreword Thank you for purchasing our WIFI DV. Before use, please carefully read this User’s Manual for best performance and longer service life of this product, and properly keep this manual for future reference. This manual covers the latest information while it was prepared. The displays and pictures used in this manual are for better understanding of the operation of the product.

  • Page 3: Features And Functions

    System Requirements Microsoft system:Microsoft Window 2000，XP, Vista, 7，8 Operating System Apple system: Mac OS X ver: 10.0.0 or above version Intel Pentium of more than 1GB Hz or other CPU with equivalent performance Internal Memory Larger than 1GB Sound Card The sound card and video card shall support DirectX8 or higher Display Card version.
  • Page 5 1. 1.45-inch color display 2. buzzer 3. Lens 4. Lens Glass Sheet 5. Loudspeaker 6. Charging Indicator (blue) 7. Shutter button 8. Busy indicator (indic. for video/photo mode)(red) 9. Power/Menu 10. WiFi/Selection 11. WiFi Indicator (red) 12. Dust Cover 13. Reset 14.
  • Page 6 I. Using your WiFi DV for the first time 1. Insert a micro SD or a micro SDHC card first, see right picture High speed card of Class 6 or above is recommended. When using professional video mode, Class 10 is required. Turn off your DV before inserting/removing card.
  • Page 7 3. Charging battery While power-off, connect the DV to the PC by a USB cable to charge Built-in lithium battery is applied to this device. the battery; while charging, the charging indicator will remain on. It takes about 3 to 4 hours to fully charge the battery, and the indicator will go off when charging completes.
  • Page 8 5. Mode Preview Start it up, and the camera will directly enter Video Recording mode; under preview mode, press Shutter button to conduct video recording; press Shutter button again, it will stop shooting; if the memory card is full or the battery is low, it will automatically stop shooting also: Video mode Photo mode...
  • Page 9 Icon Name Description Video mode It is under Video mode Current Resolution: 1920x1080 30 frame; 1280x720 60 Video resolution frame/30 frame are optional; Recording Time It indicates the currently available recording time. Quality It indicates excellent current quality. Battery Icon It indicates current battery is full.
  • Page 10 Continuous shooting mode Timelaps mode Icon Name Description Photo mode It is under Photo mode Current photo size: p5M(2592X1944), 12M(4000X3000), Photo size 8M(3264X2448) and 3M(2048X1536) are optional.
  • Page 11 Continuous Shooting 10 photos can be shot continuously; 3/5 photos are optional. Quality It indicates excellent current quality. It indicates current battery is full. Battery icon Number of Photo It indicates current number of photo can be taken. Video mode It is under Video mode Current resolution: 1920x1080 30 frame;...
  • Page 12 Playback mode Photo Example 1. Playback Mode Icon 2. Current File Number/Total Files 3. The date of photo...
  • Page 13 6.3 Frames under Playback Mode Introduction: 6.3.1 Frames of Video Recording File Playback mode icon 2. The date for video recording 3. Current File Number/Total Files 4. Playback Timer 5. Operation Indicator Icon (Press Power Button to stop) 6. Operation Indicator Icon (Press Shutter button for Pause) Note: Under playback mode, press WIFI button to select other photos/video recording files to realize loop selection.
  • Page 14 6.4 Playback Mode Menu Setting Quit from Playback mode, and press Power button to enable the mode interface; select Setting mode, and press Shutter button to enter Menu; then press WIFI button to select Menu; press Shutter button again to enter Sub-menu;...
  • Page 15 mode you need to set, and press Shutter button to enable the Menu; then, press WiFi button to select Menu, and press Shutter button to enter Sub-menu; the chosen item in the Menu will be displayed with background color; press WiFi button again to select secondary sub-men, and press Shutter button for confirmation; press Power button to quit from Menu Setting.
  • Page 16 5. Watch remote control: 1. Buttons on watch remote control: Buttons on the remote control are shown in the picture below 1. Power button 2. Photo button 3. Video button 4. Button indicator (red) 5. Strap 6. Buckle 2. Using the remote control: The watch remote control allows you to power on/off the DV and to take photo or video at 30M away without...
  • Page 17 operating on DV directly; just press a button to achieve the said functions. Remark: press any button the two indicator lamps at both sides will light in red at the same time. 3. Power on/off the DV by remote control Power on: press and hold the button until the indicator goes off, the DV will turn on and the buzzer will beep once.
  • Page 19 APP (support Android and iOS) I. Installing the APP 1. For Android, search for “SYMAGIX2” at Play Store and install the APP according to the prompt; or scan the QR code on the package to install. 2. For iOS, search for “SYMAGIX2” at APP Store and install the APP according to the prompt; or scan the QR code on the package to install.
  • Page 20 will flash, and then remain on after successful connection; 3. Enable Wi-Fi on your phone or tablet, search for wireless AP name WDV800 and connect, the system will display when connection successes; 4. Click the APP icon on your phone or tablet, you can see the preview picture (see picture below) of the DV on your phone or tablet, then you can operate the DV.
  • Page 21 III. iOS APP 1. Install SYMAGIX2 APP (obtained from your vendor or internet) on your iPhone or iPad, the icon will display on the screen; 2. Insert card and power on the DV, press the Wi-Fi button to enable Wi-Fi, the Wi-Fi indicator will flash, and then remain on after successful connection;...
  • Page 22 1. Battery level of the DV 2. White balance 3. Video resolution 4. Setting (enter setting menu) 5. Rest recording time 6. Video button Timelaps mode 8. Photo mode 9. Video mode 10. Playback mode Note: 1. You need to insert a TF card into the DV to take or download picture via your phone or tablet; 2.
  • Page 23 The DV supports plug-and-play function. After power on, the mobile hard disk mode is activated automatically when the DV is connected to PC via USB cable. The icon of the mobile hard disk will display in “My computer”. The photos taken will be saved in I:\jpg folder (I is the volume label of your mobile hard disk which varies);...
  • Page 24 Dimensions 42*42*38mm PRECAUTIONS FOR CORRECT DISPOSAL OF THE PRODUCT The symbol shown on the equipment indicates that waste must be disposed of in “separate collection” and so the product must not be disposed of together with urban waste. The user must take the product to special “separate waste collection centers”...

  • Page 25: Battery Removal

    Dichiarazione di Conformità UE Semplificata Il fabbricante TREVI dicihiara che il tipo di apparecchiatura videocamera GO 2700 KUB è conforme all direttive 2014/53/UE. Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet www.trevi.it...
  • Page 26 For additional information and updates of this product see: www.trevi.it Trevi S.p.A. Strada Consolare Rimini- San Marino, 62 47924 RIMINI (RN) Italy Made in CHINA...
