Trevi GO 2000 WIFI User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Trevi GO 2000 WIFI
Sport Wi-Fi HD Camera
User Manual
English

Advertisement

loading
Need help?

Need help?

Do you have a question about the GO 2000 WIFI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Trevi GO 2000 WIFI

Summary of Contents for Trevi GO 2000 WIFI

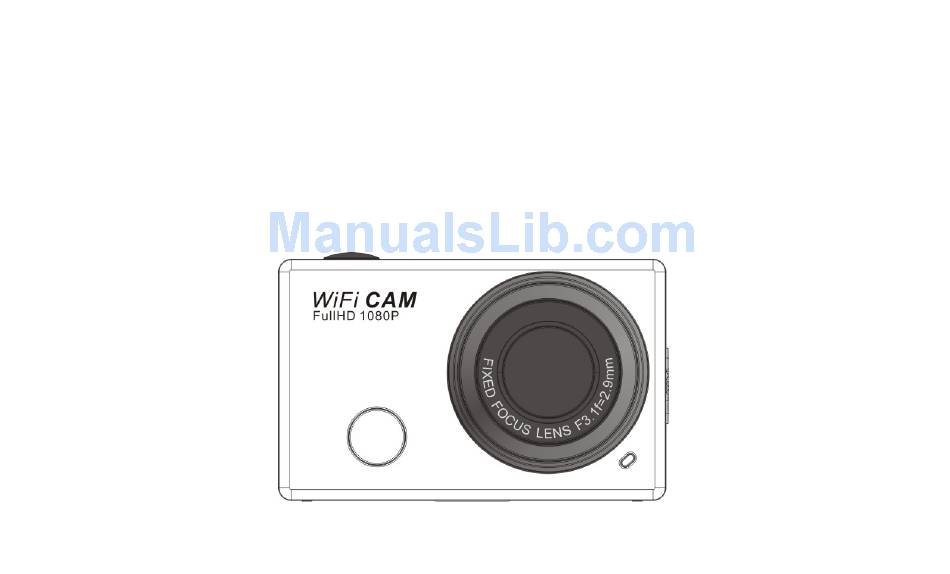

  • Page 1 Trevi GO 2000 WIFI Sport Wi-Fi HD Camera User Manual English...
  • Page 2 Thank you for purchasing this Wi-Fi camera. Before using the camera, please read this manual carefully to maximize its performance. Special notices about the waterproof case  Before sealing the waterproof case, keep the camera housing’s rubber seal clean. A single hair or grain of sand can cause leaking.
  • Page 3 Appearance and buttons Shutter button Micro USB port Built-in microphone Mini HDMI port Status LCD microSD card slot Lens External microphone port Wi-Fi button and Wi-Fi status indicator Battery cover switch Power / Mode button Status LED Infrared signal reception light...
  • Page 4 Status LCD Icons 1. Camera mode 2. Video recording mode 3. Wi-Fi icon (displayed when enabled) 4. microSD card icon (displayed when card inserted)
  • Page 5 5. Photo resolution / video size icon: (a) In camera mode, HI stands for 8 Mega Pixels, and in video recording mode, it stands for FHD (1920x1080, 30fps). (b) In camera mode, LO stands for 5 Mega Pixels, and in video recording mode, it stands for HD (1280x720, 30fps).
  • Page 6 Introduction of working modes There are four modes as in the following chart. Continuous shooting mode and self-timer mode are to be controlled by the cell phone. HI stands for FHD (1920x1080, 30 fps) video Video recording mode LO stands for HD (1280x720, 30 fps) video HILO stands for 1280x720, 60 fps video HI stands for 8M resolution Photo mode...
  • Page 7 Video recording mode and photo mode flow chart After the camera is turned on, you can short press the Power/Mode button to switch between modes by the following order. Video mode (720p, 60fps) Video mode (1080p, 30fps) Video mode (720p, 30fps) Camera mode (8MP) Camera mode (5MP)
  • Page 8 Preparation 1. Insert a microSD or microSDHC card. 1. Please use memory cards with speeds faster than Class 4. 2. The camera supports memory cards up to 32GB. 3. Please make sure the memory card is inserted by correction direction. 4.
  • Page 9 2. Battery 2.1 Install the battery First please make sure that the camera is off when inserting or removing the battery. Step 1 Step 2 Step 3 Step 4 Step 1: Slide up the battery cover switch ( ) to open the battery cover. Step 2 &...

  • Page 10: Turn On/Off The Camera

    2.2 Charging the battery (a) Make sure that the camera is switched off (If the camera is being switched on, the battery will not be charged). (b) Connect the camera with the PC via the USB cable to start battery charging. The charger indicator will be lit in blue color while charging and will go off when charging is completed.
  • Page 11 2. Turn off the camera: Long press the button for about 3 seconds until the status LCD displays “OFF” and a beep sound is heard. Note: The camera will be automatically shut down to save power after the camera is being idle for 5 minutes.

  • Page 12: Start To Use

    Start to Use 1. Video recording mode To record a video, make sure the camera is under video recording mode which the icon is displayed on the status LCD. If not, short press the button repeatedly until the icon appears. Start recording: Press the button, the icon and the [ : ] displayed on the LCD will flash.
  • Page 13 Note: When the microSD card is memory full or the battery is drained, the recording will stop automatically. The recorded video will be saved before the camera goes off. 2. Photo mode To take a photo, make sure the camera is under photo mode which the icon is displayed on the status LCD.
  • Page 14 3. Mute / activate sound The sound is enabled by default. In the video recording mode or photo mode, long press the shutter button to mute sound. The icon will be displayed on the status LCD when the sound is being muted. Long press the shutter button again will activate the sound.
  • Page 15 Note: Before connecting or removing the HDMI cable, please stop video recording and disconnect the Wi-Fi connection.
  • Page 16 In Playback mode, short press the power /mode button to switch between photos and videos. When there are several photos or videos, press the Wi-Fi button to select the desired photo or video. When a video clip is selected, press the shutter button to start the playback and press the shutter button again to stop the playback.
  • Page 17 Item Description Camera is currently in Playback mode. Playback mode There are 31 files and the current file is number. 19. File number Video icon The current file is a video clip. In Playback mode, long press the shutter button and a prompt for file deletion and memory formatting will appear.
  • Page 18 Format 5. Connecting to PC and using PC camera feature 5.1 Turn on the camera and connect it to PC by the USB cable and the camera will enter the PCU mode. The saved photos and video clips can be found in the following folder: “My Computer Removable Disc”.
  • Page 19 Note: When the camera is connected to your PC you will see the internal memory of the camera where it is not possible to make recordings, but that contains a file named SSID_PW.CFG that contains the configuration data for the Wi-Fi camera (SSID name and password). 5.2 Press the Shutter button can switch to the PC camera mode (PCC mode).

  • Page 20: Remote Control

    Remote Control Power off button Signal emission port Video button Photo button You can use the remote controller to record videos, take photos and shut down the camera. When using the remote control, please make sure that the signal emission port on the remote control is pointing to the infrared signal reception light on the camera.
  • Page 21 Infrared signal reception light (a) Press the video button to record a video and stop the recording. (b) Press the photo button to take a photo.
  • Page 22 Using Wi-Fi 1. Android O/S (a) Search for “SYMAGIX APP” from “Play Store®” on your cell phone and install it. When the installation is completed, this icon will show on the cell phone’s screen (b) Insert the microSD/microSDHC card in the camera’s memory card slot. (c) Press the Wi-Fi button on the side of the camera to active the camera Wi-Fi (When the camera Wi-Fi is getting ready, the Wi-Fi status indicator will be flashing.
  • Page 23 (e) Click the icon and now you can control the camera by your cell phone. The introduction of the user interface is as following. 1. Video resolution 2. White balance 3. Setup (enter setup menu) 4. Enter playback mode 5. Shutter button 6.
  • Page 24 2. iOS O/S (a) Search for “SYMAGIX APP” from “App Store®” on your cell phone and install it. When the installation is completed, this icon will show on the cell phone’s screen (b) Insert the microSD/microSDHC card in the camera’s memory card slot. (c) Press the Wi-Fi button on the side of the camera to active the camera Wi-Fi (When the camera Wi-Fi is getting ready, the Wi-Fi status indicator will be flashing.
  • Page 25 (e) Click the icon and now you can control the camera by your cell phone. The introduction of the user interface is as following. 1. Battery power level 2. Video resolution 3. White balance 4. Setup (enter setup menu) 5. Enter Playback mode 6.
  • Page 26 PRECAUTIONS FOR CORRECT DISPOSAL OF THE PRODUCT The symbol shown on the equipment indicates that waste must be disposed of in “separate collection” and so the product must not be disposed of together with urban waste. The user must take the product to special “separate waste collection centres” provided by local government, or deliver it to the retailer against the purchase of a new product.
  • Page 27 INFORMATION NOTE ON THE REMOVAL AND DISPOSAL OF BATTERIES Warning: Only high-qualified personnel should perform this operation! BATTERY REMOVAL The appliance should not be plugged to the mains socket when performing this operation! Remove the battery cover as indicated in Chapter Select the battery;...
  • Page 28 For additional information and updates of this product Trevi S.p.A. Strada Consolare Rimini-San Marino, 62 47924 RIMINI (RN) Italy Made in CHINA...
