Service

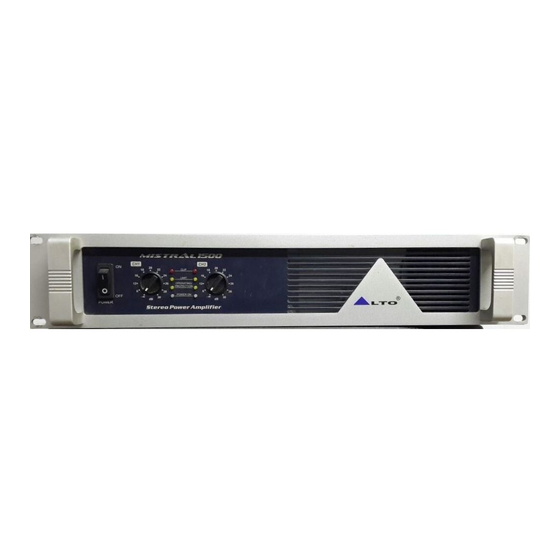

MODEL: MISTRAL900/1500
www.altoproaudio.com
Version 2.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the MISTRAL 900 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alto MISTRAL 900

Summary of Contents for Alto MISTRAL 900

  • Page 1 Service MODEL: MISTRAL900/1500 www.altoproaudio.com Version 2.0...

  • Page 2: Table Of Contents

    CONTENTS 1. Introduction..………………………………………………………….………………..…2 2. Specification.…………………………………………………………….……….……….3 3. Schematic Diagram…………….…………………….……….….…………………..…..4 4. PCB Layout..……………….…………….………...…….………………….…….…11 5. Test Procedure..……………….…………….………...…….………………….……….15 6. Exploded Views & Mechanical Parts List…….………………………….……..….16 7. BOM..............…………………….…………..…..19...

  • Page 3: Introduction

    1. Introduction ALTO MISTRAL amplifiers are series of innovative design power amplifiers. This series work under high stability with great power supply in just 2-rack spaces. Airflow is from back to front panel to keep in a nice air circulation inside the Rack. The automatic fan, which affects the temperature of machine includes various kinds of speed, therefore, this low-noise fan makes a good result in cooling the heat from machines.

  • Page 4: Specification

    2. Specification MISTRAL900 MISTRAL1500 Output Power 20Hz~20KHz @0.1% THD, SCD MODE 8 ohms per channel (EIAJ) 190W 300W 4 ohms per channel (EIAJ) 300W 500W BRIDGE MONO MODE 8 ohms , 1KHz, 0.1%THD 1400W 2000W Distortion (SMPTE-IM) <0.05% Frequency Response 20Hz-20kHz +/- 0.1dB, -3 dB points: 10Hz-60kHz Damping Factor, 1 kHz and below >300 at 8 ohms...

  • Page 5: Schematic Diagram

    CN-PCB6.3 2 R1_39 MPSA42 J1_10 R1_40 PTC 65R 5mm RED LED R1_34 100R GND1 Vic- F1_2 CN-PCB6.3 -73V_A Titel for MISTRAL900 ALTO MISTRAL1500-CH1 DRIVE Size Model No: Revision MISTRAL1500 VER040302 16-Mar-2004 Date: Sheet 2 of File: MIS9-CH1.Sch Drawn By: C.C.LIN...
  • Page 6 CN-PCB6.3 2 R2_39 MPSA42 J2_10 R2_40 PTC 65R 5mm RED LED R2_34 100R GND1 Vic2- F2_2 CN-PCB6.3 for MISTRAL900 -73V_B Titel ALTO MISTRAL1500-CH1 DRIVE Size Model No: Revision MISTRAL1500 VER040302 Date: 16-Mar-2004 Sheet 3 of File: MIS9-CH2.Sch Drawn By: C.C.LIN...
  • Page 7 CN-PCB6.3 2 R1_39 MPSA42 J1_10 R1_40 PTC 65R 5mm RED LED R1_34 100R for MISTRAL1500 GND1 Vic- F1_2 CN-PCB6.3 -73V_A Titel ALTO MISTRAL1500-CH1 DRIVE Size Model No: Revision MISTRAL1500 VER040302 Date: 2-Mar-2004 Sheet 2 of File: MIS15-CH1.Sch Drawn By: C.C.LIN...
  • Page 8 CN-PCB6.3 2 R2_39 MPSA42 J2_10 R2_40 PTC 65R 5mm RED LED R2_34 100R for MISTRAL1500 GND1 Vic2- F2_2 CN-PCB6.3 -73V_B Titel ALTO MISTRAL1500-CH1 DRIVE Size Model No: Revision MISTRAL1500 VER040302 Date: 2-Mar-2004 Sheet 3 of File: MIS15-CH2.Sch Drawn By: C.C.LIN...

  • Page 12: Pcb Layout

    4. PCB Layout MIS15MN Top Layer...
  • Page 13 Bottom Layer...
  • Page 14 Top Layer...
  • Page 15 MIS15FP Top overlay Bottom layer MIS15IN1 Top overlay Bottom layer MIS15N2 Top overlay Bottom layer...

  • Page 16: Test Procedure

    5. Test Procedure 1) Test Equipment: 1.Frequency transformer 2.Digital voltage meter 3.AP ( Audio precision ) 4.Oscilloscope 5.Two 8Ω(400W) load 2) Test procedures and specification 1.Set LIMITER and BRIDGE switches at OFF, turn VR of CH1 and CH2 to maximum, then turn on the power switch and the blue power LED lights up, and OPERATING/PROTECTION LED shows red then become green after 2-5 seconds or so.
  • Page 17 6. Exploded Views & Machanical Parts List...
  • Page 18 Mechanical Parts List No. Item Number Description Specification Quantify MA04096 ZC-panel MISTRAL4000 MA00227 ZC-panel MISTRAL1500 ALTO new_V1.0 MB03675 ZC-rear chassis MISTRAL1500 new_V1.0 MC00517 ZC-cover MISTRAL4000 MI01744 ZB-handle MISTRAL4000 20*25.5*80 MI02356 ZD-fixing bracket 156.1*84.9*84*1.0t MISTRAL1500_V1.0 MI01746 ZD-panel MISTRAL4000 14*81*89 MJ01227 ZB-cushion board...
  • Page 19 No. Item Number Description Specification Quantify MG00041 Black plated screw M3*6 MG00030 Black plated screw M4*12 ME00006 For nut-R.S φ9 MF00004 For color washer-R.S φ9*φ14*0.5t NI00437 Rubber ring φ20*φ120*2tB MG00215 Zinc screw For M8*80 loop PT ME00026 Zinc nut MF00026 Color washer φ8*φ18*1.5t MF00041...
  • Page 20 Remark MA04096 panel MISTRAL4000 MA04097 panel MISTRAL4000 MA04098 panel MISTRAL4000 3.1*88.8*25.5*483 MI01309 panel 3.1*88.8*25.5*483 MA00204 panel MISTRAL900 ALTO new_V1.0 MA04436 panel CPA 1000 MA05424 panel MISTRAL1500_V1.0 MJ00088 iron board 1.5*2135*1220 30.67kg MB03675 rear board MISTRAL1500 new_V1.0 MB03072 rear board MISTRAL1500_V1.1...
  • Page 21 MISTRAL900 Parts List Part No. Description Specification Remark MJ01154 iron board 2.0t*1850*950mm 27.6kg MI02369 barrier MISTRAL1500 MI02368 barrier MISTRAL1500_V1.0 MJ00067 iron board 0.8*2440*1220 18.69kg MI02361 fixed bracket 197.3*84*27*1.0t MISTRAL1500_V1.0 MJ00061 Zn-plated board 1*2135*1220 20.45kg NI02650 knob φ18*18mm 10*φ22.5 NI02651 knob fix sheath HC00005 AC socket AC-008...
  • Page 22 PE bag 0.05t*610*500mm NF01713 instruction MISTRAL900/1500 ALTO_V1.1 NH00149 paper 889*640mm NB02499 color box MISTRAL900 ALTO_V1.1 NE11545 label APS-1480 220-240V NI00037 adhesive label 0.05*1M NI00034 membrane 0.045*1M NF00061 assurance card ALTO NE11621 label MISTRAL900 NH00012 bond paper 0.04*1M NI00014 membrane 0.035*1M...
  • Page 23 MISTRAL900 Parts List Part No. Description Specification Remark NE11347 label ALTO PI NH00334 cone paper 0.040*1m HK02095 PC board P-MIS15MN(MISTRAL900) HB01189 MIS15MN_VER040310 0.0Ω RA00157 fixed resistor 1/4W 4.7Ω M type RA00322 fixed resistor 1/4W R1-17,R1-18,R2-17,R2-18 47Ω M type RA00174 fixed resistor 1/4W R1-25,R2-25,R2 100Ω...
  • Page 24 MISTRAL900 Parts List Part No. Description Specification Remark 47uF/25V φ5*11mm CB00039 electrolytic capacitor C1-26,C1-27,C2-26,C2-27 47uF/100V φ10*12mm CB00043 electrolytic capacitor C1-1,C2-1 220uF/16V φ8*11mm CB00055 electrolytic capacitor C1-4,C1-8,C2-4,C2-8 470uF/35V φ10*20mm CB00067 electrolytic capacitor C4,C5 4700uF/80V LCM φ25*50mm C1-15,C1-16,C2-15,C2-16 CB00093 electrolytic capacitor CF00005 metal-film capacitor MSC 0.0022uF/63V 5% CASE01 C1-9,C2-9...
  • Page 25 MISTRAL900 Parts List Part No. Description Specification Remark SD00173 integrated circuit NJM4580L(JRC) U2,U1-1,U2-1 HC00064 FUSE holder JEF-503B (5.2mm) F1-1,F1-2,F2-1,F2-2 HD00079 ceramic tube fuse 4A250V φ5.2*20mm CSA/S/T/UL/VDE NC00005 silicone insulator TO-220 square type MF00030 washer φ3*φ8*0.8t MF00037 washer φ3*φ5*1t MG00171 screw M3*14 MI02363 heat-sink...
  • Page 26 MISTRAL900 Parts List Part No. Description Specification Remark SA00054 L.E.D high intensity 3m/m round(yellow)long foot 26 D1-1,D2-1,D1-30,D2-30 SA00194 L.E.D D1-29,D2-29 φ3 NI01765 LED spacer support LEDS-10 10mm HC00066 row-wire header(male) 3P 2.5mm 90° CN1-1,CN2-1 A10KΩ RV110-40E1-225A-A14 VR1-1,VR2-1 RC00209 PPBC239 HA03320 wire 14P-14P 400mm UL1007 24AWG HK04015...
  • Page 27 MISTRAL900 Parts List Part No. Description Specification Remark NB02086 MACRO NB01944 barrier PSA-3000_V1.1 MG00027 screw M3*12 MJ01252 cushion 250*8*1.0t MISTRAL1500_V1.0 MJ00061 Zn-plated board 1*2135*1220 20.45kg MI00427 fixed bracket PSA-3000 MJ00058 iron board 1*2135*1220 20.45kg MG00111 screw pill 4*30 NA00279 clip-chain bag 0.04t*100*150mm_V1.0 AD00012 twin adhesive...
  • Page 28 Remark MA04096 panel MISTRAL4000 MA04097 panel MISTRAL4000 MA04098 panel MISTRAL4000 3.1*88.8*25.5*483 MI01309 panel 3.1*88.8*25.5*483 MA00227 panel MISTRAL1500 ALTO new_V1.0 MA04436 panel CPA 1000 MA05424 panel MISTRAL1500_V1.0 MJ00088 iron board 1.5*2135*1220 30.67kg MB03675 rear board MISTRAL1500 new_V1.0 MB03072 rear board MISTRAL1500_V1.1...
  • Page 29 MISTRAL1500 Parts List Part No. Description Specification Remark MJ01154 iron board 2.0t*1850*950mm 27.6kg MI02369 barrier MISTRAL1500 MI02368 barrier MISTRAL1500_V1.0 MJ00067 iron board 0.8*2440*1220 18.69kg MI02361 fixed bracket 197.3*84*27*1.0t MISTRAL1500_V1.0 MJ00061 Zn-plated board 1*2135*1220 20.45kg NI02650 knob φ18*18mm 10*φ22.5 NI02651 knob fix sheath HC00005 AC socket AC-008...
  • Page 30 NA00135 PE bag 0.05t*610*500mm NF01713 instruction MISTRAL900/1500 ALTO_V1.1 NH00149 paper 889*640mm NB02475 MISTRAL1500 ALTO_V1.1 NE11547 label APS-1600 220-240V NI00037 adhesive label 0.05*1M NI00034 membrane 0.045*1M NF00061 assurance card ALTO NE11515 label MISTRAL1500 NH00012 bond paper 0.04*1M NI00014 membrane 0.035*1M...
  • Page 31 MISTRAL1500 Parts List Part No. Description Specification Remark NE11347 label ALTO PI NH00334 cone paper 0.040*1m HK00622 PC board P-MIS15MN(MISTRAL1500) HB01189 MIS15MN_VER040310 0.0Ω RA00157 fixed resistor 1/4W 4.7Ω M type RA00322 fixed resistor 1/4W R1-17,R1-18,R2-17,R2-18 47Ω M type RA00174 fixed resistor 1/4W R1-25,R2-25,R2 100Ω...
  • Page 32 MISTRAL1500 Parts List Part No. Description Specification Remark 47uF/25V φ5*11mm CB00039 electrolytic capacitor C1-26,C1-27,C2-26,C2-27 47uF/100V φ10*12mm CB00043 electrolytic capacitor C1-1,C2-1 220uF/16V φ8*11mm CB00055 electrolytic capacitor C1-4,C1-8,C2-4,C2-8 470uF/35V φ10*20mm CB00067 electrolytic capacitor C4,C5 4700uF/80V LCM φ25*50mm C1-15,C1-16,C2-15,C2-16 CB00093 electrolytic capacitor CF00005 metal-film capacitor MSC 0.0022uF/63V 5% CASE01 C1-9,C2-9...
  • Page 33 MISTRAL1500 Parts List Part No. Description Specification Remark SD00173 integrated circuit NJM4580L(JRC) U2,U1-1,U2-1 HC00064 FUSE holder JEF-503B (5.2mm) F1-1,F1-2,F2-1,F2-2 HD00070 ceramic tube fuse 5A 250V φ5.2*20mm CSA/S/T/UL/VDE NC00005 silicone insulator TO-220 square type MF00030 washer φ3*φ8*0.8t MF00037 washer φ3*φ5*1t MG00171 screw M3*14 MI02363...
  • Page 34 MISTRAL1500 Parts List Part No. Description Specification Remark SA00054 L.E.D high intensity 3m/m round(yellow)long foot 26 D1-1,D2-1,D1-30,D2-30 SA00194 L.E.D D1-29,D2-29 φ3 NI01765 LED spacer support LEDS-10 10mm HC00066 row-wire header(male) 3P 2.5mm 90° CN1-1,CN2-1 A10KΩ RV110-40E1-225A-A14 VR1-1,VR2-1 RC00209 PPBC239 HA03320 wire 14P-14P 400mm UL1007 24AWG HK04015...
  • Page 35 MISTRAL1500 Parts List Part No. Description Specification Remark NB02086 MACRO NB01944 barrier PSA-3000_V1.1 MG00027 screw M3*12 MJ01252 cushion 250*8*1.0t MISTRAL1500_V1.0 MJ00061 Zn-plated board 1*2135*1220 20.45kg MI00427 fixed bracket PSA-3000 MJ00058 iron board 1*2135*1220 20.45kg MG00111 screw pill 4*30 NA00279 clip-chain bag 0.04t*100*150mm_V1.0 AD00012 twin adhesive...
