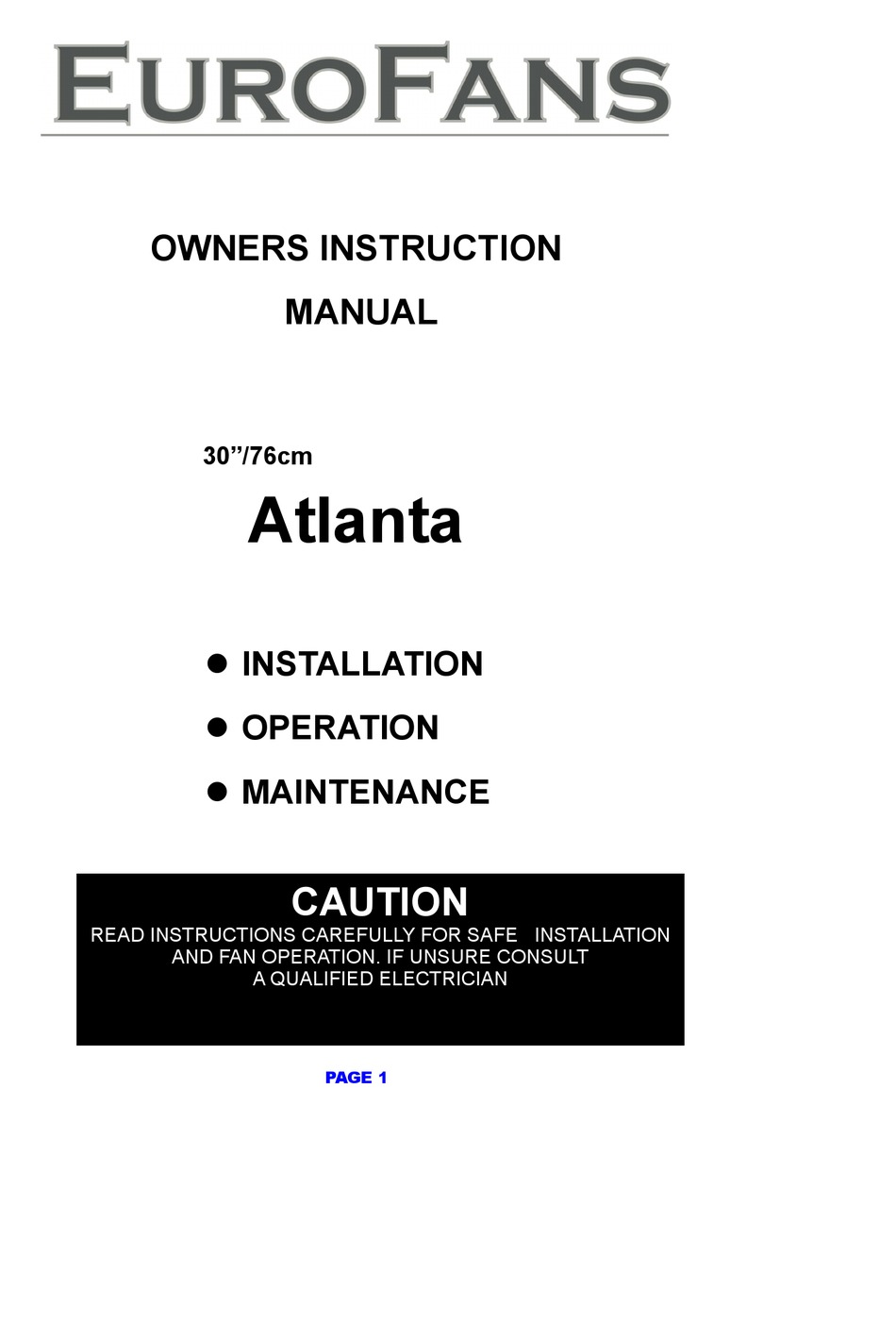

- Page 1 OWNERS INSTRUCTION MANUAL 30”/76cm Atlanta INSTALLATION OPERATION MAINTENANCE CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. IF UNSURE CONSULT A QUALIFIED ELECTRICIAN PAGE 1...
- Page 2 SUITABLE FOR 230V/50 CYCLE ELECTRICAL SUPPLY Enquiries on installing your fan please call our help line on 01959-564440 PAGE 2...
- Page 3 Safety Precautions To ensure the success of the installation be sure to read the instructions and study the diagrams thoroughly before commencing. All electrical work should only be undertaken after disconnection of the power by removing fuses or turning off the circuit breaker to ensure all pole isolation of the electrical supply.
- Page 4 Supplied Parts One fan motor assembly One round plate fitted with terminal block and top rubber washers. One set of blades One set of blade carriers One screw-pack with balancing kit One installation booklet. Only supplied on units supplied with pre-fitted lights One light fitting –...
-
Page 5: Assembling And Hanging Your Ceiling Fan
ASSEMBLING AND HANGING YOUR CEILING FAN NOTE: Before installing ensure that you have all poles disconnection of the electricity supply and that you refer to q qualified electrician to ensure that all wiring is carried out in accordance with I.E.E. Regulations, current good practice, national and local electrical codes. -
Page 6: Flush Mount Style Assembly Diagrams
FLUSH MOUNT STYLE ASSEMBLY DIAGRAMS PAGE 6... - Page 7 B. DROP ROD STYLE INSTALLATION STEP 1 : MOUNTING PLATE INSTALLATION Loosen the screw of the mounting plate from canopy. Secure the mounting plate to joist with wood screws, rubber and steel washers. (See Fig. 4) CAUTION : Be sure that the mounting location can support load of at 70 kilos.
-
Page 8: Drop Rod Style Assembly Diagrams
DROP ROD STYLE ASSEMBLY DIAGRAMS PAGE 8... -
Page 9: Wiring Instructions
WIRING INSTRUCTIONS NOTE: Before installation ensure that you have all pole disconnection of the electricity supply and that you refer to a qualified electrician to ensure that all wiring is carried out in accordance with I.E.E. Regulations current goods practice national and local electrical codes. -
Page 10: Assembling The Blades
Assembling the blades The blades now need to be assembled on to the carrier brackets. Note that blades can be installed with either surface facing down. Carefully unwrap the blade and a carrier bracket. Align the bracket with the holes in the blades and use the screws and fibre washers provided to connect them. -
Page 11: Blade Balancing
If a wall control or remote control system has been used refer to the accompanying leaflets enclosed in these systems. IMPORTANT This fan is provided with a 3-speed pull chain type switch for choice of speeds. The slide switch allows for forward or reverse action of the blades. Do not operate reversing switch while fan blades are in motion. -
Page 12: Product Disposal Instructions
The motor has permanently sealed bearings so no lubrication is necessary Do not use water when cleaning you fan as this could damage the surfaces of the casing and the blades and may create the possibility of an electric shock. Tips If you have a false ceiling, connect the mounting plate on to the main structure and use an extension rod to lower the fan below the false ceiling. - Page 13 PAGE 13...
-
Page 14: Ceiling Fan Warranty
Ceiling Fan Warranty. You must have the original purchase receipt or bill of sale to make a warranty claim. No claim will be accepted unless proof of date of purchase is available at the time of making the warranty claim. Ceiling Fan Warranty Period. - Page 15 30”/76cm Atlanta PAGE 15...
- Page 16 FANTASIA DISTRIBUTION LTD. Unit B. The Flyers Way, Westerham, Kent, TN16 1DE Tel: (01959) 564 440 PAGE 16...
- Page 17 PAGE 17...
- Page 18 30”/76cm Atlanta Please cut out this warranty page and send it in an envelope to the address below. Alternatively please go to our website www.fantasiaceilingfans.com and fill in the warranty section there. PAGE 18...
- Page 19 FANTASIA DISTRIBUTION LTD. Unit B. The Flyers Way, Westerham, Kent, TN16 1DE Tel: (01959) 564 440 PAGE 19...
