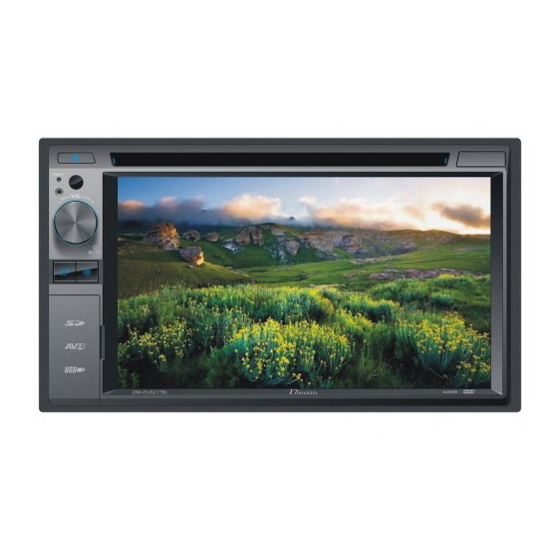

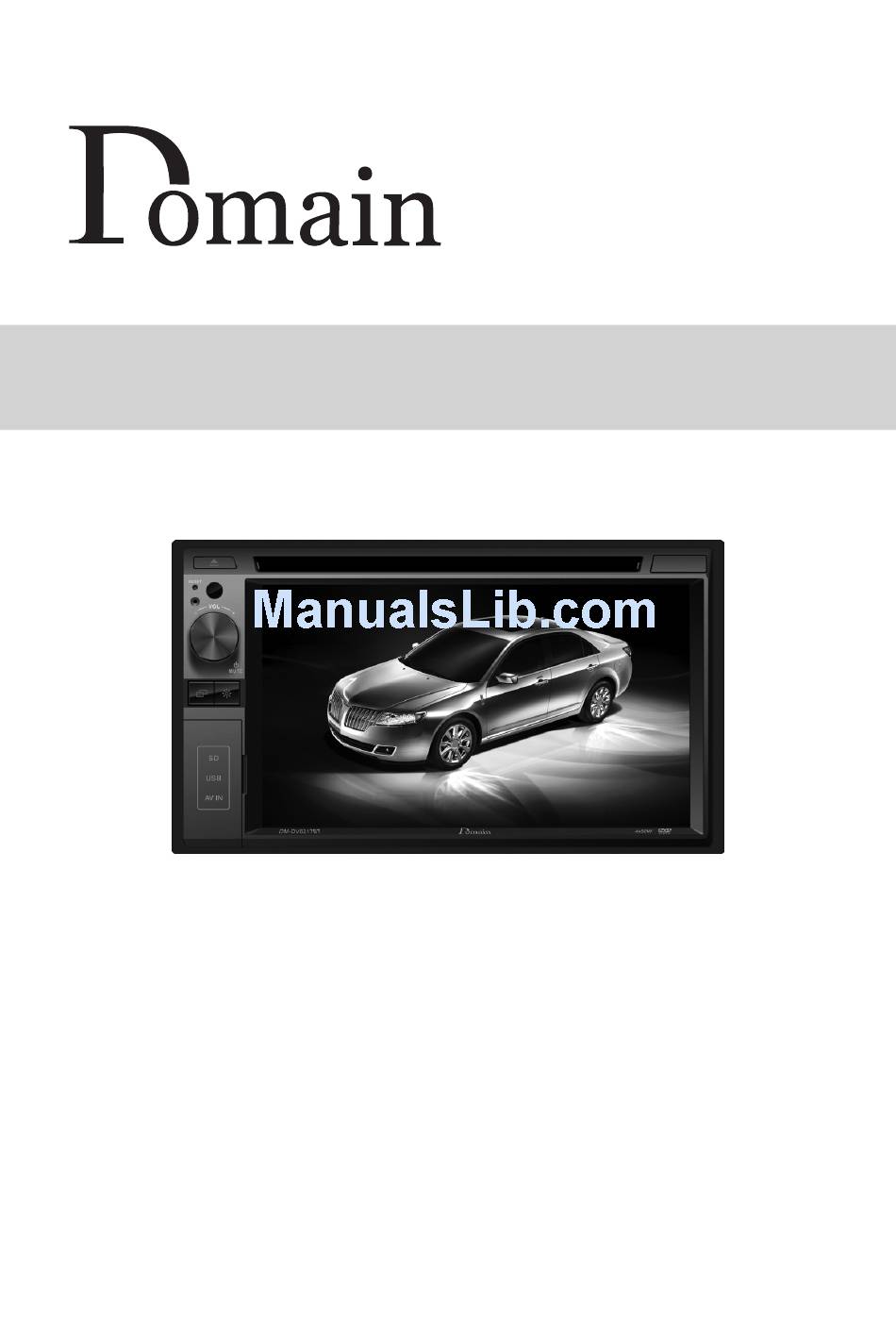

- Page 1 6.2 inch DVD/VCD/CD/MP3/MP4/SD/USB PLAYER FM/AM TUNER with Built-in BLUETOOTH DM-DV6217BT INSTRUCTION MANUAL...
-
Page 2: Safety Precautions
Safety Precautions Thank you for purchasing this product. Do not change the fuse on the power Please read through these operating cord without professional guidance. Using instructions so you will know how to an improper fuse may cause damage to operate your model properly. -
Page 3: Expanding Systems
Safety Precautions 1. Never disassemble or adjust the unit without professional guidance. For details, please consult an authorised service provider or dealer. 2. If the front panel or TFT monitor is dirty, please use a clean silicone cloth and neutral detergent to clean. -
Page 4: Table Of Contents
Contents Safety Precautions ........1 Bluetooth Mode ........16 Pair the Bluetooth-enabled Devices ..16 Before Using ..........4 Disconnect Bluetooth Device ....16 Front Panel ..........4 Make a Call ...........16 Remote Control........5 Receive a Call........17 Adjust Bluetooth Settings......17 Basic Operations ........7 Music Mode ..........17 Parking Brake Inhibit.......7 Mute ............7 Settings ...........18... -
Page 5: Before Using
Before Using Front Panel Notice: The graphics in this manual are for reference purposes only and may differ somewhat from the actual unit. 1. [ ] Button Press to eject a disc. 2. Remote Sensor 3. Disc slot 4. Reset Hole Press to reset system settings to factory default (except password and parental lock settings). -
Page 6: Remote Control
Before Using Remote Control 1. Return to the home menu 2. Eject the disc 3. Access to tuner source 4. Access to disc source 5. - Search an available radio station by decreasing tuning frequency - Select the previous chapter/track for playback 6. - Page 7 Before Using Notes on Remote Control Usage 1. Aim the remote control at the remote sensor on the unit. 2. Replace the battery from the remote control or insert a battery insulator if the battery has not been used for a month or longer. 3.
-
Page 8: Basic Operations
Basic Operations Parking Brake Inhibit • When the “BRAKE” cable is connected to the brake switch, the video playback will be controlled by driving status, system setup and input video sources. • Parking brake function is overridden when the video source is set to REVERSE. •... -
Page 9: Select Preset Equalizer
Basic Operations Select Preset Equalizer 1. Enter the EQ setup mode Touch the [ ] icon in the user interface and the EQ setup interface will display on the screen. 2. Select EQ mode Touch the desired EQ selection: [ Optimal ] / [ Classic ] / [ Rock ]/ [ Jazz ] / [ Techno ] / [ Pop ], and the EQ mode will change. -
Page 10: Set Date /Time
Basic Operations Set Date /Time 1. Touch [ ] on the playing source menu. 2. Touch [ Time ]. The date/time setup menu is displayed. Set Date 1. Touch [ Date ]. 2. Touch the date information on the screen. A submenu is displayed. -
Page 11: Radio Mode
Radio Mode Tuner Menu 1. Touch to view the SOURCE MENU 2. Strong Local signal broadcasting indicator 3. Current radio band indicator 4. Preset stations list 5. Touch to view the second line of control bar 6. Tune backward (short press) Seek backward (long press) 7. -
Page 12: Preset Station
Radio Mode Preset Station The unit has 5 bands, such as FM1, FM2, FM3, AM1, AM2, and each band can store 6 stations; hence the unit can store 30 stations in total. Search Stations Automatically Touch [ ] to search station and store the 6 strongest stations in the current band automatically. -
Page 13: Playback Mode
Playback Mode Load a Disc You can play video, audio or images stored on the following discs: • DVD Video, DVD-R, DVD-RW • VCD • Audio CD, CD-R, CD-RW Note: Ensure that the disc contains playable content. Eject a Disc Press the [ ] key on the front panel to eject the disc. -
Page 14: Previous/Next
Playback Mode For DVD movie, if a menu appears, press [ ] to start play. 2. To pause, touch [ To resume play, touch [ 3. Skip to previous / next track / chapter, press [ ] / [ ] key. Previous/Next Touch [ ] / [... -
Page 15: Repeat A-B
Playback Mode For CD/MP3 files: 1. Touch anywhere except the upper left corner to display menu on the screen, if necessary. 2. Touch [ ] repeatedly: ] Repeat single: Play the current single track repeatedly. ] Repeat all: Play all tracks in the disc or storage repeatedly. ] Repeat off: Cancel repeat play. -
Page 16: Video Setup
Playback Mode Video Setup Touch [ ] to access video setup mode, touch [ ] or [ to set the desired effect. You may set the brightness, contrast, saturation and hue of the video output from 1 to 20. Playback Information Touch the screen when playing back DVD and VCD discs and the playback information will be displayed on the top area of the TFT. -
Page 17: Bluetooth Mode
1. Turn on the Bluetooth function on the device. 2. Touch [ ] to search for Bluetooth device with the unit. 3. Select the Bluetooth device ID “DOMAIN” in the pairing list. 4. Enter default password “0000”. Tip: • The operational range between this unit and a Bluetooth device is approximately 5 meters . -
Page 18: Receive A Call
Bluetooth Mode Receive a Call By default, all incoming calls are received automaticaly. 1. If there is an incoming call, “Incoming” will appear on the screen. 2. You may touch the screen to select [ Hang up ] or [ Answer ]. Speak into the Bluetooth microphone. •... -
Page 19: Settings
Settings Display System 1. Touch the upper left corner to display the main menu. 2. Touch [ Settings ]. The settings menu is displayed. Adjust General Settings 1. Touch [ General ], if necessary. 2. Touch to highlight a setting. 3. -
Page 20: Adjust Sound Settings
Settings Adjust sound settings 1. Touch [Sound]. 2. Touch an option repeatedly to select. 3. Touch blank area of the screen to exit. Sound settings Options Description Turn on the subwoofer. Subwoofer Turn off the subwoofer 80Hz Subwoofer filter 120Hz Select subwoofer filter criteria. -
Page 21: Adjust Dvd Rating
Settings Adjust DVD Rating 1. Touch [DVD rating]. 2. Touch an option repeatedly to select. 3. Touch blank area of the screen to exit. DVD rating Options Description Set password Set password to restrict the play of discs. The default password is 4321. Kid safe Acceptable for children. -
Page 22: Other Modes
Other Modes Listen to Other Devices You can connect an external audio/video device to the unit. 1. Connect the external device with the supplied AV cable. 2. Touch the upper left corner to display the main menu. 3. Touch [AV-IN 1] / [AV-IN 2] to access external device. Reset When the unit hangs up, you can reset it. -
Page 23: Specifications
Specifications General Components Power supply 12V DC (11V-16V) Machine screws M5x8 mm Test voltage 14.4V, Wire connector negative ground Trim plate Maximum power output 50Wx4 channels Operating Instructions Continuous power output 25Wx4 channels (4 Rubber cushion 10% T.H.D.) Remote control Suitable speaker impedance 4-8 ohm AV-in cable Pre-Amp output voltage... -
Page 24: Region Code
Specifications Supported Formats: · USB or memory file format: FAT16,FAT32 · Mp3 bit rate(date rate): 32-320 Kbps and variable bit rate · Directory nesting up to a maximum of 8 levels · Number of albums/folders: maximum 99 · Number of tracks/titles: maximum 999 ·... -
Page 25: Troubleshooting
Troubleshooting What appears to be a problem is not always serious. Please check the following points before calling a service center. Problem Cause Corrective action General Unit fuse blown. Install new fuse with correct rating. Car battery fuse blown. Install new fuse with correct rating. Unit does not power on Illegal operation Reset the unit. -
Page 26: Installation
Installation Using the Cosmetic Trim Ring One cosmetic trim rings are packaged with the head unit for installation flexibility. This unit will fit into most import dashes with little or no modification to the dash board/cavity. Some US domestic vehicle dashes will accept a Double-DIN chassis, but there is usually a small gap between the radio and dash piece after installation is complete. -
Page 27: Wire Connections
Wire Connections External Microphone... - Page 28 CLASS 1 LASER PRODUCT P.N.: 127075006812...
