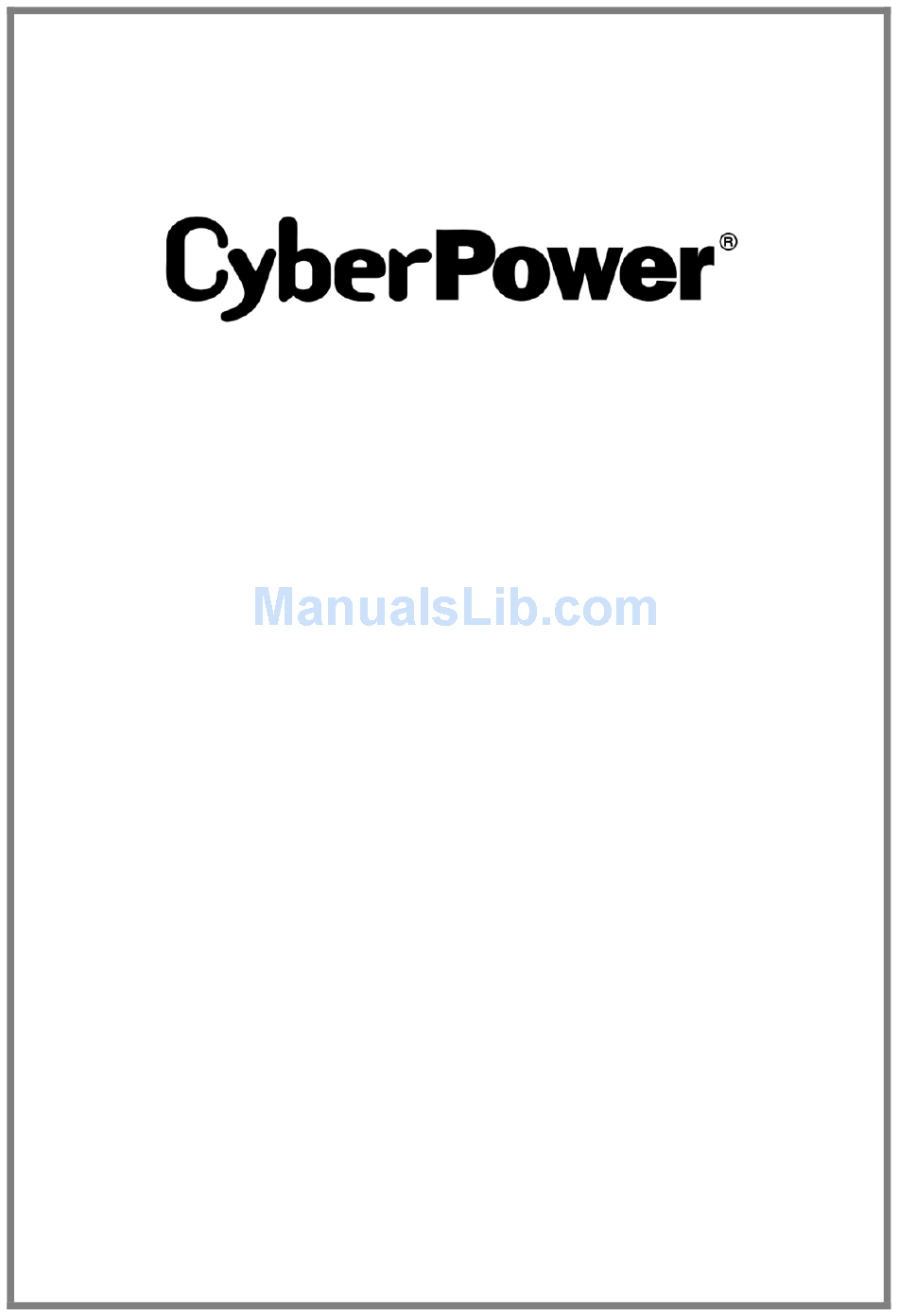

- Page 1 Userˊs Manual BPSE240V75ART3U CyberPower Systems Inc. www.cyberpower.com K01-C000117-01...
-
Page 2: Table Of Contents
CONTENT: 1. SAFETY ......................1 2. UNPACKING.....................3 3. BASIC OPERATION ..................4 3.1. SCHEMATIC .....................4 3.2. FRONT/REAR PANEL DESCRIPTION .............4 4. HARDWARE INSTALLATION ................5 4.1. RACKMOUNT INSTALLATION ..............5 4.2. VERTICAL/TOWER INSTALLATION ............8 5. ELECTRICAL INSTALLATION ..............10 5.1. One Battery module with 240Vdc input of the Power module....10 5.2. -
Page 3: Safety
1. SAFETY This manual contains important instructions. Please read and follow all instructions carefully during installation and operation of the unit. Read this manual thoroughly before attempting to unpack, install, or operate the Battery module. CAUTION! The UPS unit must be connected to a grounded AC power outlet with fuse or circuit breaker protection. - Page 4 before conducting any maintenance, repairs or shipment. CAUTION! Connect the Protection Earth (PE) safety conductor before any other cables are connected. DO NOT INSTALL THE UNIT WHERE IT WOULD BE EXPOSED TO DIRECT SUNLIGHT OR NEAR A STRONG HEAT SOURCE! ...
-
Page 5: Unpacking
2. UNPACKING Battery module User’s manual Rackmount ears Rackmount left rail Rackmount right rail (Stands)*2PCS Pan head screws: Screw hole dust Flat head screws: M5X12L*12PCS covers*8PCS M4X8L*8PCS Plastic washers*8PCS Battery Cable... -
Page 6: Basic Operation
3. BASIC OPERATION 3.1. SCHEMATIC Battery Output+ Fuse Battery Input+ Battery String Battery Input- Battery Output- 3.2. FRONT/REAR PANEL DESCRIPTION Front View Rear View ①. Fuse: Replaceable fuse is accessible from the rear panel. It must be done by qualified personnel. ②. -
Page 7: Hardware Installation
4. HARDWARE INSTALLATION CAUTION! To prevent the risk of fire or electric shock, only use the supplied hardware to attach the mounting brackets. These versatile UPS systems can be mounted in a rackmount or vertical/tower orientation. This versatility is especially important to growing organizations with changing needs that value having the option to position a UPS on a floor or in a rackmount system. - Page 8 Step2.Rackmount rails Installation The rails adjust to mount in 48-cm (19-inch) panel racks from 52 to 91.5cm (20.5 to 36 inches) deep. Select the proper holes in the rack for positioning the UPS in the rack. The UPS takes up position 1 through position 9.
- Page 9 Step3.Install the UPS on the rack Place the UPS on a flat stable surface with the front of the unit facing toward you. Secure the UPS to your rack with four M5X12L screws at the front of the rack. (Located in position 2 & position 8). Once completed, perform the same steps for Power module.
-
Page 10: Vertical/Tower Installation
4.2. VERTICAL/TOWER INSTALLATION Attach the base stands #1: Without Power module Tighten the screws (M5X12*4pcs) of the base stands (rackmount ears) onto the bottom of the Battery module. Insert dust cover into the rackmount ear screw holes that are not being used. - Page 11 Attach the base stands #2: With Power module Tighten the screws (M5X12*4pcs) of the base stands (rackmount ears) onto the bottom of the UPS and Battery module. Insert dust cover into the rackmount ear screw holes that are not being used.
-
Page 12: Electrical Installation
5. ELECTRICAL INSTALLATION The system must be installed and wired only by qualified electricians in accordance with applicable safety regulations! 5.1. One Battery module with 240Vdc input of the Power module Loosen the screws to remove the Terminal Block Cover located on the rear panel of Power module. -
Page 13: Multiple Battery Modules With 240Vdc Input Of The Power Module
Connect the Battery Cable to the Battery module. Once completed, retighten the Block Cover. 5.2. Multiple Battery modules with 240Vdc input of the Power module Loosen the screws to remove the Battery input Terminal Block Cover and Output Connector Cover of the #1 Battery module. #1 Battery module Connect Battery Cable to Battery input Terminal Block of the #1 Battery... - Page 14 Loosen the screws to remove the Output Connector Cover of the #2 Battery module. #2 Battery module Connect the #1 Battery module to the #2 Battery module. Connect the #1 Battery module to Power module. (Refer to above steps of chapter 5.1).
-
Page 15: Two Battery Modules With ±240Vdc Input Of The Power Module
5.3. Two Battery modules with ±240Vdc input of the Power module Please refer to the following diagram and the steps of Connection #1. Power module Battery Input ±240Vdc #2 Battery module #1 Battery module Output Connector Output Connector 5.4. Multiple Battery modules with ± 240Vdc input of the Power module Please refer to the following diagram and the steps of Connection #2. -
Page 16: Technical Specification
6F, No. 32, Sec. 1, Chenggong Rd., Nangang District, Taipei 115, Taiwan © Entire contents copyright 2013 CyberPower Systems Inc., All rights reserved. Reproduction in whole or ® ® in part without permission is prohibited. PowerPanel Business Edition and PowerPanel Personal Edition are trademarks of CyberPower Systems Inc.
