FAT-0113
INSTRUCTION MANUAL
HANDLEIDING
FAT-0113
NAIL AND STAPLE GUN
NAGEL-EN NIETPISTOOL
EN · NL
LINE
EN
ENGLISH
ORIGINAL INSTRUCTION MANUAL
NL
NEDERLANDS
VERTAALDE VERSIE VAN DE ORIGINELE HANDLEIDING
Advertisement
Table of Contents
Summary of Contents for Ford FAT-0113

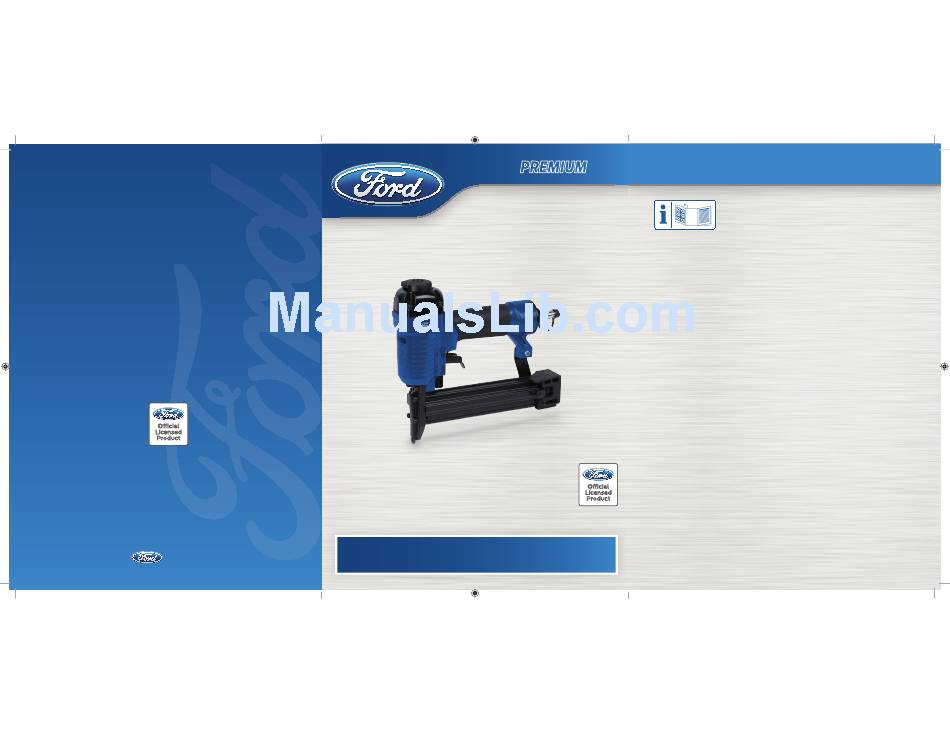

- Page 1 Operation manual and security instructions inside the box. Use safety glasses. Keep this tool away from children. FAT-0113 Ford Motor Company trademarks and trade dress used under license NAIL AND STAPLE GUN to Nine HKG, Ltd. ENGLISH ORIGINAL INSTRUCTION MANUAL fordmotorcompany.com...
-
Page 2: Table Of Contents
FAT-0113 APPLICATION ............2 DESCRIPTION (FIG A) ..........2 PACKAGE CONTENT LIST ......... 2 IMPORTANT SAFETY RULES ........3 FEATURES ..............4 Air supply ......................4 OPERATING INSTRUCTIONS ........5 Loading fastener and operation ................5 MAINTENANCE ............5 TECHNICAL DATA ............ 6 TROUBLESHOOTING .......... -
Page 3: Application
FAT-0113 2 IN 1 COMBI NAILER FAT-0113 1 APPLICATION Use for almost any finish, furniture, cabinetry, panelling, trim, or craft application. It is not designed for commercial use. WARNING! Please read and understand this operating manual before use and keep it for your future reference. Your air tool should only be passed on together with these instructions. -
Page 4: Important Safety Rules
FAT-0113 4 IMPORTANT SAFETY RULES Fig 1 Fig 2 Fig 3 KEEP CHILDREN AWAY. All children should be kept away from the work area. Don’t let them handle the tool. USE SAFETY GLASS AND EAR PROTECTION: Air tool operators and others in work area should always wear safety glass to prevent the injury from fasteners and flying debris when loading and unloading this tool. -
Page 5: Features
FAT-0113 5 FEATURES Your 2-in-1 Combi Nailer FAT-0113 drives Gauge.18* finish nails from 15mm to 32mm length and Gauge.18* staples from 16mm to 32mm length. 2-in 1 magazine ,shoot staples and finish nails without adjustment. Die-cast aluminum body for strong driving and light weight. -
Page 6: Operating Instructions
FAT-0113 6 OPERATING INSTRUCTIONS Loading fastener and operation WARNING: Always disconnect the tool from the compressed air before loading. When loading the tool always point the tool away from yourself and others. Make sure that you are not holding the tool with trigger depressed while loading the tool. -
Page 7: Technical Data
FAT-0113 8 TECHNICAL DATA MODEL FAT-0113 Capacity 100pcs Nail length 15-32mm(5/8”-1 1/4”) Staple length 16-32mm (5/8”-1 1/4”) Fastener size 18Gauge (1.25×1.00mm) nails 18Gauge(1.25×1.00mm) staples Operation pressure 4-7bar (60-100PSI) Air inlet 1/4”N.P.T. Dimension 75×275×205mm Weight 1.1kg 9 TROUBLESHOOTING WARNING: If any of the following symptoms appears during your operating, stop using the tool immediately, or serious personal injury could result. - Page 8 FAT-0113 SYMPTOM PROBLEM SOLUTIONS Air leak near top of O-ring in trigger valve is Check and replace O-ring. tool or in trigger area damaged. Trigger valve head are Check and replace. damage. Trigger valve stem, seal or Check and replace trigger O-ring are damaged.
-
Page 9: Environment
Zhong Nan Trading CO., Gompertsstraat nr.78-80 Suriname, declares that, Product : Pneumatic 2-in-1 combi nailer. Trade mark : Ford-tools Model : FAT-0113 Is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards.
