Summary of Contents for myPhone 3200i
-

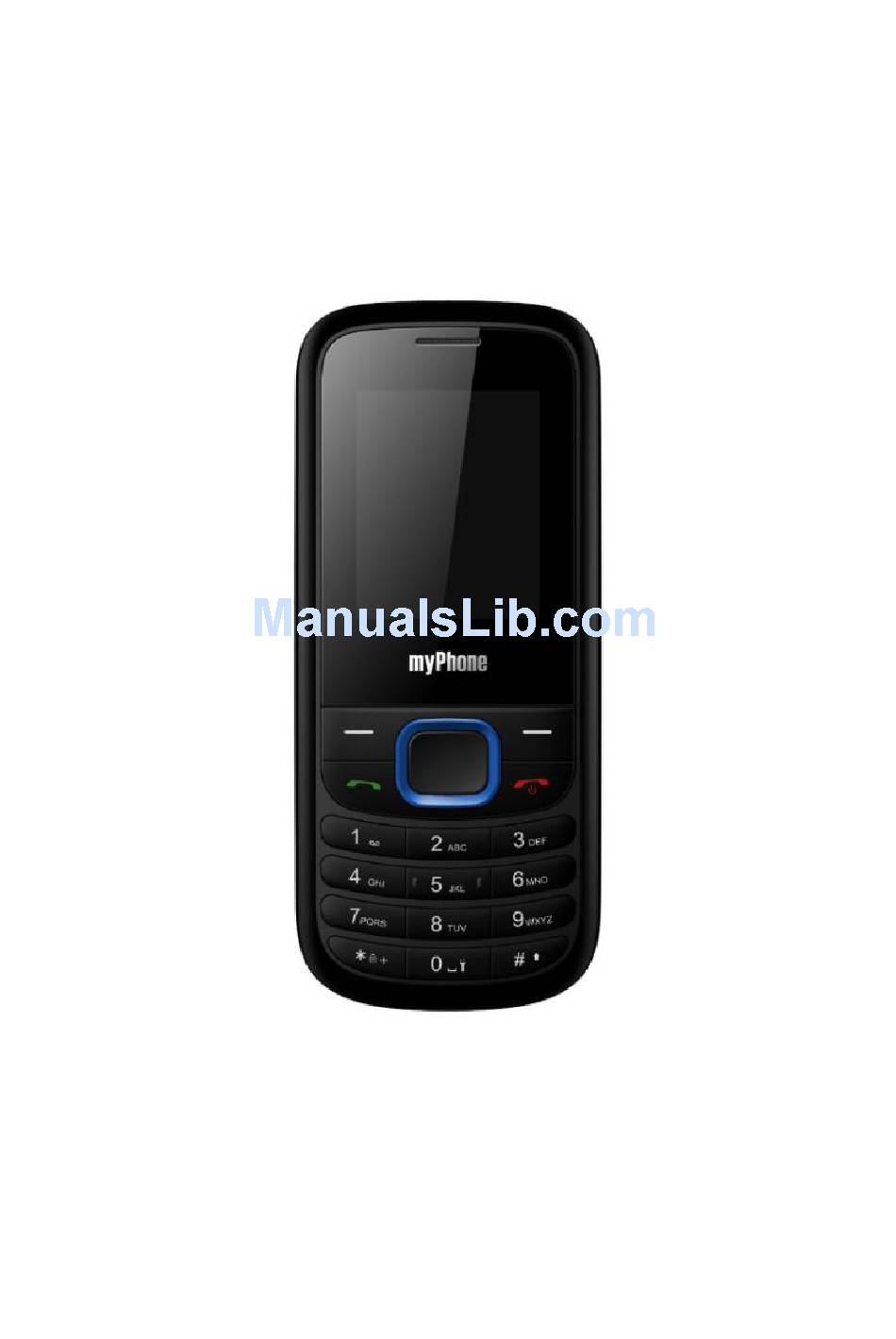

Page 1: User Manual
© myPhone 2014. All rights reserved. myPhone 3200i User Manual myPhone 3200i... - Page 2 Thank you for choosing our phone. In order to use the phone more efficiently please read closely the User Manual. myPhone 3200i is intended to be used in GSM/GPRS network at frequency 900/1800MHz. Stylish casing, contrast, colour display, flashlight, Bluetooth and Dual SIM mark your myPhone 3200i.
- Page 3 © myPhone 2014. All rights reserved. myPhone 3200i SAFETY WHILE DRIVING Do not use the phone while driving. INTERFERENCE All wireless devices may be susceptible to interference, which could affect performance. RESTRICTED AREAS Turn off your phone in the plane, because it can interfere with other on-board measuring devices.
- Page 4 Therefore, a single battery charge should not last longer than three days. Use only original myPhone accessories available with your phone. Unused charger should be disconnected from power supply. Damaged charger cable should not be repaired only replaced with a new charger.
- Page 5 © myPhone 2014. All rights reserved. myPhone 3200i circumstances. It is recommended to find an alternative way to notify emergency services if you are going to undeveloped or remote areas. CHILDREN The phone is not a toy. Keep the device and its accessories out of reach of children.
- Page 6 © myPhone 2014. All rights reserved. myPhone 3200i Produced by: myPhone Sp. z o.o. ul. Krakowska 119 50-428 Wrocław Poland Helpline: (+48 71) 71 77 400 E-mail: pomoc@myphone.pl website: www.myphone.pl...
-
Page 7: Table Of Contents
© myPhone 2014. All rights reserved. myPhone 3200i Contents Contents ..................7 Contents of myPhone 3200 ............10 Twchnical specifications myPhone 3200................11 1. Phone layout - introduction ............12 Phone layout – keys and functions ..........12 Turning on/off the phone ............13 SIM card, memory card and battery inserting ...... - Page 8 Sending files via Bluetooth............ 36 Camera ..................36 Taking photos ................ 36 Video recording..............37 Icons in myPhone 3200i ............37 Troubleshooting ................ 38 5. Care and maintenance .............. 40 Proper battery use ................ 41 Care and maintenance ............... 41 Safety information ..............
- Page 9 © myPhone 2014. All rights reserved. myPhone 3200i Proper disposal of used electric and electronic equipment ..44 Declaration of conformity with EU directives ......45...
-
Page 10: Contents Of Myphone 3200
© myPhone 2014. All rights reserved. myPhone 3200i Contents of myPhone 3200i Before you start using your phone please make sure if all of the following elements are included in the box: phone myPhone 3200i, battery, charger, ... -
Page 11: Twchnical Specifications Myphone 3200
© myPhone 2014. All rights reserved. myPhone 3200i Technical specifications Display: TFT 1.77” 128x160px, 256 thousands of colours. Memory: 32MB RAM + 24MB ROM Battery: li-ion, capacity - 800mAh Camera: 0.08Mpx Bluetooth 3.0 MicroUSB 1.1... -
Page 12: Phone Layout - Introduction
© myPhone 2014. All rights reserved. myPhone 3200i 1. Phone layout – introduction Phone layout – keys and functions MicroUSB slot. Audio slot. Flashlight. Enable flashlight key <0>. Earphone. -
Page 13: Turning On/Off The Phone
© myPhone 2014. All rights reserved. myPhone 3200i Display. <Green handset> key. <Red handset> key. Navigation key <up>, <down>, <left>, <right> and <OK> key. Microphone. Camera lens. Back speaker (buzzer). Turning on/off the phone... - Page 14 © myPhone 2014. All rights reserved. myPhone 3200i cover – undermine it with your fingernail. Use the slot marked on the picture below. Insert the SIM card – SIM card should be placed with its gold contacts facing down in a way that the recess is stamped.
-
Page 15: Battery Charging
© myPhone 2014. All rights reserved. myPhone 3200i Insert the battery – it should be inserted in such a way so that the gold connectors on the battery contact the gold contacts in battery recess in your mobile phone (see picture below). -
Page 16: Low Battery Indicator Information
© myPhone 2014. All rights reserved. myPhone 3200i During charging an icon appears on the display. Unplug the charger from the electrical outlet after charging. Disconnect the charger cable from the charging slot in your mobile phone. Low battery indicator information When the battery is discharged, you will see a low battery indicator on display. -
Page 17: Customize Your Phone
Press [Ok], to confirm your choice (enter selected option) or [Back], to go back to previous screen. Customize your phone myPhone 3200i can be customized to meet your needs. It will make using it easier and more enjoyable. Sounds and User profiles To set the volume level, press <up>... - Page 18 © myPhone 2014. All rights reserved. myPhone 3200i There are the following options available: [Ring type] – select [Options] → [Change] → [Select] and select the ring type. [SIM1 Ringtone] – option allowing to change the ringtone for incoming calls for SIM1 – enter [Options] →...
-
Page 19: Connectivity Options
© myPhone 2014. All rights reserved. myPhone 3200i press <up> and <down> keys to set the volume level. [Keypad] - select [Options] → [Change] → [Select] and select the type of keypad sound (Silent, Click, Tone), confirm by pressing [Ok] key. -
Page 20: Answering Thr Phone
© myPhone 2014. All rights reserved. myPhone 3200i It is recommended to enter the code number and then the phone number. Press <green handset> key, to establish connection and select the SIM card you want to use (in case of Dual SIM set to both SIM cards). - Page 21 © myPhone 2014. All rights reserved. myPhone 3200i 123 – only digits, PL – only uppercase letters, pl – only lowercase letters. In order to enter a special character, for example: a dot, a comma or a hyphen etc., press the key <*> and select a symbol from the list or press the <1>...
-
Page 22: Message Displaying
© myPhone 2014. All rights reserved. myPhone 3200i Select [Add], to confirm your choice. After entering a number / selecting a contact, enter: [Options] → [Send], to send a message. Message displaying Enter: [Menu] → [Messaging] → [Inbox], select a message from the list, enter [Options] →... - Page 23 © myPhone 2014. All rights reserved. myPhone 3200i Enter first letter of contact`s name. Contacts starting with this letter appear on the list. To search through these contacts simply use the navigation keys <up> and <down>. After finding the desired contact and pressing Options a list of options appears: ...
-
Page 24: Delete Contacts
© myPhone 2014. All rights reserved. myPhone 3200i Delete contacts To delete all contacts, select: [Menu] → [Phonebook] → [Options] → [Settings] → [Delete all] → [Ok]. To delete single contact, select: [Menu] → [Phonebook] → search for contact you want to delete → [Options] →... -
Page 25: Loudspeaker Mode
© myPhone 2014. All rights reserved. myPhone 3200i display: To check who phoned: Press [View]. The other way to check it is entering [Call history]. Select [Menu] → [Call history] → [Missed calls] → [Ok]. To call missed number select it from the list of missed calls and press <green handset>... -
Page 26: Dual Sim
© myPhone 2014. All rights reserved. myPhone 3200i Using the option [Edit] → from your Phonebook select a cantact that can be assigned to the corresponding key of [Speed dial]. After selecting the contacts press <green handset key> to go back to the main screen. -
Page 27: Connecting The Phone To Pc
© myPhone 2014. All rights reserved. myPhone 3200i Connecting the phone to PC myPhone 3200i can be connected to a PC via USB interface. This allows you to preview and exchange data between the computer and the phone. To do it proceed as follows: ... -
Page 28: Other Features
© myPhone 2014. All rights reserved. myPhone 3200i Enter the full phone number (country code, city code and contact number), and press green handset key, to establish a phone-call. 4. Other features Date and time settings To set date and time select the following option: [Menu]→... -
Page 29: Display Settings
© myPhone 2014. All rights reserved. myPhone 3200i Display settings [Menu] → [Settings] → [Phone settings] → [Display]: [Wallpaper] → select [System] (if you want to view system wallpapers) or [User defined] (if you want to add your own wallpaper from micro SD card), then select an image from the list. -
Page 30: Calculator
© myPhone 2014. All rights reserved. myPhone 3200i and <down> keys, and confirm by pressing [Ok]. Select any option from the list and press option [Edit]. There are the following options available: [Status] – enable or disable the alarm. -
Page 31: Factory Settings
Failure to observe this precaution could result in damage to your eyes. Call history There is a [Call history] available in myPhone 3200i. You will find it in [Menu] → [Call history]. It is possible to search through the Call history and check what type of calls have been made or answered. -
Page 32: Audio Player
© myPhone 2014. All rights reserved. myPhone 3200i Received calls Delete call logs Call times Text messages counter. To enter one of the above options select it from the list and press [Ok] key. Audio player Audio player is located in: [Menu] →... -
Page 33: Sound Recorder
Sound recorder myPhone 3200i is equipped with sound recorder – it allows you to register sounds. To enable it select [Menu] → [Multimedia] → [Sound recorder]. To start recording select [Options] → [New recording] → [Ok]. To stop recording [Stop] → [Yes] (during recording). -
Page 34: Calendar
[Options] → [List], select the recording from the list and enter [Options] → [Play]. Calendar There is a calendar available in myPhone 3200i. It allows you to preview the current or any date. To enter Calendar application, enter: [Menu] → [Tools] →... -
Page 35: Pairing Bluetooth Devices
© myPhone 2014. All rights reserved. myPhone 3200i Visibility – enabling this feature allows the visibility of myPhone 3200i on the list of available devices of other phones, tablets and computers equipped with Bluetooth module. [My device] – there is a [Search new device] option available that allows you to view a list of devices equipped with Bluetooth, in range. -
Page 36: Sending Files Via Bluetooth
The file will be sent after acceptance by the recipient. Camera myPhone 3200i is equipped with a camera. It allows you to take photos and record videos. Taking photos To take a photo enter: [Menu] → [Multimedia] →[Camera]. -
Page 37: Video Recording
© myPhone 2014. All rights reserved. myPhone 3200i application. ([Menu] → [Multimedia] → [Image viewer]). Video recording. To record a video enter [Video recorder] application in: [Menu] → [Multimedia] → [Video recorder] then place your object in the frame of the camera and press the <OK>... -
Page 38: Troubleshooting
© myPhone 2014. All rights reserved. myPhone 3200i Battery status Missed SMS Music Player Headphones mode activated Connected to PC Troubleshooting Statement Sample solution Make sure that your SIM card has been Insert SIM card properly installed. If your SIM card is secured by a PIN code, enter a PIN after turning on the phone and confirm it by pressing <OK>... - Page 39 Nobody can get through to myPhone 3200. The phone must be switched on. You cannot hear the caller / caller cannot hear myPhone 3200i holder. Microphone should be placed very close to your mouth. Check if the build in microphone or speaker have not been covered.
-
Page 40: Care And Maintenance
© myPhone 2014. All rights reserved. myPhone 3200i keypad is correct. Check if number saved in [Phonebook] is correct; If it is necessary, enter the correct number. 5. Care and maintenance Proper battery use The battery is powered via a charger. If the battery level is low, charge it. -
Page 41: Proper Battery Use
© myPhone 2014. All rights reserved. myPhone 3200i phone, even if the battery is charged properly. Do not dispose used battery in a fire! Do not throw away old, unused battery - send it or return to an authorized recycling collection site. -
Page 42: Environment Safety
© myPhone 2014. All rights reserved. myPhone 3200i user and environmental safety. Safety while driving Apart from emergency situations, headset should be used always while driving a car. This will ensure safety during a phone call – the movements won`t be restricted. If you do not have a headset, and you need to use the phone, pull over and stop the car. -
Page 43: Technological Criteria
© myPhone 2014. All rights reserved. myPhone 3200i stations, chemical plants, etc.) it is advisable to turn off the phone. Check out the regulations governing the use of GSM equipment in these places. Technological criteria Network: GSM 900/1800 Some services may depend on your service provider, the state of the local GSM network, version of your SIM card and the way you are using your phone. - Page 44 © myPhone 2014. All rights reserved. myPhone 3200i manufactured to not exceed the limits for exposure to radio- frequency (RF) energy, as recommended by the EU Council. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population.
- Page 45 © myPhone 2014. All rights reserved. myPhone 3200i You must dispose electrical and electronic equipment, providing these to the designated point at which such hazardous wastes are subjected to a process of recycling. Collecting this type of waste in enclosed places and the correct process of recovery help to protect natural resources.
- Page 46 © myPhone 2014. All rights reserved. myPhone 3200i...
- Page 47 © myPhone 2014. All rights reserved. myPhone 3200i...
