General Maintenance

Relay and Fuse (Inside Rear Door)

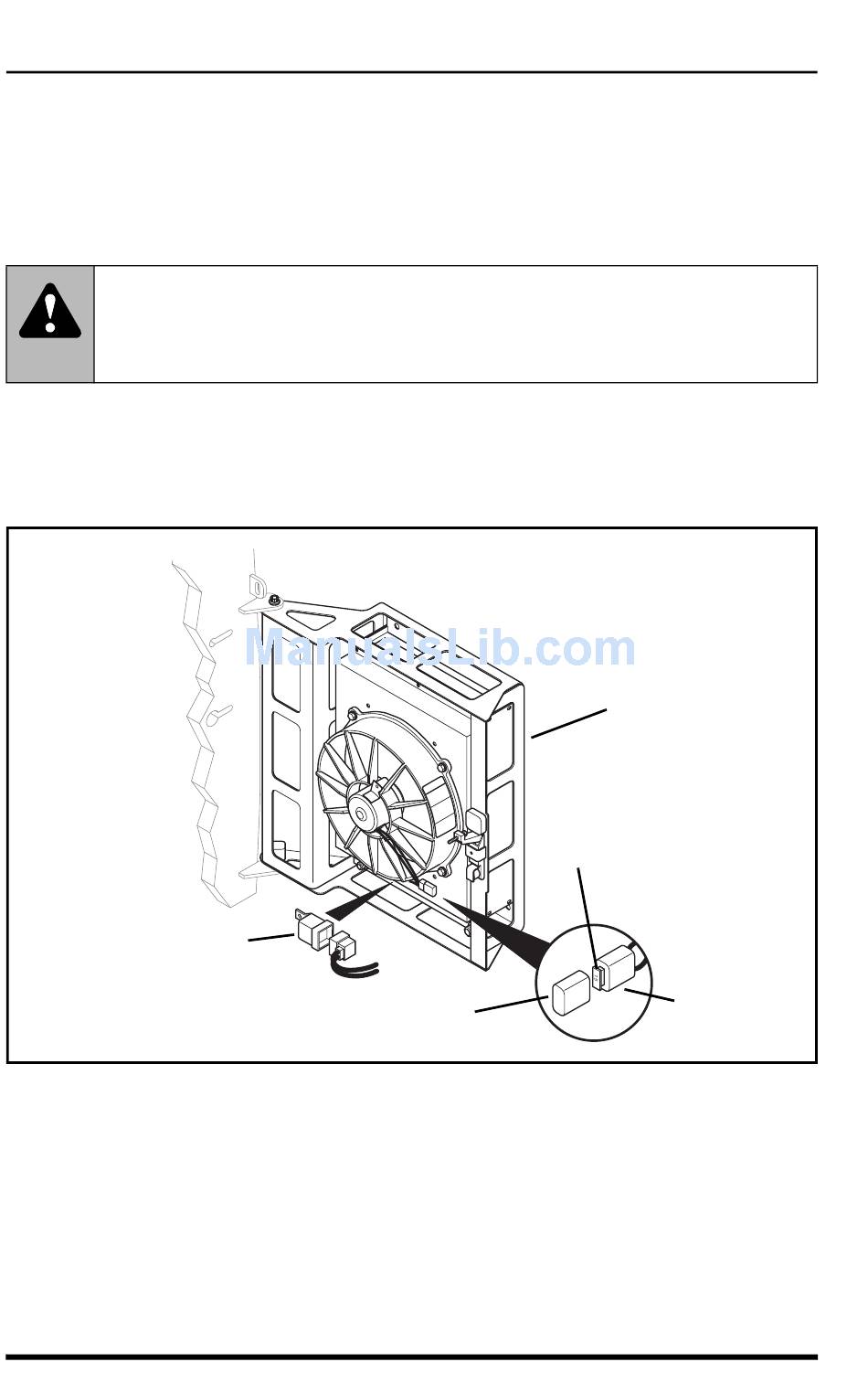

There is one relay (1) and one fuse (2) located inside the rear door (3). The
relay is a 12 volt relay that controls the fan on the air conditioner condenser.
The fuse is a 15 amp (Blue) fuse that protects the fan motor on the air
conditioner condenser.
WARNING:
tion switch in the RUN position. Contact with moving parts can
cause death or serious personal injury.
Unlatch and open the rear door. The relay is mounted to the fan shroud.
Remove the protective cover (4) from the fuse holder (5) to gain access to
the 15 amp (Blue) fuse.
202
DO NOT open the rear door with the igni-
1
3
2
4
Model MMV Rev. 10/11
5
OM1660
