- Page 1 Owner’s Manual & Safety Instructions Owner’s Manual & Safety Instructions Save This Manual Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, Keep this manual for the safety warnings and precautions, assembly, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual operating, inspection, maintenance and cleaning procedures.
- Page 2 Alternating Current Read the manual before setup and/or use. Amperes WARNING marking concerning Risk of Fire. Follow connection procedure. Cold Cranking Amps WARNING marking concerning Risk of Explosion. For technical questions, please call 1-888-866-5797. Page 2 Item 62749...
- Page 3 Do not leave Power Pack unattended manufacturer may result in while switched on. It could result a risk of fire, electric shock, or injury to persons. in fire and property damage. For technical questions, please call 1-888-866-5797. Item 62749 Page 3...
- Page 4 LEAD-ACID battery only. f. Study all battery manufacturer’s b. For emergency use only. Do specific precautions for not use the Power Pack as a jump-starting. replacement for a vehicle battery. For technical questions, please call 1-888-866-5797. Page 4 Item 62749...
- Page 5 Peak Current 450 A Battery Lithium Iron Phosphate 12,000 mAh 12 V DC Power Output 6 A USB Output 5 V DC, 2 A LED Flashlight 3 W / 250 Lumens For technical questions, please call 1-888-866-5797. Item 62749 Page 5...
- Page 6 12 V DC Output Port Output Port Flashlight Button Charging Input Socket 12 V Port Adapter Engine Start Socket USB Cable Battery Clamp Cable 120 V AC Adapter 12 V DC Adapter For technical questions, please call 1-888-866-5797. Page 6 Item 62749...
- Page 7 12 V DC Adapter from outdoors to prevent build up of the vehicle’s 12 V DC outlet and deadly, odorless exhaust gases. disconnect it from the Power Pack. For technical questions, please call 1-888-866-5797. Item 62749 Page 7...
- Page 8 Then connect the black Negative and then the red Positive Battery Clamp. Battery Clamp to the vehicle chassis. Recharge the Power Pack. WARNING! DO NOT CONNECT TO THE NEGATIVE TERMINAL OF THE BATTERY. For technical questions, please call 1-888-866-5797. Page 8 Item 62749...
- Page 9 USB cable) into the USB Output device from the USB Cable. Port on the side of the Power Pack. Recharge the Power Pack. Plug the appropriate connector on the USB Cable into the device. For technical questions, please call 1-888-866-5797. Item 62749 Page 9...
-
Page 10: Troubleshooting
Battery Clamp Cable Repair or replace Battery Red warning light flashes. malfunction. Clamp Cable. Follow all safety precautions whenever diagnosing or servicing the tool. Disconnect power supply before service. For technical questions, please call 1-888-866-5797. Page 10 Item 62749... - Page 11 Note: If product has no serial number, record month and year of purchase instead. Note: Some parts are listed for illustration purposes only, and are not available individually as replacement parts. This item has no user-servicable internal parts. Do not open the housing. For technical questions, please call 1-888-866-5797. Item 62749 Page 11...
- Page 12 Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
Need help?
Do you have a question about the 62749 and is the answer not in the manual?
Questions and answers
Never charged up, or seemed to work
1. Check if all parts are intact and undamaged upon unpacking.
2. Ensure the charger is compatible and functioning.
3. Measure output voltage; it should be around 13.3 volts when charging.
4. Try jumpstart mode if normal charging fails.
5. Fully recharge immediately after purchase and after each use.
6. Recharge every 3 months if not in use to maintain battery life.
7. If it still does not charge or work, contact technical support at 1-888-866-5797.
This answer is automatically generated
Blue and green lights come on when plugged in to charge

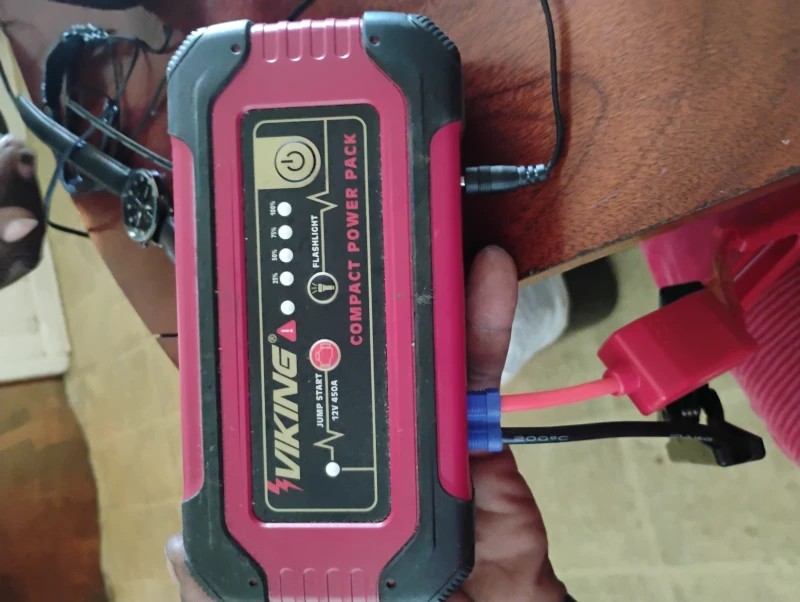

The blue indicator lights show the power level of the Viking 62749 Power Pack. There are four blue lights marked 25%, 50%, 75%, and 100%. When all four blue lights are lit, the battery is fully charged. The green indicator light turns on when the unit is ready for use and goes out when the unit is turned off.
This answer is automatically generated

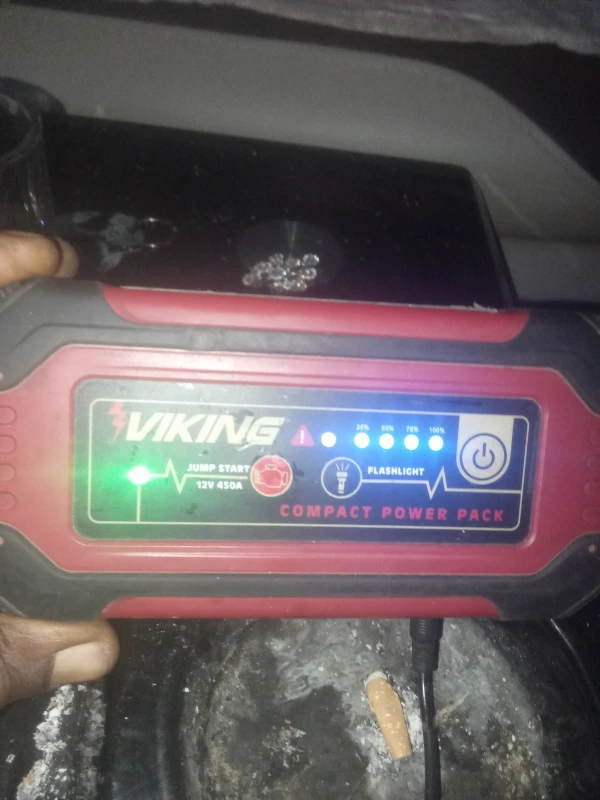

(1) voltage seems to be at the clamps all the time, power on or off. A 12v device will get 12v and work from the clamps. (2) The green light never comes on in the battery jump sequence. Instead the red light comes on blinking.
When I connect the cables the green light flashes by the faulty light
