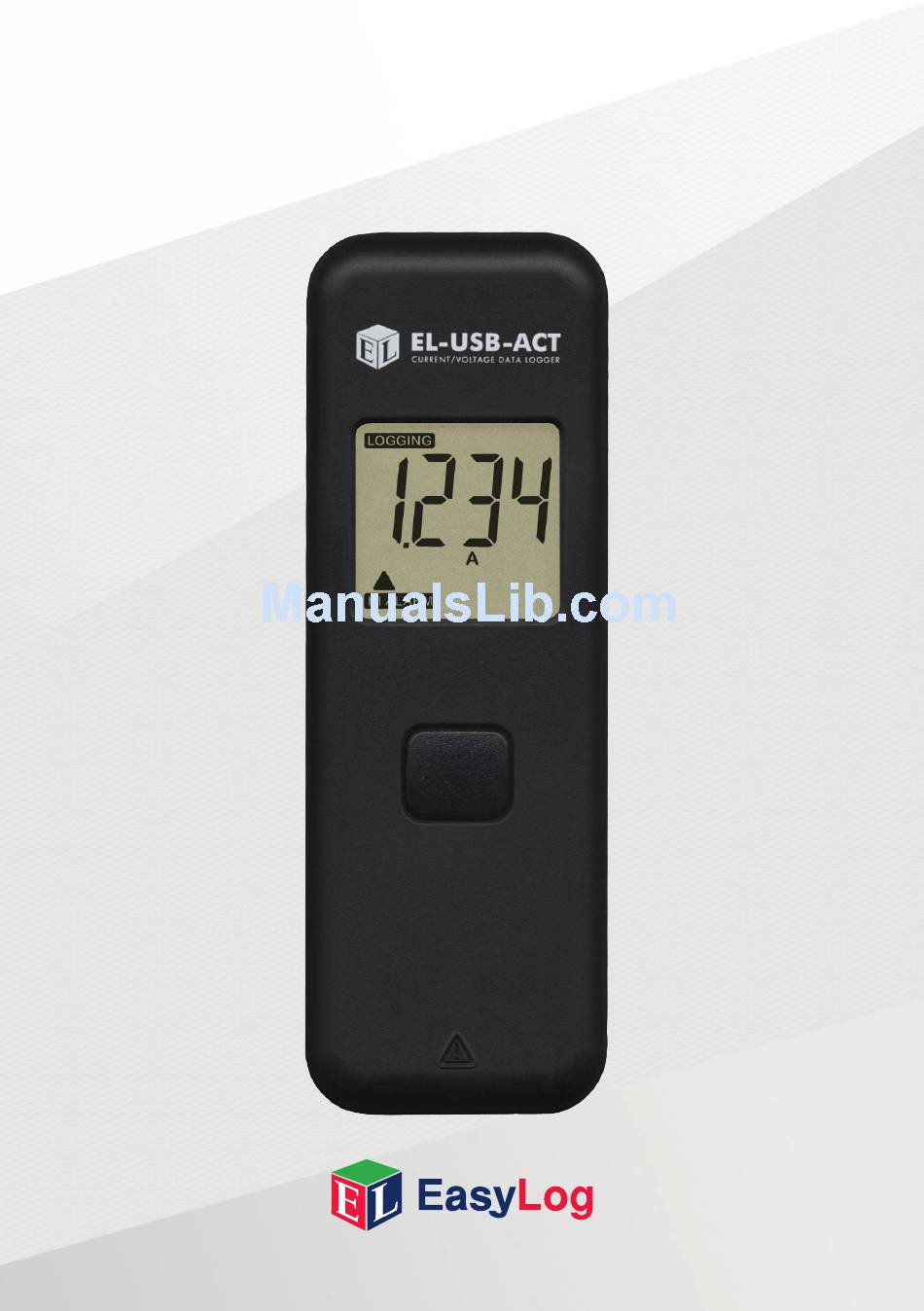

- Page 1 EL-USB-ACT Quick Start Guide...
- Page 2 Thank you for purchasing a Lascar EL-USB-ACT data logger. This quick start guide provides basic information on the use of your product. For more detailed instruction consult the user manual on the mini-CD supplied. Getting to know your data logger...
-
Page 3: Install Your Battery
Install your battery The EL-USB-ACT is supplied with two AA batteries fitted. To begin use the battery tab must be removed as shown below. Install EasyLog Software and Driver 1 Insert the EL-WIN-USB CD into the 2 Click ‘Next’. CD drive of your computer. If the CD does not automatically load, navigate to the CD and double click ‘Setup’. - Page 4 3 Read the ‘IMPORTANT NOTICE’, 4 Click ‘Install’. select ‘I Agree’ and then ‘Next’. 5 Click ‘Yes’. 6 Click ‘Finish’.
- Page 5 7 Click ‘Install’. 8 You have successfully installed the necessary software and driver for your EL-USB-ACT data logger. An ‘EasyLog USB’ icon will be placed on your desktop. Your Data Logger is now ready for use! To begin using your data logger, connect the mini-USB cable to your data logger and an available USB port on your PC.
- Page 6 723V a.c. or 1000mV d.c.; an input to the data logger above these values may damage the data logger. If you are unsure of your choice of current clamp, please contact Lascar for advice. Ensure connectors are pushed fully home Copyright Lascar Electronics Ltd.
