INSTALLATION AND OPERATION MANUAL
MANUAL DE INSTALACIÓN Y FUNCIONAMIENTO
INSTALLATIONS- UND BETRIEBSHANDBUCH
MANUEL D'INSTALLATION ET DE
FUNCTIONNEMENT
MANUALE D'INSTALLAZIONE E D'USO
Do not perform installation work, without referring to our installation manual.
No realice la instalación de este equipo, sin antes consultar este manual de instalación.
Bei der Installation unbedingt die Hinweise in der Installationsanleitung beachten.
Consulter notre manuel avant de réaliser une quelconque installation.
Realizzare l'installazione, seguendo quanto indicato in questo manuale.
Nao inicie os trabalhos de montagem, sem consultar o nosso manual de montagem.
Udfor ikke installationsarbejder uden forst at donsultere vores vejledning.
Voer geen enkele handeling uit om de apparatuur alvorens deze hadleiding te hebben
doorgelezen.
Utför inte nagra installationsarbeten utan att först läsa var installationsmanual
Ìçí Þóåôå óôçí åãêáôÜóôáóç, ÷ùñßò ðñéí íá Ý÷åôå óõìâïõëåõèåß áõôo ôï åã÷åéñßäéï åãêáôÜóôáóçò
PC-P5H

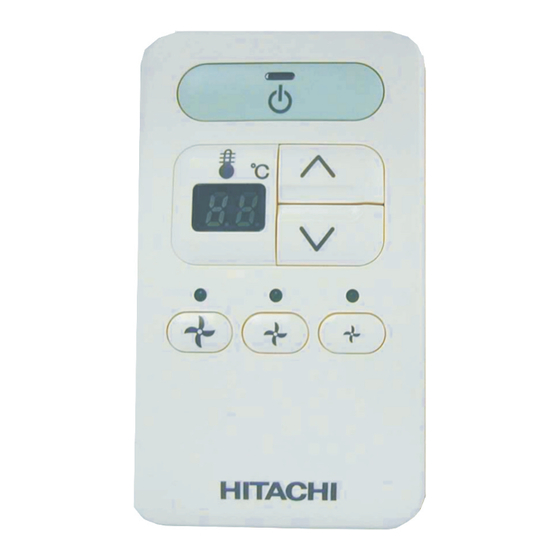

REMOTE CONTROLLER
MANUAL DE INSTALAÇÄO E DE
FUNCIONAMENTO
BRUGER- OG MONTERINGSVEJLEDNING
INSTALLATIE- EN BEDIENINGSHANDLEIDING
HANDBOK FÖR INSTALLATION OCH ANVÄNDING
ÅÃ×ÅÉÑÉÄÉÏÅÃÊÁÔÁÓÔÁÓÇÓÊÁÉËÅÉÔÏÕÑÃÉÁÓ
Advertisement
Table of Contents
Related Manuals for Hitachi PC-P5H
Summary of Contents for Hitachi PC-P5H
-
Page 1: Remote Controller
PC-P5H REMOTE CONTROLLER INSTALLATION AND OPERATION MANUAL MANUAL DE INSTALAÇÄO E DE MANUAL DE INSTALACIÓN Y FUNCIONAMIENTO FUNCIONAMENTO INSTALLATIONS- UND BETRIEBSHANDBUCH BRUGER- OG MONTERINGSVEJLEDNING MANUEL D’INSTALLATION ET DE INSTALLATIE- EN BEDIENINGSHANDLEIDING FUNCTIONNEMENT HANDBOK FÖR INSTALLATION OCH ANVÄNDING ÅÃ×ÅÉÑÉÄÉÏÅÃÊÁÔÁÓÔÁÓÇÓÊÁÉËÅÉÔÏÕÑÃÉÁÓ MANUALE D’INSTALLAZIONE E D’USO Do not perform installation work, without referring to our installation manual. - Page 3 DANGER – Immediate hazard which WILL result in severe injury or death. PELIGRO – Riesgos inmediatos que PRODUCIRÁN lesiones personales graves e incluso la muerte. GEFAHR – Unmittelbare Gefahrenquellen, die zu schweren Verletzungen oder zum Tod führen. DANGER – Dangers instantanés de blessures corporelles sévères ou de mort. PERICOLO –...
-
Page 5: Safety Summary
If poured, it will cause a serious electrical shock. WARNING: DO NOT perform installation work and electrical wiring connection by yourself. Contact your distributor or dealer of HITACHI and ask them for installation work and electrical wiring by service person. CAUTION: - DO NOT install the indoor unit, outdoor unit, controller and cable at such places as;... -
Page 6: Installation Work
INSTALLATION WORK 2.3. INSTALLATION SPACE In case of installing the controllers in vertical line, keep a distance more than 50mm between the controllers vertically. If the distance is insufficient, the front cover of the controller can not open wide enough. More than 50mm 2.4. -
Page 7: Electrical Wiring
ELECTRICAL WIRING - When Using Switch Box Prepare field-supplied JIS Box (JIS C 8336-1988). JIS Box (JIS C8336 – 1988) M4 Screws Insert the connector (Field Supplied) 4. Attach the controller onto the holding bracket. At first, attach the upper side, and then the lower side. - Page 8 ELECTRICAL WIRING 3.2. ELECTRICAL WIRING FOR MULTIPLE UNITS This remote control switch can control sixteen units, as the maximum. Max. 16 Indoor Units Remote Control In case of this modification, Remote Switch PC-P1HE wiring connection and other Control (Subsidiary) works shall be performed Switch Electrical Box of Indoor Unit Electrical Box of Indoor Unit as indicated in the following...
-
Page 9: Checking Procedure
- Power Supply for Indoor Unit is Not Turned ON or Incorrect Wiring. ATTENTION: - Incorrect Connection of Connecting PC-P5H does not have Test Run mode. Cable between Indoor Units or Incorrect The test running shall be operated by Connection of Controller Cable the outdoor unit. -
Page 10: Operation
Temperature Setting Switch ºC FAN SPEED (Green) FAN SPEED Setting Switch-High FAN SPEED Setting Switch-Medium FAN SPEED Setting Switch-Low HITACHI To Start To Stop 1. When turning ON the indoor unit, initial 1. Press the Switch. Air Conditioning is process will start. -
Page 11: Optional Function
OPTIONAL FUNCTION OPTIONAL FUNCTION Normal mode (When unit is not operating) Press the ) and ( )Switch Change to the function setting mode simultaneously Press the ) and ( ) Switch simultaneously for more than 3 seconds. Mode Setting Press the Switch and select the operation mode ºC : Auto... -
Page 12: Alarm Indication
ALARM INDICATION ALARM INDICATION Refrigerant Cycle Number The Run LED (Red) is flickering. Indoor Unit Number Indoor Unit No. and Alarm Code is indicated ºC as shown in the right figure. Model Code Model UTOPIA Total Number of After 1 second DC Inverter connected units SET-FREE...
