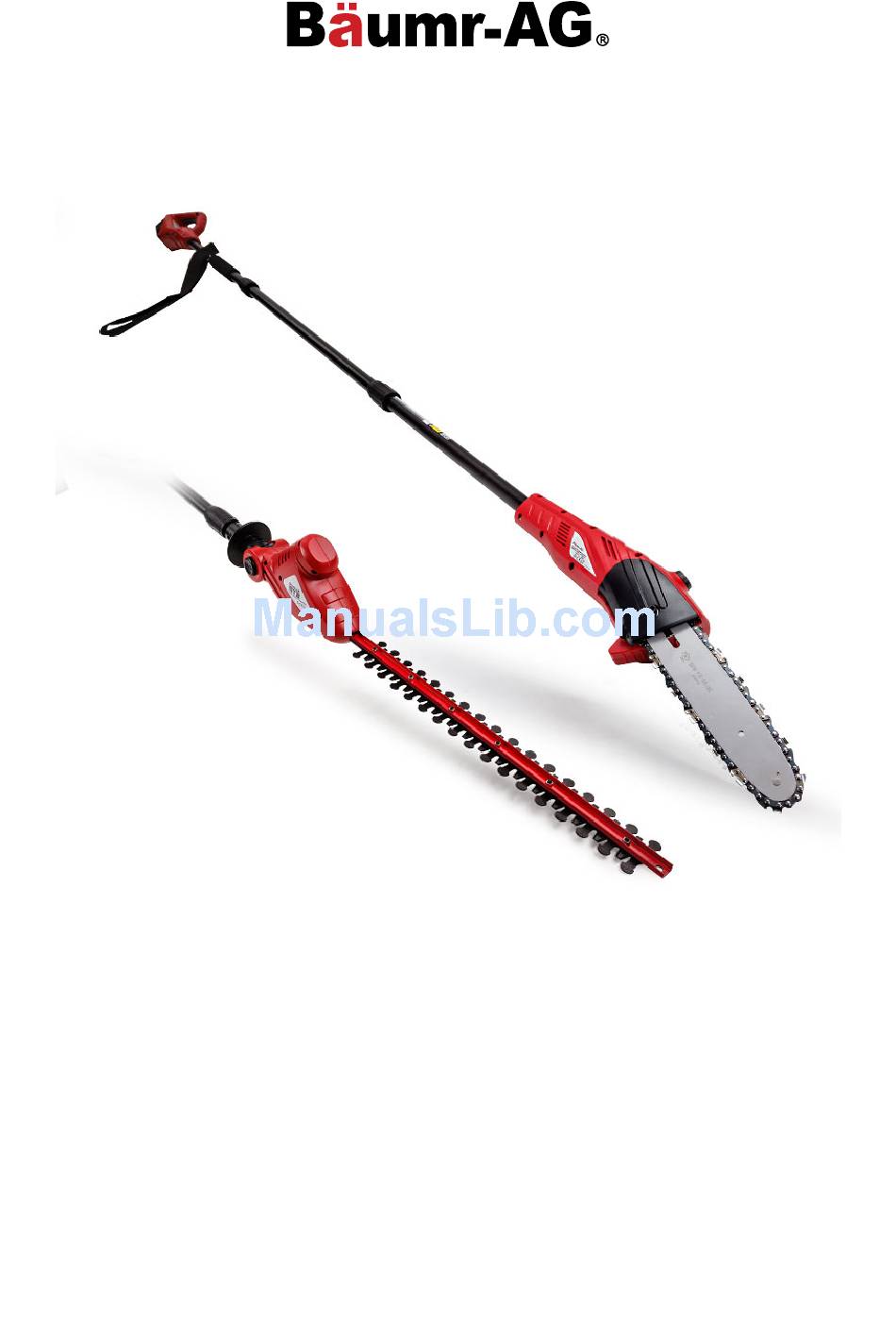

- Page 1 Cordless Pole Chainsaw and Pole Hedge Trimmer pack User Manual RETAIN THIS MANUAL FOR FUTURE REFERENCE PLEASE READ THIS MANUAL CAREFULLY BEFORE USE...
-
Page 2: Table Of Contents
Cordless Pole Chainsaw and Pole Hedge Trimmer pack Table of Contents Pole Chainsaw ................................1 Safety ..................................1 General Safety ..............................1 Trimming Safety ..............................3 Battery Charging Safety ............................. 4 Components ................................5 Set-Up ..................................6 Operation.................................. 8 Charging the Battery ............................8 Saw Chain Tension Adjustment ......................... -
Page 3: Pole Chainsaw
Cordless Pole Chainsaw and Pole Hedge Trimmer pack Pole Chainsaw Safety General Safety • WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. • Save all warnings and instructions for future reference. The term "power tool"... - Page 4 Cordless Pole Chainsaw and Pole Hedge Trimmer pack − Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. −...
-
Page 5: Trimming Safety
Cordless Pole Chainsaw and Pole Hedge Trimmer pack Trimming Safety • Never stand directly under the limb you are trimming. Always position yourself out of the path of falling debris. • Never stand on a ladder or other type of unstable support while using the Pole saw. -
Page 6: Battery Charging Safety
Cordless Pole Chainsaw and Pole Hedge Trimmer pack Battery Charging Safety • Before attempting to charge the battery pack, thoroughly read all Safety Instructions. • The battery needs to be charged before first use and whenever it fails to produce sufficient power on jobs that were easily done before. -
Page 7: Components
Cordless Pole Chainsaw and Pole Hedge Trimmer pack Components No. Part Name No. Part Name Saw chain Grip area Guide bar Buckle Scabbard Strap Trigger lockout Power head Handle Top tube Trigger Locking knob Battery Under tube Battery release button... -
Page 8: Set-Up
Cordless Pole Chainsaw and Pole Hedge Trimmer pack Set-Up IMPORTANT! The chainsaw may come with plastic spacers over or around the bar studs - the spacer is for shipping purposes only and must be removed before mounting the chain bar. After removing the chain brake cover, remove any spacers, then mount the chain bar as described. - Page 9 Cordless Pole Chainsaw and Pole Hedge Trimmer pack 4. Secure the strap buckle with a screw (see figure below): 5. Fill-up the pole saw's bar oil tank with engine oil (IMPORTANT: Tighten the cap securely after filling up with oil). 6.
-
Page 10: Operation
Cordless Pole Chainsaw and Pole Hedge Trimmer pack Operation It is important you read and understand Always wear ear protection. Loud noises the instruction manual before first use for an extended period of time may and keep the manual in a safe place for damage your hearing. -
Page 11: Saw Chain Tension Adjustment
Cordless Pole Chainsaw and Pole Hedge Trimmer pack Saw Chain Tension Adjustment WARNING! Remove battery from pole saw before servicing. Severe injury or death could occur from body contact with moving chain. WARNING! Cutting edges on chain are sharp. Use protective gloves when handling chain. WARNING! When cleaning the saw body: •... - Page 12 Cordless Pole Chainsaw and Pole Hedge Trimmer pack 4. Loosen guide bar screw before adjusting chain. 5. Turn adjusting screw at front of power head clockwise until slack is out of chain. 6. Wearing protective gloves, pull down on chain to check chain tension. 7.
-
Page 13: Cutting With The Chainsaw
Cordless Pole Chainsaw and Pole Hedge Trimmer pack Cutting with the Chainsaw 1. Fill up the pole saw's bar oil tank. 2. Attach the battery. 3. Use both hands to grip pole saw. Use designated grip areas and strap when operating the pole saw (see figure to the right). Use a firm grip. Thumbs and fingers must wrap around pole saw handle and pole. -
Page 14: Sharpening The Saw Chain
Cordless Pole Chainsaw and Pole Hedge Trimmer pack Sharpening the Saw Chain Keep chain sharp. Your saw will cut faster and more safely. A dull chain will cause undue sprocket, guide bar, chain, and motor wear. If you must force chain into wood and cutting creates only sawdust with few large chips, the chain has become dull. -
Page 15: Filing Cutter Depth Gauges
Cordless Pole Chainsaw and Pole Hedge Trimmer pack Filing Cutter Depth Gauges The cutter depth gauge clearance is reduced as cutters are sharpened. After every second or third sharpening, reset the cutter depth gauges. 1. Place the depth gauge tool (.025") firmly across the top of the two cutters. Make sure that the depth gauge enters the slot in the depth gauge tool (see figure below). - Page 16 Cordless Pole Chainsaw and Pole Hedge Trimmer pack Refer to the figure below while completing the following steps: 1. Loosen and remove the guide bar screw. 2. Remove the sprocket cover. 3. Remove the saw chain. 4. Place the new chain around the drive sprocket, along the top groove of the guide bar and around the guide bar nose.
-
Page 17: Storage
Cordless Pole Chainsaw and Pole Hedge Trimmer pack CAUTION! Do not place the chain on the saw backwards. If chain is backwards, saw will vibrate badly and will not cut. Storage If storing the saw for more than 30 days, follow the steps below. 1. -
Page 18: Pole Hedge Trimmer
Cordless Pole Chainsaw and Pole Hedge Trimmer pack Pole Hedge Trimmer Safety Know Your Tool • WARNING! Carefully observe the instructions in this manual to reduce the risk of personal injury or material damage. • Read all of this manual carefully before operating the tool. •... -
Page 19: Safety Instructions For Battery
Cordless Pole Chainsaw and Pole Hedge Trimmer pack • Power tools use and care − Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. −... -
Page 20: Safety Instructions For Charger
Cordless Pole Chainsaw and Pole Hedge Trimmer pack • Charge only by using the charger provided with the tool. • Before charging, make sure that the battery is dry and clean. • Use only the correct type of battery for the tool. •... -
Page 21: Electrical Safety
Cordless Pole Chainsaw and Pole Hedge Trimmer pack • Beware of overhead power lines. • Avoid operating while people, especially children are nearby. • Dress properly! Do not wear loose clothing or jewellery which can be caught in moving parts. Use of sturdy gloves, non-skid footwear, and safety glasses is recommended. -
Page 22: Components
Cordless Pole Chainsaw and Pole Hedge Trimmer pack Components No. Part No. Part Lock-off button Lock button Main switch handle Blade Battery pack Blade sheath Strap guard Charger Grip area Charger station Guard Charging indicator... -
Page 23: Set-Up
Cordless Pole Chainsaw and Pole Hedge Trimmer pack Set-Up WARNING! Before assembly, remove the battery pack from the tool. Fitting and removing the battery Your hedge trimmer is equipped with a battery pack, which powers the unit. Fitting the Battery Pack 1. -
Page 24: Operation
Cordless Pole Chainsaw and Pole Hedge Trimmer pack 2. Turn the locking knob in the “LOCK” direction. (IMPORTANT: Must turn the locking knob tightly). See image below. 3. Buckle in the strap. (See Components section). You can either use the buckle strap or not. Operation It is important you read and understand Always wear ear protection. -
Page 25: Operating The Hedge Trimmer
Cordless Pole Chainsaw and Pole Hedge Trimmer pack Operating the Hedge Trimmer 1. Turn the swivel handle to a suitable position. Push the lock button and then turn the swivel handle to the desired position. Release the lock button again and check whether the button is locked in place. NOTE: The swivel handle can be locked in five positions (-60°, -30°, 0°, 30°... -
Page 26: Charging The Battery
Cordless Pole Chainsaw and Pole Hedge Trimmer pack Charging the Battery The battery needs to be charged before first use and whenever it fails to produce sufficient power on jobs that were easily done before. After several charge and discharge cycles, the battery will attain full capacity. The battery may become warm while charging;... -
Page 27: Important Battery Charging Reminders
Cordless Pole Chainsaw and Pole Hedge Trimmer pack Important Battery Charging Reminders Longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 18 – 24°C. Do not charge the battery pack in very low or very high air temperatures. This is important and will prevent serious damage to the battery pack. -
Page 28: Technical Specifications
Cordless Pole Chainsaw and Pole Hedge Trimmer pack Technical Specifications Battery 20V 1300mAh Lithium Chainsaw 8 Inch Cutting Blade 21 Inch Double-Action Two-Sided Chain Speed 2.9 metres per second Cutting Blade No-Load Speed 1400rpm Bar and Chain Lubrication Automatic Oil Pot Capacity 80ml Throttle Control Handle Rubber Over Moulded... - Page 29 Some experts believe the incorrect or prolonged use of almost any product could cause serious injury or death. For information that may reduce your risk of serious injury or death consult thepoints below and additionall y , the information available at www.datastreamserver.com/safety - Consult all documentation, packaging and - The product has been supplied by a general merchandise...
