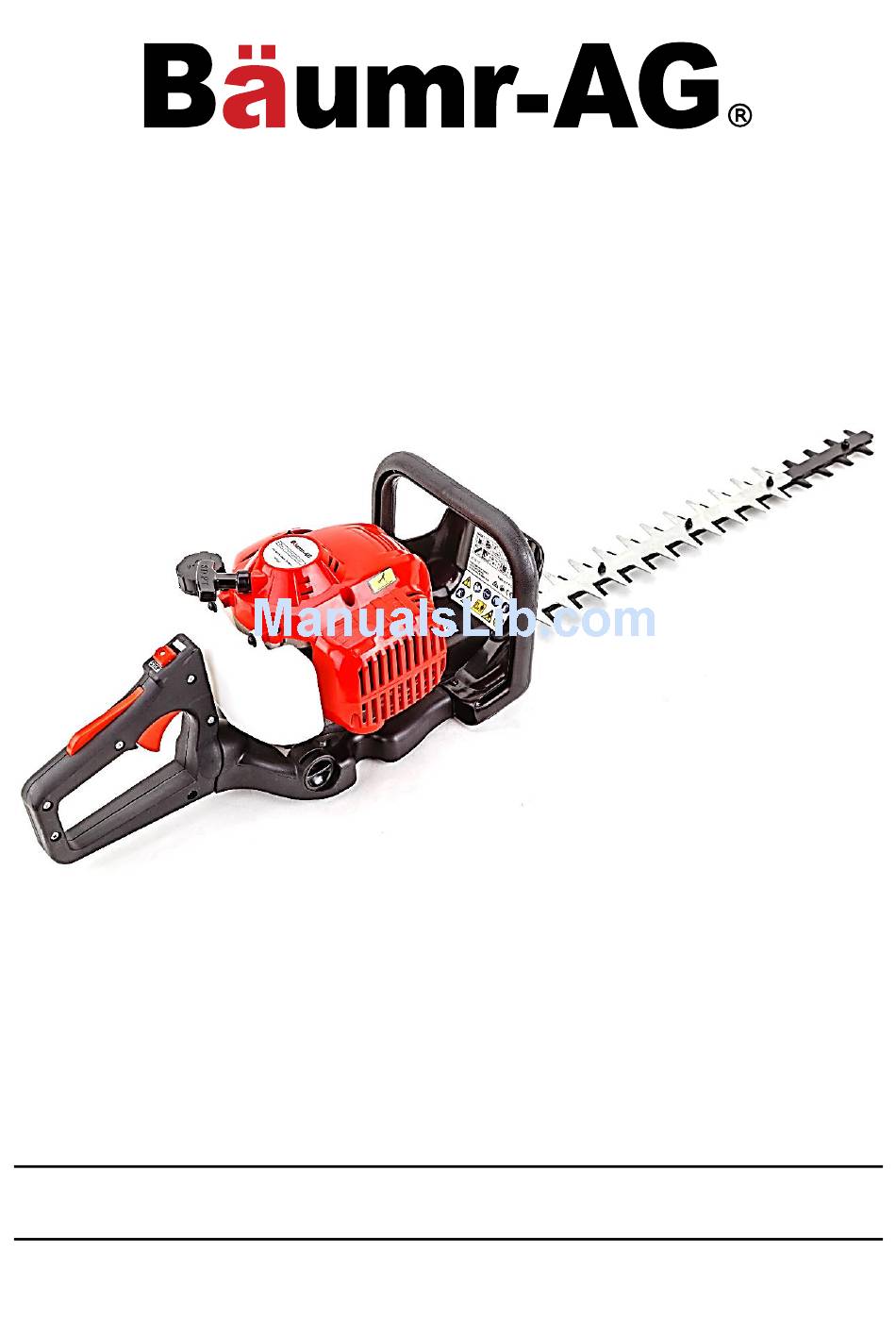

HTP300 Hedge Trimmer
User Manual
[Revision 1.0 May 2017]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY
DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by
this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HTP300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Baumr-AG HTP300

Summary of Contents for Baumr-AG HTP300

  • Page 1 HTP300 Hedge Trimmer User Manual [Revision 1.0 May 2017] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by...

  • Page 2: Safety

    HTP300 Hedge Trimmer Safety Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols: You WILL be KILLED or...
  • Page 3 HTP300 Hedge Trimmer General Fuel Safety General Service Information • Petrol/fuel/gasoline is extremely Have the equipment serviced or flammable – keep clear of repaired at authorized service centres naked flames or other ignition by qualified personnel only. sources. • Replacement parts must be original •...

  • Page 4: Table Of Contents

    HTP300 Hedge Trimmer Table of Contents Safety ............................. 2 Parts Identification ........................5 Engine and Machine Components ....................... 6 Before Use Checklist ........................7 Air Filter ................................ 7 Fuel ................................7 Priming the Fuel System ........................7 Engine Starting and Hedge Trimmer Operation ................8 Starting the Engine ............................

  • Page 5: Parts Identification

    HTP300 Hedge Trimmer Parts Identification Name Name Engine / Blade / Handle Assembly Tools / Accessories: Allen Key Spark Plug Tool / Screwdriver Blade Sheath Fuel Bottle E&OE ©2017 Bäumr-AG...

  • Page 6: Engine And Machine Components

    HTP300 Hedge Trimmer Engine and Machine Components Name Name Engine ON / OFF Switch Air Filter Assembly (air filter inside) Throttle Control Spark Plug Cover (spark plug inside) Choke Lever Main Handle Starter Cord Throttle Safety Switch Fuel Tank Handle Rotation Lock...

  • Page 7: Before Use Checklist

    HTP300 Hedge Trimmer Before Use Checklist Ensure that you carry out all procedures below before starting the engine or operating the equipment. All procedures described are generic in nature and slight variations between different models may exist. Failure to follow the checklist and carry out the procedures correctly may result in making the product warranty void.

  • Page 8: Engine Starting And Hedge Trimmer Operation

    HTP300 Hedge Trimmer Engine Starting and Hedge Trimmer Operation Starting the Engine 1. PRIME – If necessary, "prime" the fuel system. 2. CHOKE – If the engine is cold, place the choke (B) in the "COLD" position. If the engine is warm or the ambient temperature is high, place the choke in the "RUN"...

  • Page 9: Hedge Trimmer Operation

    HTP300 Hedge Trimmer Hedge Trimmer Operation Before use, ensure that there are no electrical cables or unseen hazards in the work area. • Do not use the machine if the cutting blades are damaged or blunt. • Always hold the machine firmly using both hands and machine handles.

  • Page 10: Maintenance

    HTP300 Hedge Trimmer Maintenance Running combustion engines in confined areas CAN KILL IN MINUTES. Engine exhaust fumes contain carbon-monoxide – a deadly gas that you cannot smell or see. NEVER run a combustion engine in confined areas EVEN IF windows and doors are open. ONLY run combustion engines OUTDOORS and away from doors, windows and vents.

  • Page 11: Checking, Cleaning Or Replacing The Air Filter

    HTP300 Hedge Trimmer Checking, Cleaning or Replacing the Air Filter Operating the machine without a functional air filter may cause severe engine damage and will void any warranty. • A dirty or oil saturated air filter will restrict air flow, which can reduce performance and be mistaken as fuel system problems.

  • Page 12: Checking, Cleaning Or Replacing The Fuel Strainer

    HTP300 Hedge Trimmer Checking, Cleaning or Replacing the Fuel Strainer A dirty or blocked fuel strainer will restrict fuel flow, which can reduce performance and be mistaken as fuel system problems. Check the condition of the fuel strainer before adjusting engine idle speed, where applicable.

  • Page 13: Maintaining The Spark Plug

    HTP300 Hedge Trimmer Maintaining the Spark Plug If the spark plug is damaged (cracked insulator, broken or eroded electrodes etc), replace it. • Always use spark plugs of the correct "heat range" - see Specifications. The spark plug is used to ignite the air/fuel mixture inside the engine. The spark plug has electrodes on one end and an electrical terminal on the other.

  • Page 14: Greasing The Gearbox

    HTP300 Hedge Trimmer Greasing the Gearbox The gearbox is used to activate the cutting blades. The gearbox internals operate at high speed and requires lubrication. It is recommended to grease the gearbox approximately every 6 months, possibly more frequently if used often. A grease gun and grease is required – normal automotive wheel bearing grease is suitable.

  • Page 15: Transportation And Storage

    HTP300 Hedge Trimmer Transportation and Storage Always ensure that the machine is cool enough to touch before transporting or storing. • Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources. • Always transport the machine with the engine ON/OFF switch in the “OFF” position.

  • Page 16: Troubleshooting

    HTP300 Hedge Trimmer Troubleshooting Running combustion engines in confined areas CAN KILL IN MINUTES. Engine exhaust fumes contain carbon-monoxide – a deadly gas that you cannot smell or see. NEVER run a combustion engine in confined areas EVEN IF windows and doors are open. ONLY run combustion engines OUTDOORS and away from doors, windows and vents.

  • Page 17: Specifications

    HTP300 Hedge Trimmer Reduced engine speed/power during use. Possible Fault Action Blades obstructed or dirty Clean and lubricate cutting blades. Blocked air filter Check and clean air filter. Carbon build-up in engine and/or Remove the engine cylinder head and clean any carbon from the combustion chamber. For entry to exhaust silencer the exhaust silencer, remove it and clean any carbon deposits from the exhaust port.

  • Page 18: Service And Maintenance Record

    HTP300 Hedge Trimmer Service and Maintenance Record Use the following tables as a record of machine servicing and maintenance. Keeping accurate records will help ensure better machine service life and may simplify fault diagnosis and any possible warranty claims. Place a tick in the required box for either clean or replace with the date, as required.
  • Page 19 Some experts believe the incorrect or prolonged use of almost any product could cause serious injury or death. For information that may reduce your risk of serious injury or death, consult the points below and additionally, the information available at www.datastreamserver.com/safety •...
