Axon P900 Series Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual





Manuale POS serie 900

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P900 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axon P900 Series

Summary of Contents for Axon P900 Series

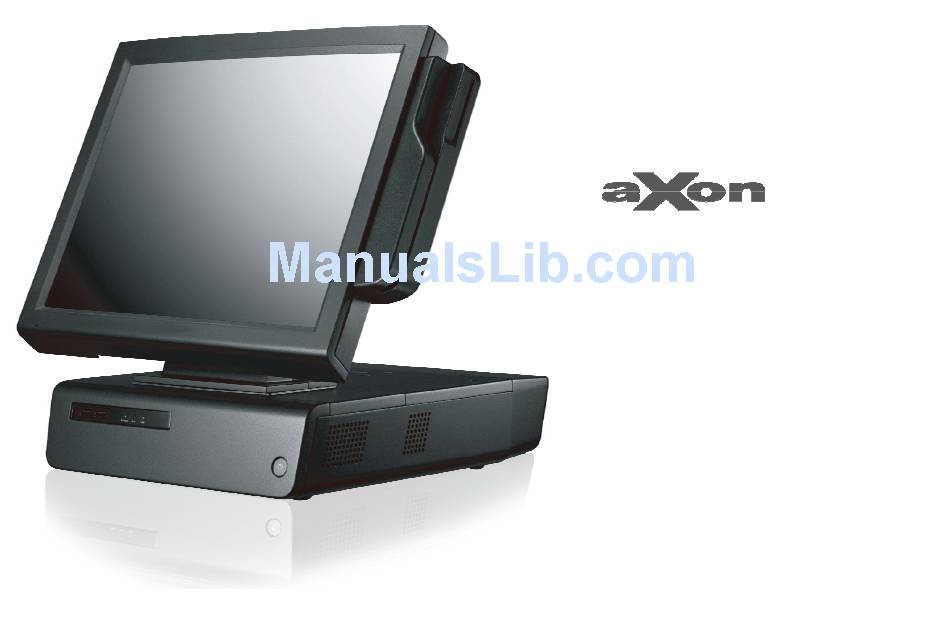

  • Page 1           Manuale POS serie 900...

  • Page 3: Table Of Contents

    `INDEX Chapter 1. Caution Chapter 3. BIOS SETUP Chapter 5. Motherboard jumper setting UTILITY 1-1. Warranty 3-1. Introduction 5-1. Motherboard Layout ………………………………………………. …………………………………………….. …………………………………………… 1-2. Copyright 3-2. BIOS Flash Memory Organization 5-2. Diagram ……………………………….…………….. …………... ………………………………………………………………. 1-3. Notice for safety 3-3.
  • Page 4 ………………………………. ……………………………………………... - CDP installation - MSR change Chapter 4. Trouble-shooting …………….……………….…………. …………………………………………………………… - Installation of Keyboard & mouse 4-1. Network trouble - MEMORY change …..………. ………………………………………. …..………………………………………………. - Installation of USB device 4-2. MSR trouble - HEATSINK change ………………………... ……………………….…………………….
  • Page 5 Chapter 1. Caution 1-1. Warranty We guarantee our POS terminal product and its parts against defects in materials and workmanship under proper use for a standard period of 2 years from the date of original purchase. During this period, we will repair or replace a defected and/or faulty product or parts without charge for spare and labor to the purchaser. The 1st year is applied with free workmanship and new or refurbished replacement parts with one-way freight cost born by the seller and the customer shall be responsible for return delivery charge.

  • Page 6: Notice For Safety

    1-3. Notice for safety 1. We recommend using proper power voltage against fire and electric shock. 2. Avoid exposing the product to direct sunlight and do not use the product near area of high moistures. - It might cause low reliability and operating disorder. 3.
  • Page 7 ● Notice against high frequency This product is qualified by FCC, CE, EMI and MIC compliance, thus it is governed with the previous qualification regulation to the safety. However, it is affected by the other high frequency generated. We don't consider system error and disorder due to the above affection. ●...

  • Page 8: 1-5. Installation Tips

    1. We prohibit product to use for other purpose, but not POS. It is not supported of usual PC operating & interface support. 2. This is for professional business field only to shop, not home appliance. 3. This is consisted with hardware and software politically. 4.
  • Page 9 4. Allow using only ground connected and quality certificated power code and cable. 5. Keep out of direct sun-light, extreme high or low temperature, and humid area. 6. Take away from impact, shocked, and tremble place. 7. Place product to avoid with sewing machine, Welding instrument, electronic wave range, Audio and other high frequency generated equipment. 8.

  • Page 10: Checking Package

    Chapter 2. Product overview 2-1. Checking package 1. Confirm packing detail which is listed on user manual in package. 2. We provide POS terminal main unit, power cord, user manual and driver CD basically. » It is possible to download user manual and driver CD from our web. -10-...
  • Page 11 [Package contents] Driver CD User manual Power cord SlimPOS main unit -11-...
  • Page 12 [Options : Customer display] -12-...

  • Page 13: Preparing Before Installation

    2-2. Preparing before installation 1. Remove masking tape for Touch screen protection. (It may cause abnormal operating when masking tape is not removed.) 2. Install option product(customer display) first when it need to set up with POS main unit. 2-3. Product consist - Detail indication can be different with each POS terminal model.
  • Page 14 [Front view] SMART CARD READER LCD & TOUCH PANNEL DISPLAY MAGNETIC STRIPE READER USB Port POWER, HDD, LAN LED POWER SWITCH -14-...

  • Page 15: Rear View

    [Rear view] Display Hinge Rear For Cable Management Customer Display Cover Rear Connectors -15-...
  • Page 16 [Power & I/O View] Description Description AC power Parallel port PS/2 port port mouse PS/2 port port keyboard COM1, COM2, COM3 port -16-...

  • Page 17: Setup Optional Item

    2-4. Setup Optional Item [CDP installation] Notice : Remove AC power cord completely in installation or dissection of CDP. 1. Split option cover from the rear of main unit. Finish. 3. Join 4 screw like the above and assemble CDP in Power off the main unit and on.
  • Page 18 [Installation of Keyboard and mouse] 1. Keyboard installation : Connection of PS/2 type keyboard. 2. Mouse installation : Connection of PS/2 type mouse. -18-...
  • Page 19 [Installation of USB device] USB port is provided 3 ports in rear I/O and 2 ports in side I/O supported standard USB 2.0. Some USB device(optional device) is operated only with specific driver software installed. It may cause abnormal working if it is connected with multiple USB devices together. We recommend you to use USB hub for supplying power with external adapter.
  • Page 20 [Ethernet port connection : LAN cable] LAN LED Ethernet port support 10/100/1000Mbps located with rear I/O. Connector type is RJ45. In proper connection, LAN LED upper RJ45 connector is activated with blinking. -20-...
  • Page 21 [Speaker and MIC. connection] 1. Speaker connection 2. MIC. connection -21-...

  • Page 22: Printer Connection

    [Printer connection] Connect printer cable among Serial, Parallel and USB port you required. -22-...
  • Page 23 [Power cable connection] Connect power cable to power connector. This POS terminal support 110V ~ 220V » We recommend you to use grounded power connection in AC adaptor connection with power code. -23-...
  • Page 24 [POS operating] Power button » Power on POS accessory and peripherals first before POS power-on. 2. Confirm Windows booting if it is fine. 1. Press power button in POS unit. (It will be lighted on POWER LED.) -24-...
  • Page 25 [POS closing] We recommend you to close Windows in O/S for product stability. Please close all application programs before Windows termination. 1. Select ‘Turn off Computer’ on Start in Windows initial screen 2. Click ‘Turn off’ in close windows -25-...
  • Page 26 2-5. System driver OPOS driver We provide UNIPOS driver for OPOS driver system to our product based on Windows XP O/S. You can download also from our web if you need latest version of OPOS driver. Supported device : Cash drawer, CDP(Customer display), MSR(Magnetic Card Reader) and Printer OPOS driver installation ●...
  • Page 27 Chapter 3. Overview of BIOS Features 3-1. Introduction The board uses an Intel BIOS that is stored in the Serial Peripheral Interface Flash Memory (SPI Flash) and can be updated using a disk-based program. The SPI Flash contains the BIOS Setup program, POST, the PCI auto-configuration utility, LAN EEPROM information, and Plug and Play support. The BIOS displays a message during POST identifying the type of BIOS and a revision code.

  • Page 28: Bios Flash Memory Organization

    BIOS Setup Program Menu Bar Maintenance Main Advanced Security Power Boot Exit Clears Displays Configures Sets Configures Selects boot Saves or passwords and processor advanced passwords power options discards displays and memory features and security management changes to processor configuration available features features and...

  • Page 29: 3-3. Resource Configuration

    3-3. Resource Configuration 3-3-1. PCI* Autoconfiguration The BIOS can automatically configure PCI devices. PCI devices may be onboard or add-in cards. Autoconfiguration lets a user insert or remove PCI cards without having to configure the system. When a user turns on the system after adding a PCI card, the BIOS automatically configures interrupts, the I/O space, and other system resources. Any interrupts set to Available in Setup are considered to be available for use by the add-in card.

  • Page 30: Legacy Usb Support

    3-5. Legacy USB Support Legacy USB support enables USB devices to be used even when the operating system’s USB drivers are not yet available. Legacy USB support is used to access the BIOS Setup program, and to install an operating system that supports USB. By default, Legacy USB support is set to Enabled.
  • Page 31 (a flash drive or a USB hard drive), or a CD-ROM. Both utilities verify that the updated BIOS match the target system to prevent accidentally installing an incompatible BIOS. Review the instructions distributed with the upgrade utility before attempting a BIOS update. BIOS update utilities = http://support.intel.com/support/motherboards/desktop/sb/CS-022312.htm.

  • Page 32: 3-7. Bios Recovery

    3-7. BIOS Recovery It is unlikely that anything will interrupt a BIOS update; however, if an interruption occurs, the BIOS could be damaged. Table 28 lists the drives and media types that can and cannot be used for BIOS recovery. The BIOS recovery media does not need to be made bootable. Table 28.
  • Page 33 3-8-2. Network Boot The network can be selected as a boot device. This selection allows booting from the onboard LAN or a network add-in card with a remote boot ROM installed. Pressing the <F12> key during POST automatically forces booting from the LAN. To use this key during POST, the User Access Level in the BIOS Setup program's Security menu must be set to Full.

  • Page 34: Adjusting Boot Speed

    3-9. Adjusting Boot Speed These factors affect system boot speed: • Selecting and configuring peripherals properly • Optimized BIOS boot parameters 3-9-1. Peripheral Selection and Configuration The following techniques help improve system boot speed: • Choose a hard drive with parameters such as “power-up to data ready” less than eight seconds, that minimize hard drive startup delays. •...

  • Page 35: Bios Security Features

    3-10. BIOS Security Features The BIOS includes security features that restrict access to the BIOS Setup program and who can boot the computer. A supervisor password and a user password can be set for the BIOS Setup program and for booting the computer, with the following restrictions: •...
  • Page 36 Chapter 4. Trouble-shooting 4-1. Network trouble Symptom Corrective Procedure Check if hub or switch is working correctly Cannot access LAN Check the RJ45 cable connection Check if the RJ-45 LEDs are on Reinstall LAN card Replace motherboard 4-2. MSR trouble Symptom Corrective Procedure MSR does not response...
  • Page 37 4-3. USB trouble Symptom Corrective Procedure USB port doesn’t work at all ▪ Check Windows device manager about device recognition ▪ Check USB device status and connection ▪ Erase and re-install USB driver ▪ Change USB device 4-4. LCD trouble Symptom Corrective Procedure LCD backlight doesn’t work...
  • Page 38 4-6. Power trouble Symptom Corrective Procedure Suddenly power off and system is not executed ▪ Check A/C cable connection ▪ Confirm motherboard power connection ▪ Check CPU setting status ▪ Check DRAM setting ▪ Check power button cable connection ▪ Change power supply unit 4-7.
  • Page 39 4-9. Printer trouble Symptom Corrective Procedure Printer is not operated ▪ Check printer power supply ▪ Replace printer paper roll ▪ Check printer cable -39-...
  • Page 40 Chapter 5. Motherboard jumper setting 5-1. Motherboard Layout -40-...
  • Page 41 Description A : PCI Conventional bus add-in card connector B : Front panel audio header Front panel USB headers C : Back panel connectors D : +12 V power connector (ATX12V) E : GMCH fan header F : Chassis fan header G : Intel Atom processor H : Intel 82945GC GMCH I : DIMM socket...
  • Page 42 Mini-ITX, compatible with microATX (6.75 inches by 6.75 inches Form Factor [171.45 millimeters by 171.45 millimeters]) Support for the following: Processor • Soldered-down Dual-Core Intel® Atom® processor • One 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) socket • Support for DDR2 533 MHz and DDR2 400 MHz DIMMs Memory (DDR2 800 MHz and DDR 667 MHz validated to run at 533 MHz only) •...

  • Page 43: Diagram

    5-2. Diagram Diagram of the major functional areas. The S-Video connector is not available on the atom Board. -43-...

  • Page 44: 5-3. Serial Port

    5-3. Serial port power setting Use own connection board for COM2 and COM3. Install own Serial port driver and use after normal operating checking. COM3 COM2 5○○○1 Pin 9 12V output 6○○○2 5○○○1 Pin 9 5V output 6○○○2 -44-...

  • Page 45: Setting

    5-4. Jumper setting Do not move the jumper with the power on. Always turn off the power and unplug the power cord from the computer before changing a jumper setting. Otherwise, the board could be damaged. The jumper determines the BIOS Setup program’s mode. Normal, configure, and recovery.

  • Page 46: Safety & Danger Precaution

    Chapter 6. Replacement 6-1. Safety and danger precaution We don't have responsibility about repairing through service provider which is not identified by seller officially. 1. Always disconnect the unit from the power outlet. 2. Remove all cables away from POS main unit before repairing. 3.

  • Page 47: Rear Cover Change

    [Rear cover change] -47-...

  • Page 48: Motherboard Change

    1. Loosen the screws by screwdriver. 2. Pull up rear cover. 3. Separate the rear cover. [Motherboard change] -48-...
  • Page 49 2. Loosen the 3 screws by screwdriver 1. Remove the cable cover. 3. Remove the rear cover. as described in holes. -49-...
  • Page 50 4. Loosen the 4 screws. 5. Remove the metal case cover. 6. Loosen the 2 screws. -50-...
  • Page 51 7. Remove the hinge cover. 8. Loosen the 2 screws. 9. Remove the part as shown. -51-...
  • Page 52 10. Loosen the 6 screws. 11. Remove the monitor hinge cover. 12. Loosen the 12 screws. -52-...
  • Page 53 13. Disconnect the 3 monitor cable 14. Remove the front cover and 15. Loosen the 6 screws and metal from Motherboard. disconnect the 2 cables. cover remove. -53-...
  • Page 54 18. Loosen the 2 screws from the 16. Remove all connectors from back I/O panel 17. Loosen the 4 screws. Motherboard. 19. Remove the Motherboard. -54-...
  • Page 55 [HDD change] 3. Disconnect the 2 cables and release After remove Motherboard 2. Release the 4 locking screws. the 4 screws on the side to remove 1. Loosen the screw to open a HDD cover. the HDD. -55-...

  • Page 56: Power Supply Change

    [Power supply change] 3. Remove the power supply bracket. 1. After remove HDD, separate 2. Loosen 3 screws. 4. After replace Power supply, bottom cover by loosen 4 screws. assemble in a reverse way. -56-...
  • Page 57 [MSR change] 3. Separate the MSR. 1. Loosen the 2 screws. 2. Disconnect the cable. 4. After replace MSR, assemble in a reverse way. -57-...
  • Page 58 [Memory change] 1. Open the release latches 2. Remove the memory. -58-...
  • Page 59 [HEATSINK change] 1. Separate the connector from 2. Loosen 2 screws. the motherboard. 3. Pull up Heatsink separate from motherboard. -59-...
  • Page 60 [Monitor change] 1. Loosen the 2 screws. 2. Remove the hinge cover. 3. Loosen the 2 screws. -60-...
  • Page 61 4. Remove the part as sharn. 5. Loosen the 6 screws. 6. Remove the monitor hinge cover. -61-...
  • Page 62 8. Disconnect the 3 monitor cable 7. Loosen the 12 screws. 9. Replace monitor. from motherboard. -62-...
  • Page 63 [Monitor AD board, Control board, Hub board, Touch controller, Inverter, LCD Panel change] 2. Loosen the 6 screws and separate the 3. Loosen the 11 screws to separate the 1. Separate the part. display cover. metal cover. -63-...
  • Page 64 HUB Board AD board Control board 6. Loosen the 2 screws and disconnect 4. Loosen the 2 screws and disconnect 5. Loosen the 4 screws and disconnect the cables to separate the hub board. the cables to separate the control board. the cables to separate the AD board.
  • Page 65 Touch controller Inverter Loosen the 2 screws and disconnect Loosen the 2 screws to separate Disconnect the 2 cable to remove the cables to separate the the inverter. the inverter. Touch controller. -65-...
  • Page 66 LCD touch panel 7. Loosen the 16 screws to separate LCD panel. 8. Separate touch panel from LCD panel. -66-...
  • Page 67 6-2. Power Supply Connectors • Main power : a 2 x 12 connector. This connector is compatible with 2 x 10 connectors previously used on Intel Desktop Boards. The board supports the use of ATX12V power supplies with either 2 x 10 or 2 x 12 main power cables. When using a power supply with a 2 x 10 main power cable, attach that cable on the rightmost pins of the main power connector, leaving pins 11, 12, 23, and 24 unconnected.
  • Page 68 • ATX12V power : a 2 x 2 connector. This connector provides power directly to the processor voltage regulator and must always be used. Failure to do so will prevent the board from booting. Signal Name Signal Name Ground Ground +12 V +12 V CAUTION...
  • Page 69 6-3. Reference to upgrade and power supply Dual-Core Intel Atom 1.6GHz x 2 Upgrade reference DDR2 DIMM 512MB (up to 2GB) 2.5" SATA HDD 120GB above Power Type Operating 0 ~ 60°C (32 ~ 140°F) Temperature Operating Humidity 0% ~ 90% relative humidity, non-condensing Power supply specification Size (W x L) 83 mm x 170 mm...
  • Page 70 6-4. SlimPOS ATOM specification Chipset Intel Atom 945GC with ICH7 Dual-Core Intel Atom 1.6GHz x 2 SATA 2.5inch (Default 120GB) DDR2 DIMM 512MB (up to 2GB) Intel Graphics Media Accelerator 950 Display 15 inch TFT LCD with 5-wire resistive Touch Screen 1024 X 768 resolution 4 Ports (3 ports reserved for Touch controller, SCR EMV card and MSR controller) Internal I/O RS-232...
