M420SV / M47OSV/ M550SV

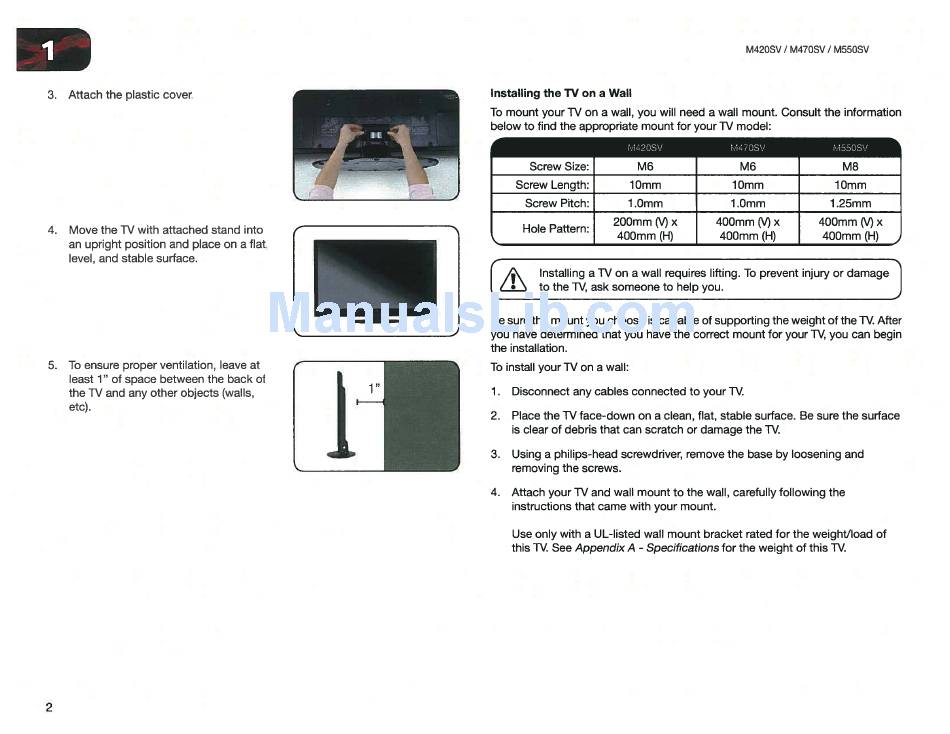

installing the TV on a Wall
To mount your TV on a wall, you will need a wall mount. Consult the information
below to find the appropriate mount for your TV model:
3. Attach the plastic cover.
l\.Ii4:2OS\./ ivl47OS\./ lvl55OSV
Screw Size: Till
ScrewLen9th= 10mm
Screw Pitch
200 400 400
4. Move the TV with attached stand into Hole Pattern: 40;?" 40;)?" 406:'
an upright position and place on a flat,
level, and stable surface.
A Installing a TV on a wall requires lifting. To prevent injury or damage
to the TV, ask someone to help you.
Be sure the mount you choose is capable of supporting the weight of the TV. After
you have determined that you have the correct mount for your TV, you can begin
the installation.
5. To ensure proper ventilation, leave at
least 1" of space between the back of
the TV and any other objects (walls,
etc).
To install your TV on a wall:
1. Disconnect any cables connected to your TV.
2. Place the TV face-down on a clean, flat, stable surface. Be sure the surface
is clear of debris that can scratch or damage the TV.
3. Using a philips-head screwdriver, remove the base by loosening and
removing the screws.
4. Attach your TV and wall mount to the wall, carefully following the
instructions that came with your mount.
