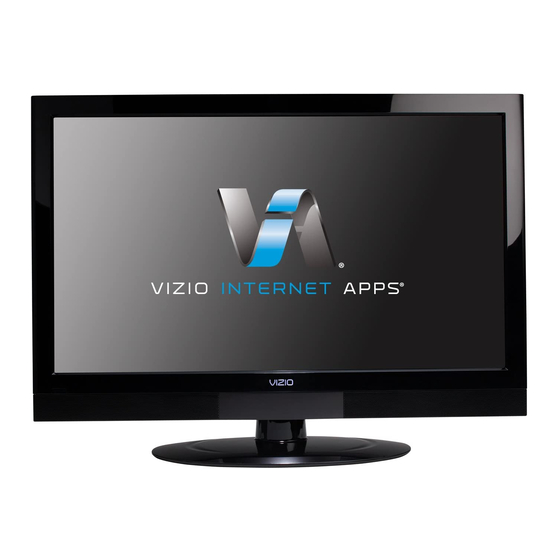

- Page 1 LCD HDTV WITH VIZIO INTERNET APPS ® M420SV / M470SV / M550SV QUICK START GUIDE...
-
Page 2: Package Contents
PACKAGE CONTENTS VIZIO LCD HDTV with Base Remote Control with Cleaning Cloth Safety Cable Power Cord User Manual and Batteries Quick Start Guide... -
Page 3: Using The Remote
Mute Number Pad Wide QWERTY Keypad Arrow Power/Standby: Turn the TV on or off. Power/Standby App Launcher: Launch the VOD (VIZIO On-Demand), Netflix, or A/V Controls A/V Controls: Control external device (CEC-enabled devices only). Info Menu Arrow Guide VIA Shortcuts... -
Page 4: Installing The Base
INSTALLING THE BASE Place the TV screen-down on a clean, flat surface. Use a phillips-head screwdriver to tighten the 4 screws. To prevent scratches or damage to the screen, place the TV on a soft surface, such as carpet, rug, or blanket. Push the base into the hole on the bottom of the TV. - Page 5 Attach the plastic cover. Move the TV with attached base into an upright position and place on a flat, level, and stable surface.
-
Page 6: First Time Setup
FIRST-TIME SETUP Remove the battery cover by pressing gently and sliding away Connect the power cord to the back of the TV. from the remote. Plug the power cord into an electrical outlet. Insert the batteries. The + and - symbols on the batteries must correspond to the + and - symbols inside the battery compartment. - Page 7 Back of TV Turn the TV on by pressing the Power/Standby button on the If you have an external antenna or a cable connection that extends from a wall outlet, connect it to the TV with an remote. RF/Coaxial cable. The Setup App is displayed.
- Page 8 Use the OK and Arrow Up/Down buttons on the remote to read Select the name of your wireless network from the list of available networks and press OK. and accept the Terms of Service and Privacy Policy for Yahoo! TV Widgets.
- Page 9 Enter your First Name, Last Name, Phone Number, ZIP Code, and Answer the on-screen questions about your TV connection using the Arrow and OK buttons on the remote. E-mail Address using the on-screen keyboard. Highlight Next and press OK. When you have finished the channel scan, highlight Exit to Live TV and press OK.
-
Page 10: Connecting Your Devices
CONNECTING YOUR DEVICES To get the best high-resolution picture and sound on your new VIZIO TV, connect your devices with an HDMI cable. VIZIO High Speed HDMI Cables are manufactured to produce the best picture on VIZIO TVs and feature: • 1080p and for full HD video and future Ultra-HD video... - Page 11 Blu-ray/DVD Player, Game Console, or other Device HDMI Best Picture CB/PB CR/PR Better Picture Good Picture VIDEO CHOOSE ONE: High Speed HDMI Cable* Component Video Cable* Audio Cable* Composite AV Cable* Back of TV HDMI CB/PB CR/PR VIDEO *Not Included...
-
Page 12: Using Vizio Internet Apps
VIZIO VIA TV. details. † For the best online experience, VIZIO recommends the next-generation XWR100 Dual-Band HD Video and Wireless Internet Router. This state-of-the-art router prioritizes the sending of media files over regular data files, delivering a superior streaming experience with fewer delays. - Page 13 View Settings for Active App Exit App/Exit VIA Dock Change Screen Size Highlighted App (when VIA Sidebar is open) Move/Delete App from VIA Dock To start an App, use the Left/Right Arrow buttons to highlight an Once you have started an App, use the Arrow, OK, and VIA App from the App Bar and press OK.
-
Page 14: Help Topics
Customer support and quality service are integral parts of VIZIO’s commitment to service excellence. For technical assistance contact our VIZIO Technical Support Department via email or phone. Please have your VIZIO model number, serial number, and date of purchase available before your call. - Page 15 I cannot return to • The on-screen menu has guided setup. Press MENU, then select Help > System Reset > the Setup App. Start Setup Wizard. Enter your PIN (default is 0000). Select Yes. • Set the TV to Wide or Zoom Mode. Press MENU, then select Wide. Highlight Wide or Zoom and press OK. There are black/gray • Adjust the video settings of your external device (Blu-ray bars on the top/bottom/ • If using the RGB (computer) input, ensure you are using a supported desktop resolution.
- Page 16 TRADEMARKS SHOWN ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS. IMAGES USED ARE FOR ILLUSTRATION PURPOSES ONLY. VIZIO, THE V LOGO, WHERE VISION MEETS VALUE, AND OTHER VIZIO TRADEMARKS ARE THE INTELLECTUAL PROPERTY OF VIZIO INC. PRODUCT FEATURES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
