DISTRIBUTED BY: GP LIMITED
8/F, Enterprise Square 3, 39 Wang Chiu Road, Kowloon Bay, Hong Kong
Customer Service Representative: General Foam Plastics Corporation

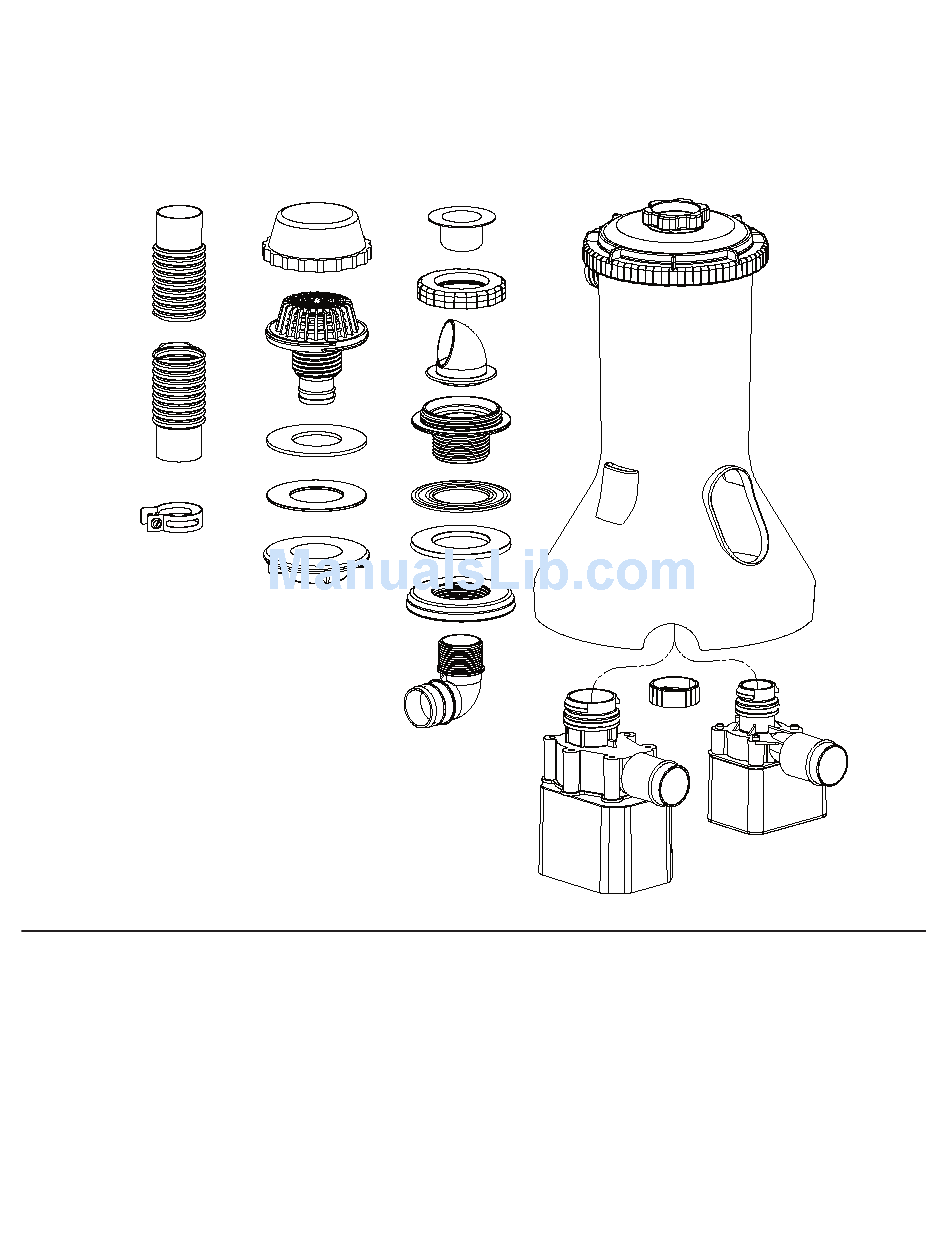

RP TYPE SWIMMING POOL FILTER SYSTEM OWNER'S MANUAL
FOR ABOVE GROUND QUICK SET
2X
4X
____________________2
________________________2
____________________6
____________________7
ASME C
S
OMPLIANT
UCTION
ATTENTION CUSTOMER: STATEMENT OF LIMITED WARRANTY
GP Limited warrants to the original purchaser only, the RP Type Power Filter against defects in material and work-
manship, as follows:
1) GP Limited warrants to the original purchaser, the RP Type Power Filter against defects in material and work-
manship for 180-days from the date of purchase. Original Purchaser must retain proof of such purchase in the
form of a store sales receipt and must produce such upon request by GP Limited or its customer service repre-
sentative, General Foam Plastics Corporation at (800) 813-0206.
2) You should first consult the Trouble Shooting guide for a simple solution, page #8. If still unable to correct the
situation, please contact customer service representative General Foam Plastic's customer service at (800) 813-
0206. Do not return your pool or parts to the place of purchase. A knowledgeable customer service representative
will assist you in resolving the problem and arrange replacement of defective parts, if needed.
If the unit is found to have been consumer damaged or abused, it is not covered by the limited warranty. If this is
the case, you will be advised of the cost of replacement part(s), or the need to return damaged part(s) for warranty
replacement.
(800) 813-0206 • www.GENFOAM.com
_______2
_____________6
_______________8
_____________8
F
I
___9
ITTING
NFO
SWIMMING POOLS
®
F1000C / F1500C / F2000C
F600C & F700C
084-120815
2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RP600 and is the answer not in the manual?

Questions and answers

Related Manuals for Polygroup RP600

Summary of Contents for Polygroup RP600

  • Page 1: Table Of Contents

    DISTRIBUTED BY: GP LIMITED 8/F, Enterprise Square 3, 39 Wang Chiu Road, Kowloon Bay, Hong Kong Customer Service Representative: General Foam Plastics Corporation (800) 813-0206 • www.GENFOAM.com RP TYPE SWIMMING POOL FILTER SYSTEM OWNER’S MANUAL FOR ABOVE GROUND QUICK SET SWIMMING POOLS ®...

  • Page 2: Ul Important Safety Instructions

    4. The RP Type pump/filter systems are manufactured by Dongguan Polyfilm Plastic Products Co. Ltd. and UL Listed (file #E307476) - double insulated and grounded - 115 V.A.C. - 60 Hz. (ALL Units must have a minimum of 105 V.A.C. to start and run properly.) RP600 Filter System with F600C Pump 46 watts 0.8 amps 580 G.P.H.
  • Page 3 KEY DESCRIPTION PUMP BODY W/CORD ROTOR ASSEMBLY MAGNET AXLE IMPELLER SHAFT THE FILTER CARTRIDGE (15) WILL HOLD 1” THRUST WASHERS DIAMETER CHLORINE TABLETS. CHECK SHAFT END CAPS LIBERALLY YOUR CHLORINE LEVELS TO DETERMINE PUMP GASKET LUBRICATE VOLUTE HOUSING THE PROPER NUMBER OF TABLETS TO ADD. THE O-RINGS O-RING (On Volute Housing) PHILLIPS HEAD SCREWS...
  • Page 4 1. POWER FILTER INSTALLATION: ( Reference Page 3, Fig. 1) WARNING EXTREMELY IMPORTANT! • Risk of electrical shock, connect only to a grounding type receptacle protected by a ground fault circuit interrupter, (GFCI). Contact a qualified electrician if you cannot verify that the receptacle is protected by a GFCI. •...
  • Page 5 E. Slip both of the remaining Hose Clamps (14) over the ends of the two hoses. Lubricate O-rings (24) on the wall fittings liberally with petroleum jelly then connect the hoses to the Suction and Return wall fittings located on the side of the pool.

  • Page 6: Filter Cartridge Cleaning

    C. Test water and adjust as needed, see “POOL WATER CARE”, page #7. VERY IMPORTANT – PUMP AND FILTER ALONE WILL NOT PREVENT ALGAE FROM GROWING IN POOL WATER; THIS CAN ONLY BE DONE BY MAINTAINING PROPER CHLORINE AND pH LEVELS AT ALL TIMES! D.

  • Page 7: Pool Water Care

    POOL WATER CARE 1. The following items are required and readily available from your local pool supply store: A. TEST KIT - Used to check chlorine and pH levels. B. 1” CHLORINE TABLETS - Used to disinfect pool water and help control the growth of algae. C.

  • Page 8: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE DISCONNECT ELECTRICAL CORD BEFORE TROUBLESHOOTING FILTER SYMPTOM PROBLEM POSSIBLE SOLUTION 1 Motor fails to start or A Unit Not Plugged In A Unit must be plugged into a 3-wire grounded outlet with a GFCI type circuit breaker. B GFCI Breaker Tripped B Reset circuit breaker.
  • Page 9 PSF-100A AND PSF-100B SUCTION OUTLET FOR ABOVE GROUND POOL IMPORTANT SAFETY INSTRUCTIONS (1) READ AND FOLLOW ALL INSTRUCTIONS (2) This is a submerged suction outlet for use with above ground swimming pool. (3) For single drain only. Use only ONE outlet for each pump. (4) Do not locate this suction outlet on sitting areas or on the backrest for such seating area.
