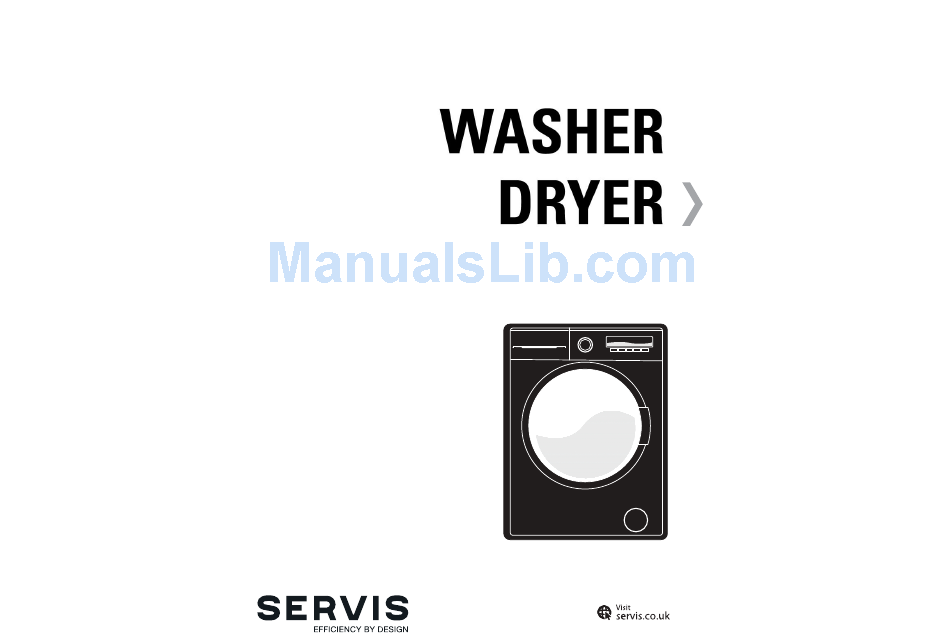

- Page 1 User Manual Model Number: WD7512F4W LD752W Customer Support Helpline 0333 577 7232...
-
Page 2: Table Of Contents
Contents Welcome Safety Instructions Your Washer Dryer Technical Specifi cation Installation Usage Maintenance Clothing Care Troubleshooting Guarantee Index T: 0333 577 7232 T: 0333 577 7232... -
Page 3: Welcome
SAFETY INSTRUCTIONS WELCOME ITEMS INCLUDED Thank you for choosing this Servis Washer Dryer, which has been designed and manufactured to give you many years of trouble-free service. Washer Dryer You may already be familiar with using a similar product but please take time to read these Blanking caps x 4 instructions, which have been written to ensure you get the very best from your purchase. - Page 4 Do not connect your Washer Dryer to the mains electricity supply using an extension lead. Do not make any alterations to your Washer Dryer, unless authorised to do so by Servis. A damaged power cord/plug can cause fire or give you an electric shock. When damaged it must be replaced, this should only be done by qualified personnel.
- Page 5 SAFETY INSTRUCTIONS Do not climb on your Washer Dryer. Do not touch the door, drain hose or any discharged water while your Washer Dryer in running. The high temperatures involved pose a burn risk. Do not turn your Washer Dryer upside down or on its side. Do not use a detergent ball/device if you have selected a washing and drying programme as Do not lift your Washer Dryer using the door or detergent drawer.
-
Page 6: Your Washer Dryer
YOUR WASHER DRYER FRONT VIEW REAR VIEW Detergent drawer Programme dial Drain hose Control panel Cotton Wash & Dry Cotton Display Functions Quick Wash & Dry Cotton Eco Cotton Dry Eco 20°C Gentle Dry Synthetics Daily Fast Cold water Wool 60' 60 C Temp Spin... -
Page 7: Technical Specifi Cation
YOUR WASHER DRYER TECHNICAL SPECIFICATION DETERGENT DRAWER TECHNICAL SPECIFICATION Compartment Main Wash Voltage V/Frequency (Hz) 220-240V/50Hz Compartment Electrical Current (A) Power Rating (W) 2200 Water Consumption (l/Cycle) (Washing, Spinning and Drying) Energy Consumption(kWh/Cycle) 5.67 Pre-Wash (Washing, Spinning and Drying) Compartment Energy Consumption(kWh/Cycle) 1.23 (Washing and Spinning only) -
Page 8: Installation
INSTALLATION Pull out the remaining plastic section of each transit bolt by hand. This will require a INSTALLATION REQUIREMENTS reasonable amount of force (fig 5c). Insert the blanking caps (4 off): Push the cap into the hole until the four connectors click into place. - Page 9 INSTALLATION ADJUSTING THE FEET WATER SUPPLY CONNECTION For safe operation, it is important that your Washer Dryer is level and securely positioned on all Your Washer Dryer uses an energy efficient cold fill system, which means that only the water four feet.
- Page 10 INSTALLATION WATER SUPPLY CONNECTION Screw the straight end of the hose clockwise to a 19mm (3/4’’) cold water tap until hand tight (fig 8). Take care not to trap or kink the hose. a: The drain hose can be connected Max height 80cm to a standpipe, as shown.
-
Page 11: Electrical Connection
INSTALLATION ELECTRICAL CONNECTION The cold water pressure for a normal household system ranges from between 0.1 to 1 MPa. Your Washer Dryer will run at optimum efficiency in this range. Your Washer Dryer requires a 220-240V, 50Hz mains supply. Do not use any other supply. Once you have made all of the connections, carefully turn your cold water supply on and check Your Washer Dryer may be fitted with a moulded plug, which cannot be rewired. -
Page 12: Usage
USAGE CONTROL PANEL OVERVIEW RUNNING YOUR FIRST WASH Before using your Washer Dryer for the first time; check that: The transit bolts have been removed. Your Washer Dryer has been correctly connected to your water supply and your water drainage system. Cotton Wash &... - Page 13 USAGE Close zips and fasten any hooks and eyes. Gently push the door until it clicks shut. Check that no items of clothing are trapped Items such as trousers, t-shirts, sweat shirts and knitted garments should be turned inside between the rubber seal and the door. out.
- Page 14 USAGE It is possible to use fluid detergents in all programmes without a pre-wash. To do this, slide the Water Softener: fluid detergent level plate into the guides in compartment II of the detergent drawer (fig 11). Use the lines on the plate as a guide to fill the drawer to the required level. A water softener can be used to reduce the amount of detergent required in hard water areas.
- Page 15 USAGE Starting a Programme: Heavily Soiled Washing: Recommended Programmes: 1 and 3 These programmes are ideal for washing and drying heavily soiled cottons and synthetics and To start the selected programme, press the Programme Start/Pause button. are capable of removing stubborn dirt and stains. Wash Level Display: Delicate Washing: Recommended programmes 5 and 8 Delicate Drying: Recommended programme 12...
- Page 16 USAGE 1. Cotton 3. Eco 20 Selectable Washing Temperatures ( -- , 30 , 40 , 50 , 60 , 70 , 80 , 90 Selectable Washing Temperatures ( -- , 20 Maximum Washing/Drying Capacity (kg) 7.0/5.0 Maximum Washing/Drying Capacity (kg) 3.5/3.5 Detergent Drawer Detergent Drawer...
- Page 17 USAGE 5. Wool 7. Rinse Selectable Washing Temperatures ( -- , 30 Selectable Washing Temperatures ( Maximum Washing Capacity (kg) Maximum Washing/Drying Capacity (kg) 7.0/5.0 Detergent Drawer Detergent Drawer Laundry Type/Descriptions Woollen and wool mix laundry with machine Laundry Type/Description This programme can be used for additional washable labels rinsing after washing.
- Page 18 USAGE 9. Spin 11. Daily Fast 60’ 60 Selectable Washing Temperatures ( Selectable Washing Temperatures ( --, 30 , 40 , 50 , 60 Maximum Washing/Drying Capacity (kg) 7.0/5.0 Maximum Washing/Drying Capacity (kg) 3.0/3.0 Detergent Drawer Detergent Drawer Laundry Type/Descriptions This programme can be used for additional Laundry Type/Description Dirty, cotton, coloured and linen textiles.
- Page 19 USAGE 13. Cotton Dry 15. Cotton Wash & Dry Selectable Drying Temperatures ( Selectable Washing Temperatures ( --, 30 , 40 , 50 , 60 , 70 , 80 , 90 Maximum Drying Capacity (kg) Maximum Washing/Drying Capacity (kg) 5.0/5.0 Detergent Drawer Detergent Drawer Laundry Type/Descriptions...
- Page 20 USAGE Dry Level Selection: Temperature Selection: If you would like your laundry dried at the end of a washing programme, press the Dry Level It can often be difficult to know which temperature setting is best. To help with this, we have button (see page 19) to select the level you require: provided a table with common temperatures and their typical uses.
- Page 21 Dark Garments 1200 You will be pleased to learn that your Servis Washer Dryer has an in-built sensor that prevents your Washer Dryer operating with an out-of-balance load; it will make several attempts to balance the load prior to the spin cycle. If it is not possible for your Washer Dryer to balance the load, your Washer Dryer will abort the spin cycle.
- Page 22 USAGE Cancelling a Programme: Power Supply Failure: To cancel a programme while it is running: If a power cut should occur while a programme is running, the programme will continue from the same point once power is restored. This will not cause any harm to your Washer Dryer or Turn the programme dial to the top position.
-
Page 23: Maintenance
MAINTENANCE GENERAL MAINTENANCE Filters: From time to time it may be necessary to carry out some routine maintenance of your Washer Water Inlet Filters: Dryer to ensure that it operates as intended. Before cleaning your Washer Dryer: Water inlet filters prevent dirt and foreign materials from entering your machine. It is Turn your mains power supply off and remove the plug from the socket. - Page 24 MAINTENANCE GENERAL MAINTENANCE Cleaning the Pump Filter: Clean the filter thoroughly with a soft brush, wash with soapy water and rinse thoroughly. Before opening the filter cover, place a container under the filter cover to collect any water left in the machine. Pull the top of the cover forwards using the finger groove, until the Re-insert the filter by gently pushing it back into place.
- Page 25 MAINTENANCE Remove any foreign materials from the filter with a soft brush. Move the pump by hand to check that it rotates freely. Clean the pump with a soft brush. After Cleaning: Re-fit the filter by inserting it and turning clockwise. Close the filter cover.
-
Page 26: Clothing Care
CLOTHING CARE SIPHON PLUG The siphon plug is located in the compartment of the detergent drawer. Remove the detergent drawer fully and pull the plug upwards. Clean the plug with a soft brush and replace, checking that it is firmly in position. GENERAL WASHING INSTRUCTIONS Drip Dry Dry Flat... - Page 27 CLOTHING CARE STAIN REMOVAL INFORMATION Mustard: If can often be hard to know the best way to treat a stubborn stain. To help with this we’ve Apply glycerine to the stained area, rub with detergent and hand wash. provided you with a few tips on dealing with the most common types before running your wash cycle.
-
Page 28: Troubleshooting
The table on page 56 instructions will provide you will more information. If your machine has developed a fault not covered in this manual, please contact the Servis The door is not shut properly Check that the door ‘clicks’... - Page 29 TROUBLESHOOTING Fault Possible Cause Solution Fault Possible Cause Solution Your Washer Dryer is There is too much laundry in Check that the maximum The washing result is not as Your laundry is too dirty Use the information on pages vibrating your Washer Dryer capacity of your Washer expected...
- Page 30 The most common failure codes are shown below. If your appropriate programme machine displays a code not shown, or if the problem persists after you have taken corrective action, consult the Servis helpdesk. There is too much laundry in Check that the maximum...
-
Page 31: Guarantee
The Servis guarantee is not transferable. break the door hinges or lock. For your Servis guarantee to be valid, you will need to retain your original purchase receipt and be able to provide it when you make a claim. The above summary does not include all of the terms and conditions and exclusions which can Please refer to the rear cover for disposal instructions. -
Page 32: Index
INDEX Adding detergent ..........22 Fabric conditioner ..........24 Power supply failure ........40 Technical specification .........10 A djusting the feet...........13 Feet, adjustment ...........13 Preparing your laundry ........20 Temperature selection ........36 Allergy Safe ...........30 Filters .............42 Programme end ..........39 Transit bolt, re-fitting ........12 First wash ............20 Programme modes ........27 Transit bolt, removal ........11... - Page 33 T: 0333 577 7232 E: info@servis.co.uk The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
