Meter serial number

The Meter serial number is derived as shown below:
Example:
STS Manufacturer
Number
So the interpretation of this serial number is: the meter is a Conlog meter, made in 2002 and its
sequence number is 238425.

User interface

Meter interface

•
Keypad user interface with tactile feedback
•
A large format LCD that supports numeric, bar graphs and icons is used
•
An LED indicating the rate of consumption (Flash Rate: 1000 pulses / kWh)
•
Supports the optical and direct probe using the Meter Interrogator Kit

LCD interface

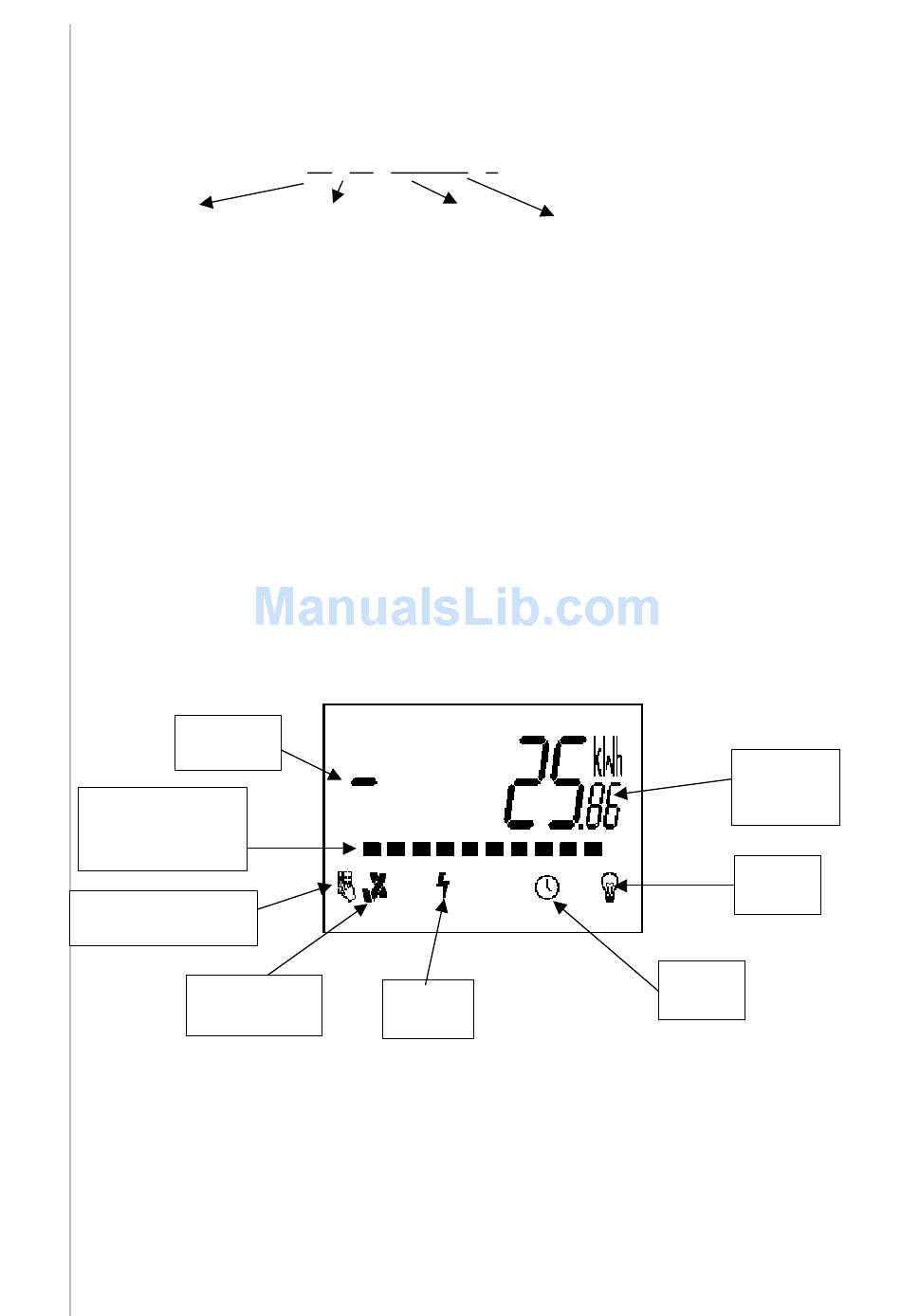

The meters' LCD interface has been standardised throughout the range of Conlog electricity meters. The
LCD display indicates credit available (in kWh), load indicator, overload indication, low credit warning,
zero credit indication, negative credit indication, wait indication, token acceptance or rejection indication,
tamper indication and special user functions. (Refer to "Special User Functions" for details)
Negative
Credit
Consumption
indicator as a % of
the maximum limit
Enter token icon /
Low credit warning
Token
Accept/Reject
10
04 12 23 8425 6
Number of years Sequential Unit
since 1990 Number made
Supply
Status
Check Digit
System
Busy
BEC23 Technical Manual
Available
credit in
kWh
Tamper
Status
