Summary of Contents for Bartscher IW 35 PRO

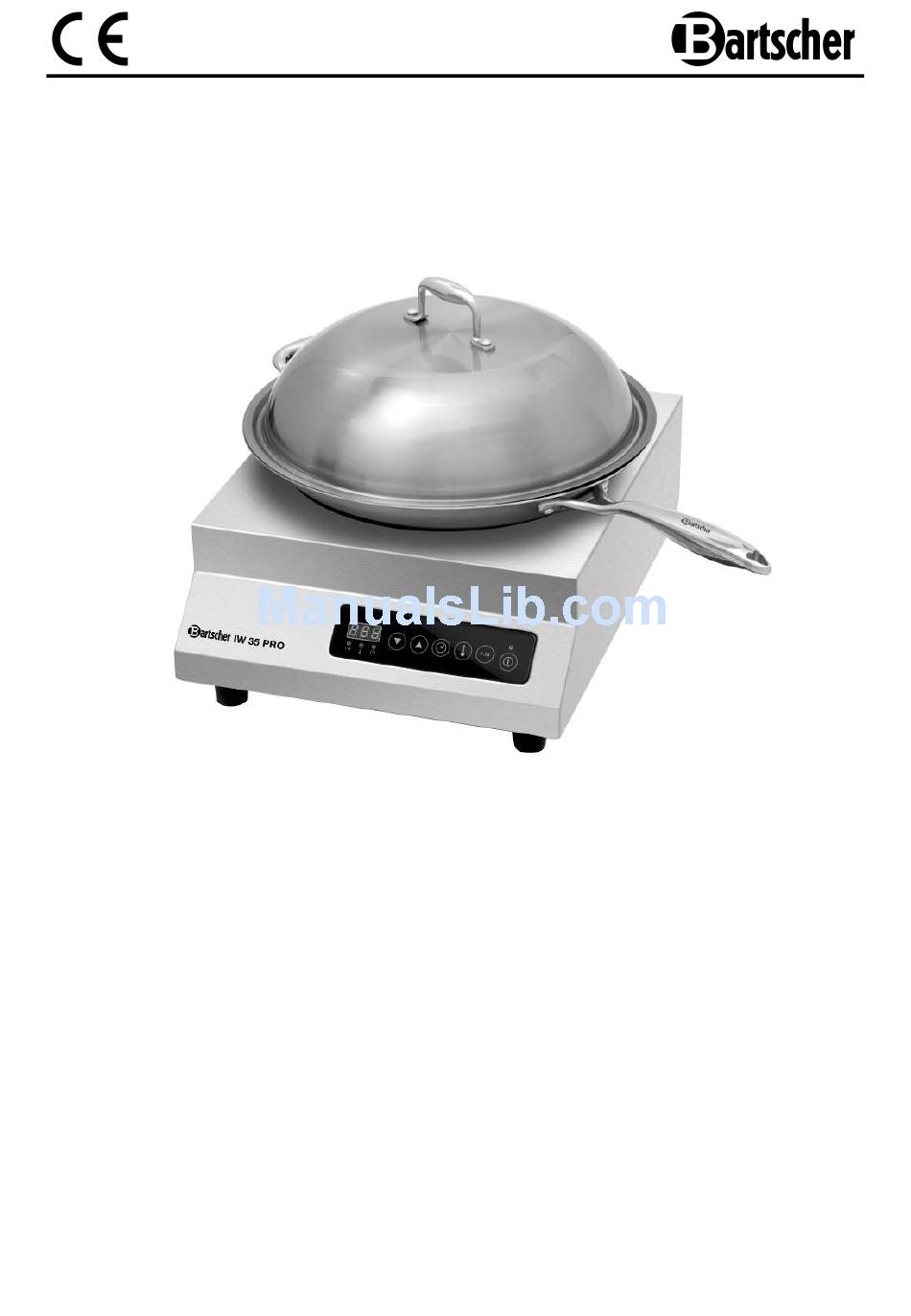

- Page 1 IW 35 PRO 105833 V2/0413...
- Page 2 IW 35 PRO 105832 V2/0413...
-
Page 3: Table Of Contents
6. Cleaning and maintenance ..................34 6.1 Safety advice ....................... 34 6.2 Cleaning ......................34 6.3 Safety instructions for maintenance ..............35 7. Possible Malfunctions .................... 35 8. Waste disposal ......................36 Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:... -
Page 4: General Information
1. General information 1.1 Information about the instruction manual This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 5: Liability And Warrantees
1.3 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 6: Safety
2.Safety This section provides an overview of all important safety aspects. In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols. Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility. -
Page 7: Intended Use
CAUTION! o The device can be used by children 8 years and up, as well as by people with disabilities and those with limited experience/knowledge as long as they are under supervision or have been instructed on proper use of the device and its possible dangers. -
Page 8: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 9: Technical Data
4. Technical data 4.1 Technical specification Name Induction wok IW 35 PRO 105832 Article no. Housing: stainless steel, Version Heating surface: Schott Ceramic, Ø 300 mm Power levels: 10 (400 – 3500 W) Temperature range: 60 ° C to 240 ° C Time setting range 5 –... - Page 10 Touch control panel with digital display ① ⑤ ⑦ ⑥ ② ③ ④ ⑪ ⑨ ⑩ ⑧ ① Digital display Down button : use to reduce cooking time, ② temperature and power level Up button : use to increase cooking time, ③...
-
Page 11: Installation And Operation
5. Installation and operation 5.1 Functionality of induction cookers With induction cooker, an electric voltage is applied on a conductor spool beneath the glass. This creates magnetic fields, which directly heat up the bottom of the cookware through a physical effect. This means saving time and energy, because contrary to common hotplates, the cookware is heated up, not the heating element and the glass. -
Page 12: Safety Instructions
5.2 Safety instructions WARNING! Risk of electric shock! The device must only be connected to a properly installed single socket with protective contact. Never remove the power cable by pulling the cable itself; always grab the plug housing. • Never allow the power cable to come into contact with heat sources or sharp edges. The power cable should not hang over the side of the working surface. - Page 13 • We recommend not placing any metal kitchen utensils, cookware or pan lids, knives or other metal objects on the cooking zone. These may heat up when the device is turned on. • Remember that items of jewelry such as rings, watches etc. can get hot if they are close to the heating surface.
-
Page 14: Appropriate Cookware
Use only round woks made of steel, stainless steel or another material intended for induction heating (follow the cookware manufacturer's instructions). NOTE! For proper functioning, the wok should have a magnetic bottom (the magnet must be fixed permanently). Bartscher e.g. wok from • stainless steel • cold handles • capacity: 5 liters •... -
Page 15: Operation
• Do not place the induction cooker next to devices or objects, which react sensitively to magnetic fields (e.g. radios, TVs, etc.). • The device is not adaptable for use with an external timer or remote control. • The electrical circuit in the socket must be secured to at least 16A. Only connect the device directly to the wall socket;... - Page 16 1. Power setting • Press the button one time. • The digital display will show the factory setting of "5", and the unit will come on. The STANDBY indicator will remain on. • Use the buttons to change the settings for (400 –...
- Page 17 Minute timer After the operation mode is selected (power level or temperature level), press the button. The digital display will read "0" and the LED time setting button will light up. Use the buttons to set the working time at 5-minute intervals (max. 120 minutes). Cooking time is counted in minutes, and the digital display will revert to the previous value shown (power or temperature level).
-
Page 18: Cleaning And Maintenance
6. Cleaning and maintenance 6.1 Safety advice o Before beginning with repair or cleaning works make sure the device has been disconnected from power supply and has cooled down. o Do not use any acid agents and make sure no water ingresses the device. o To protect yourself from electric shock, never immerse the device, its cables and the plug in water or other liquids. -
Page 19: Safety Instructions For Maintenance
6.3 Safety instructions for maintenance o Inspect the power cable regularly for damage. Never use the device if the cable is damaged. If the power cable is damaged, have an authorised service center or qualified electrician replace it. o In case of damage or malfunction, please contact your stockist or our customer service centre. -
Page 20: Waste Disposal
NOTE! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:... - Page 21 Gebrauchsanleitung D /A/CH Wokpfanne Instruction for use GB/UK Wok pan Mode d’emploi F/ B/CH Poêle wok Istruzioni d’uso I/CH Padella wok Instrucciones de uso Sartén wok Manual de instruções Frigideira Gebruiksaanwijzing NL/B 105831 Wokpan Betjeningsvejledning Wokpande Инструкция по обслуживанию Сковорода вок Kullanma talimatnamesi Wok tava Instrukcja obsługi...
- Page 22 Use only soft cloths, never use any cleaning substances that may scratch the unit's surface. • After cleaning, wipe and polish the surface with a soft, dry cloth. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany...
