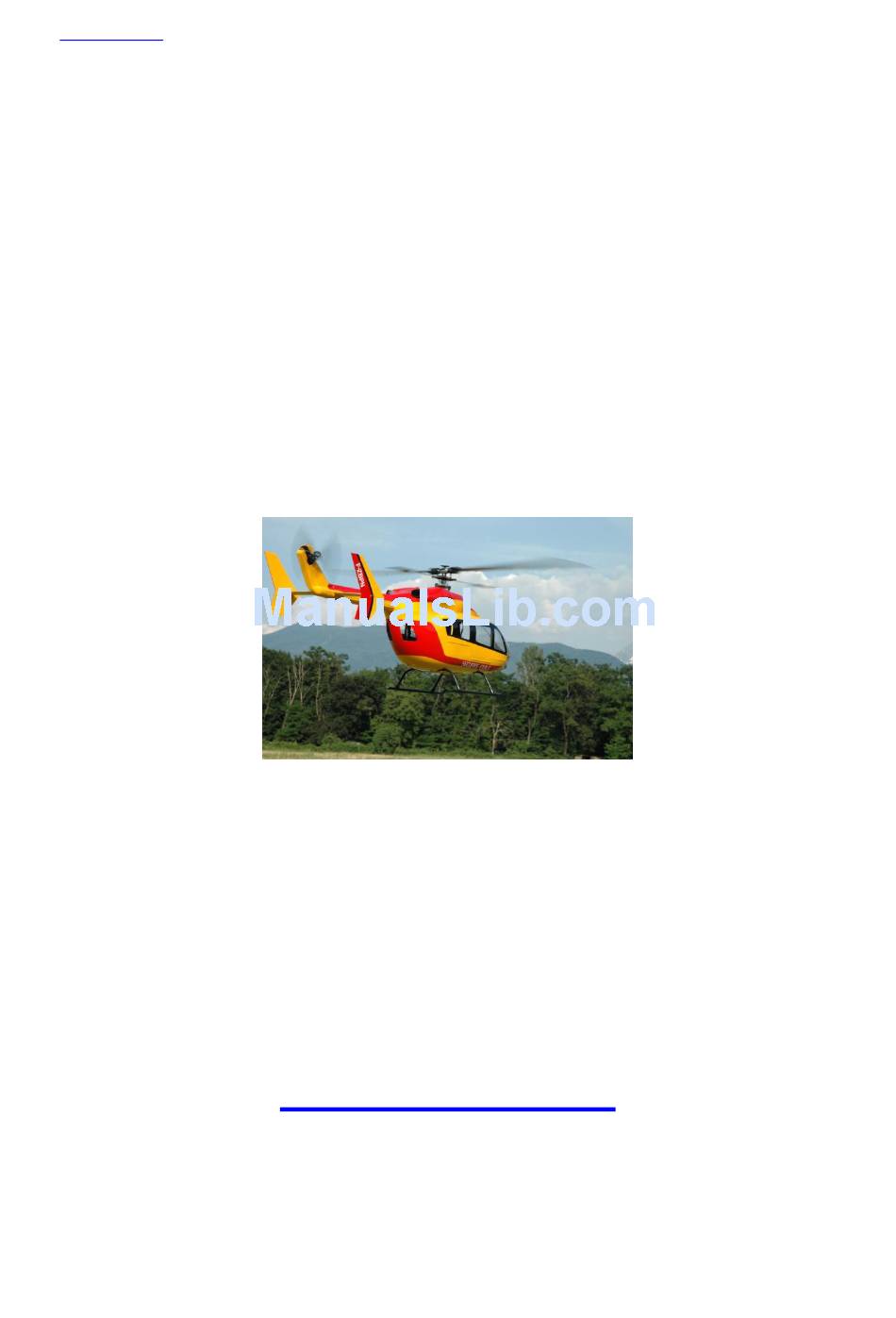

- Page 1 HELI - SCALE Copyright ® 2010 - Reproductions interdites www.heli-scale.fr Instruction manual EC-145 XL 600 size Dear customers, Thank you for purchasing our fuselage HELI – SCALE www.heli-scale.fr...
- Page 2 HELI - SCALE Copyright ® 2010 - Reproductions interdites www.heli-scale.fr IMPORTANT Thank you to please read and follow the installation instructions step by step. - Before the bonding of certain parts, they must be completely dry. - The Helicopter models are not toys: misuse of this product...
- Page 3 HELI - SCALE Copyright ® 2010 - Reproductions interdites www.heli-scale.fr Landing gear mounting Star building the landing gear. You can paint it at this moment if you need. Build the aluminium parts and drill 2 holes at 45mn from the...
- Page 4 HELI - SCALE Copyright ® 2010 - Reproductions interdites www.heli-scale.fr Tail boom mounting of the fuselage. You can glue and screw the tail boom. Drill 4 holes of 3mn. The holes must be into the wood part already installed into the main fuselage part.
- Page 5 HELI - SCALE Copyright ® 2010 - Reproductions interdites www.heli-scale.fr Stickers Settings Stick all the big stickers on the fuselage Then unstuck the white cover slowly. Do the same for the Heli ID on vertical fin. Glue the windows. Cut around windows, following the line. Lease 5mn more to glue/screw the window later.
- Page 6 HELI - SCALE Copyright ® 2010 - Reproductions interdites www.heli-scale.fr Sandpaper grained S is enough to do this Be careful a lot of cyanoacrylate glue leaves some white marks on the windows. Try it before on a small part! Elbow gear box mounting EC-145 got a specific elbow gear box.
- Page 7 HELI - SCALE Copyright ® 2010 - Reproductions interdites www.heli-scale.fr Then built the AC like on the picture. various mechanics the original AC box can you. Otherwise use the one sin CNC supply into the kit. Cut the fuselage tail boom with a tool like a “dremel”, the AC must fit perfectly.
- Page 8 HELI - SCALE Copyright ® 2010 - Reproductions interdites www.heli-scale.fr Mounting the mechanics Please prepare you mechanics: take off landing gear, tail boom support… We suggest that you have test the mechanics a lot of time in trainer mode before making the integration into the fuse.
- Page 9 HELI - SCALE Copyright ® 2010 - Reproductions interdites www.heli-scale.fr Use the CNC square on the back of your mechanics. it will elevate the back of the mechanics. The mechanics must be tilt to the front. For a n ALIGN RC T-rex 600 the back must...
- Page 10 HELI - SCALE Copyright ® 2010 - Reproductions interdites www.heli-scale.fr Use the wood skid to elevate mechanics on the back, the secure the system with 3mn screw into frame of mechanics and into main wood former. Mounting the elbow gear box belt...
- Page 11 HELI - SCALE Copyright ® 2010 - Reproductions interdites www.heli-scale.fr Pull the belt until the top of the AC and set in place the AC box. Tender the belt with pulling the AC box behind then secure it with screw. Do not tender the belt too much.
- Page 12 HELI - SCALE Copyright ® 2010 - Reproductions interdites www.heli-scale.fr Fixed the mechanics with screws of 3mn. 2 holes under the fuselage can be donned in order to access easily to the screws. Trick: You can use some washers (not supplied)
- Page 13 Enjoy you flight and think about CG before first flight! HELI-SCALE Team You can find a lot of accessories for EC-145 like scale cockpit / pilots, lightening system, 4 blades rotor head, scale blades and much more available on:...
