1. Overview

1.1 Left Panel

9

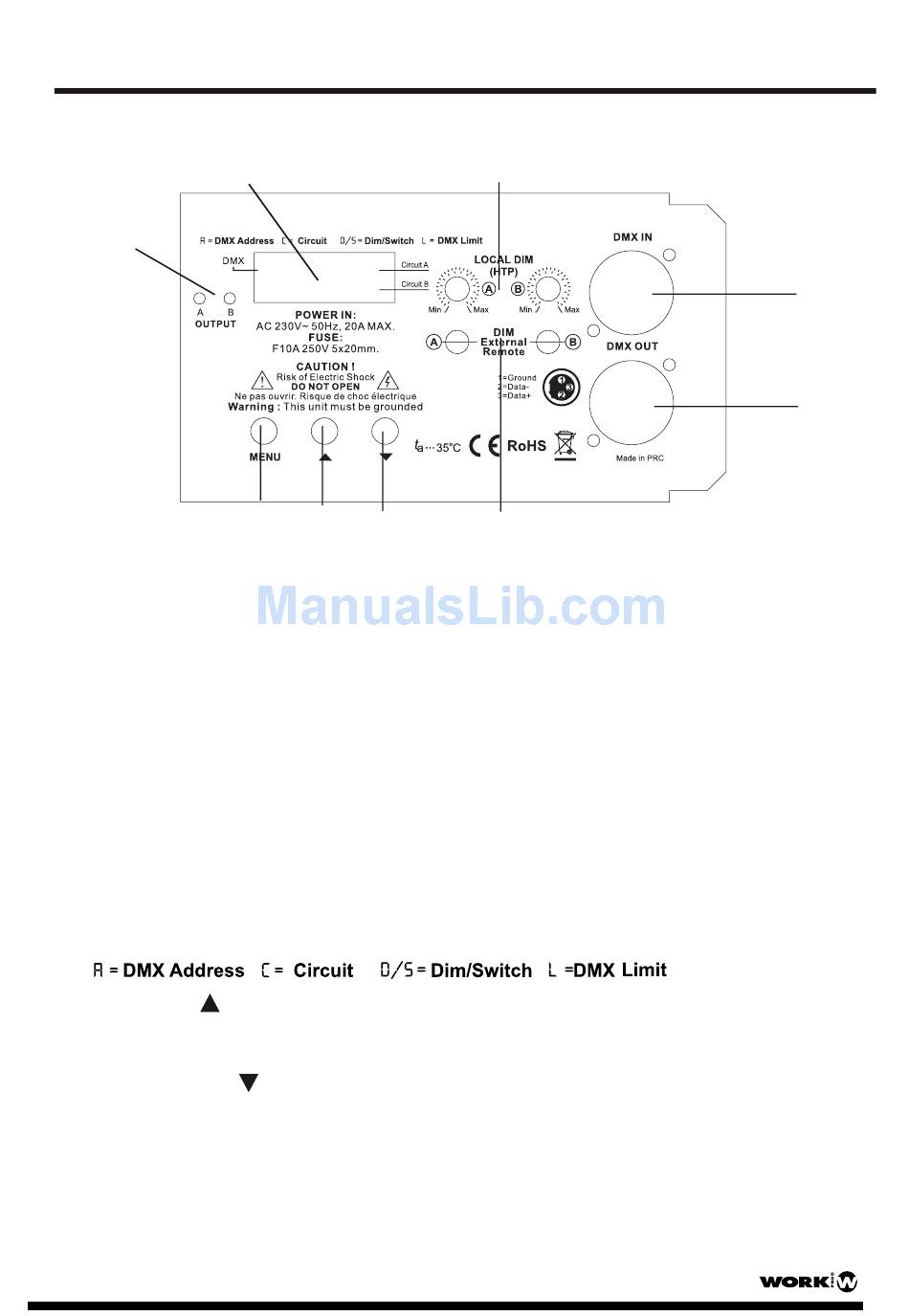

1. Segment LED Display:
To show the current DMX circuit and function mode-including a DMX signal
indicator. All set up functions are accomplished through the deisplay.
2. 3-pin XLR DMX Input connector:
This input receives DMX signal from a DMX controller or previous device.
3. 3-pin XLR DMX Output connector:
This output feeds DMX signal through to the next DMX device in line.
4. Local Dim(HTP):
To adjust channel lighting intensity and comply with HTP principle(Highest takes
precedence).
5. External Remote Jack:
For connecting the remote(Sold separately).
6. Menu Button:
Press this button to scroll through the main menus. The main menus include:
7. Up Arrow
8. Down Arrow
9. Circuit LED's (A-B): These LED's display relevant channel intensity & activity.
DUO DIM
1
6
7
8
Button: Pressing this button will increase any value listed in
the display by one. Pressing and holding this button
down will increase the displayed value quickly.
Button: Pressing this button will decrease any value
listed in the display by one. Pressing and holding
this button down will decrease the displayed
value quickly.
