Item
Power LED
Powerline LED
Ethernet LED

Note:
5 minutes after the device connected to the adapter's Ethernet port is turned off, and the adapter will
automatically switch to the power-saving mode. In power-saving mode, the Homeplug cannot be
accessed via the electrical wiring, but its integrated electrical socket can supply the power normally. As
soon as the device connected to the Homeplug is switched on again, your Homeplug will leave the
power-saving mode and the three LEDs will flash simultaneously.

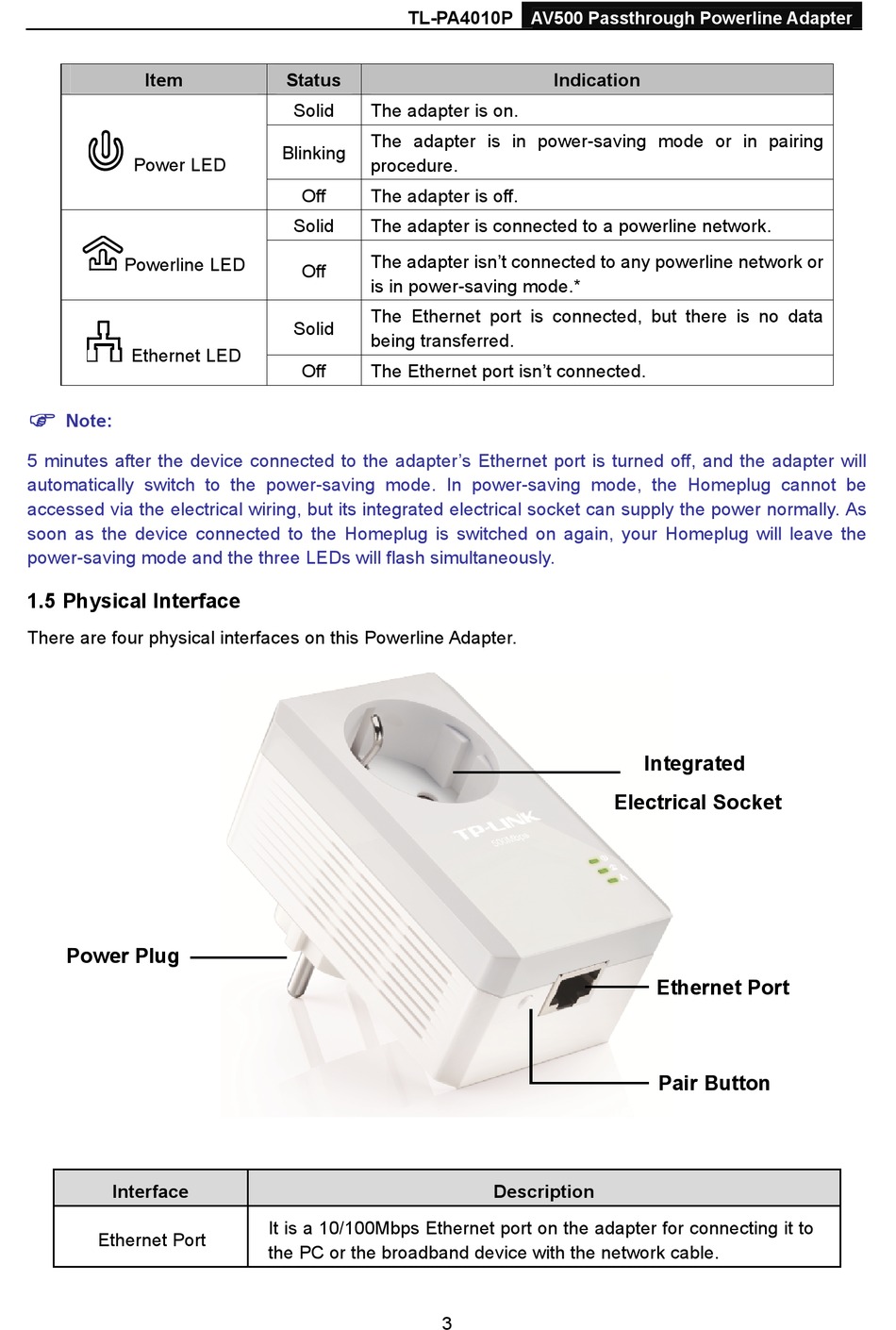

1.5 Physical Interface

There are four physical interfaces on this Powerline Adapter.
Power Plug
Interface
Ethernet Port
TL-PA4010P
Status
Solid The adapter is on.
The adapter is in power-saving mode or in pairing
Blinking
procedure.
Off The adapter is off.
Solid The adapter is connected to a powerline network.
The adapter isn't connected to any powerline network or
Off
is in power-saving mode.*
The Ethernet port is connected, but there is no data
Solid
being transferred.
Off The Ethernet port isn't connected.
It is a 10/100Mbps Ethernet port on the adapter for connecting it to
the PC or the broadband device with the network cable.
AV500 Passthrough Powerline Adapter
Indication
Description
3
Integrated
Electrical Socket
Ethernet Port
Pair Button
