Compatible Accessories - NeuroNexus SmartBox Instruction Manual

Compatible Accessories

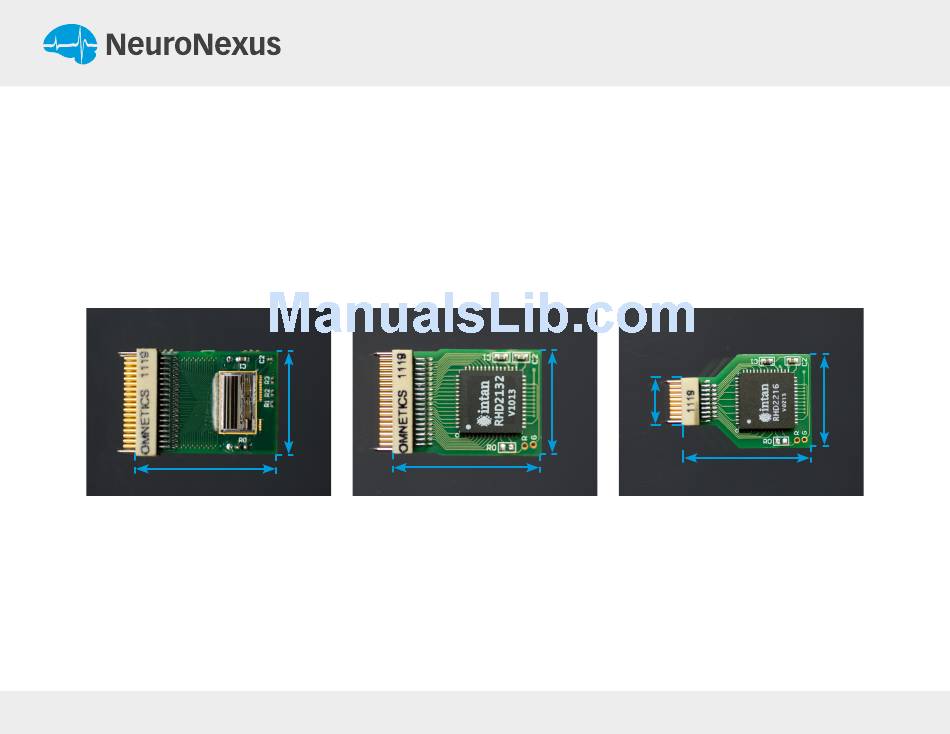

SmartLink Headstages
SmartLink headstages connect conventional probes to the SmartBox
All SmartLink headstages use on-board electronics to digitize neural signals at the implant site. This improves signal fidelity and reduces noise from cable and animal movement.
SmartLink headstages connect to the SmartBox
16.4 mm
SmartLink64
Weight: 1.27 g
Input Connector: (2x) Omnetics NPD36
(4 guide posts)
Output Connector: Micro HDMI (Do not
use with regular HDMI cable)
system. Contact us for connector options.
™
with a custom HDMI cable. (NOTE: Regular HDMI cables will not work with the SmartBox
™
Weight: 1.27g
12.6
mm
SmartLink32
Weight: 1.24 g
Input Connector: Omnetics NPD36 (4
guide posts)
Output Connector: Micro HDMI (Do not
use with regular HDMI cable)
NeuroNexus Technologies, Inc. ©2014
Telephone: +1.734.913.8858 | Fax: +1.734.786.0069 |
Weight: 1.24g
13.6
mm
19.2 mm
p.7
| 655 Fairfield Court, Suite 100, Ann Arbor, Michigan USA
support@neuronexus.com
HARDWARE
family.)
™
Weight: 1.04g
6.9
mm
18.9 mm
SmartLink16
Weight: 1.04 g
Input Connector: Omnetics NPD18 (6
guide posts)
Output Connector: Micro HDMI (Do not
use with regular HDMI cable)
13.5
mm
