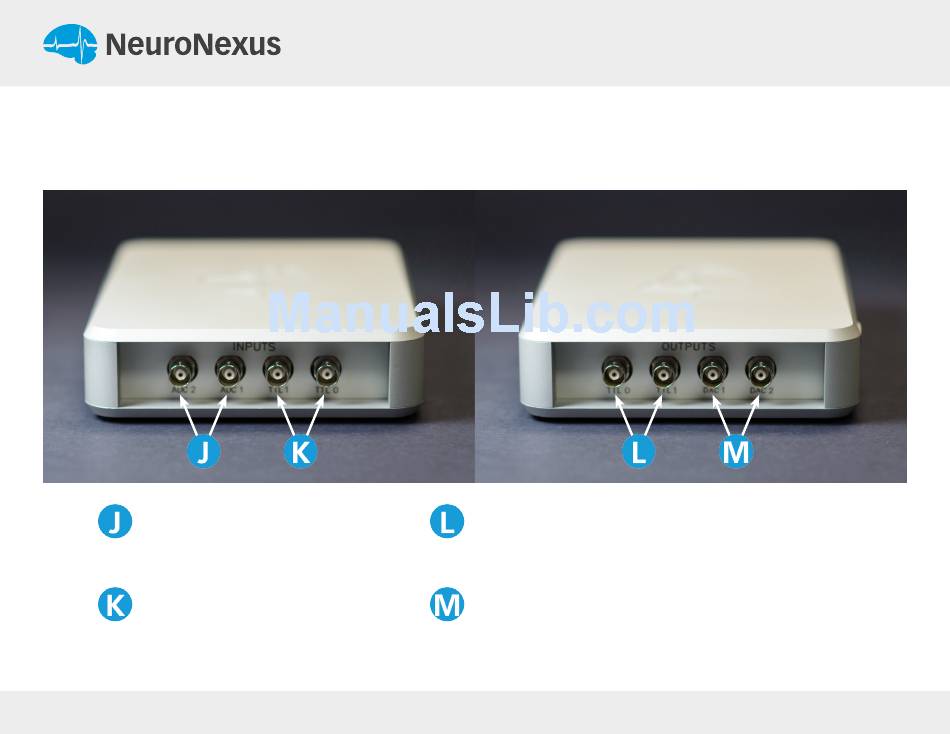

Side Outputs
2 BNC 16-bit ADC in
0 - 5 V; Sync neural signals with external
analog signals, e.g. auditory signals
2 BNC TTL in
0 -5 V; Sync neural signals with external
signals, e.g. light pulses or lever press
NeuroNexus Technologies, Inc. ©2014
Telephone: +1.734.913.8858 | Fax: +1.734.786.0069 |
2 BNC TTL out
0 - 5 V; Trigger external events based on the detection of
neural spikes.
2 BNC 16-bit DAC out
-3.3 V - +3.3 V; Reconstruct digital neural signals back to analog
for oscilloscope monitoring, or acquire with LabVIEW. Channels
selectable in software.
